Sherwood RX-4010R Digi-Line II Stereo AM/FM Receiver with Remote

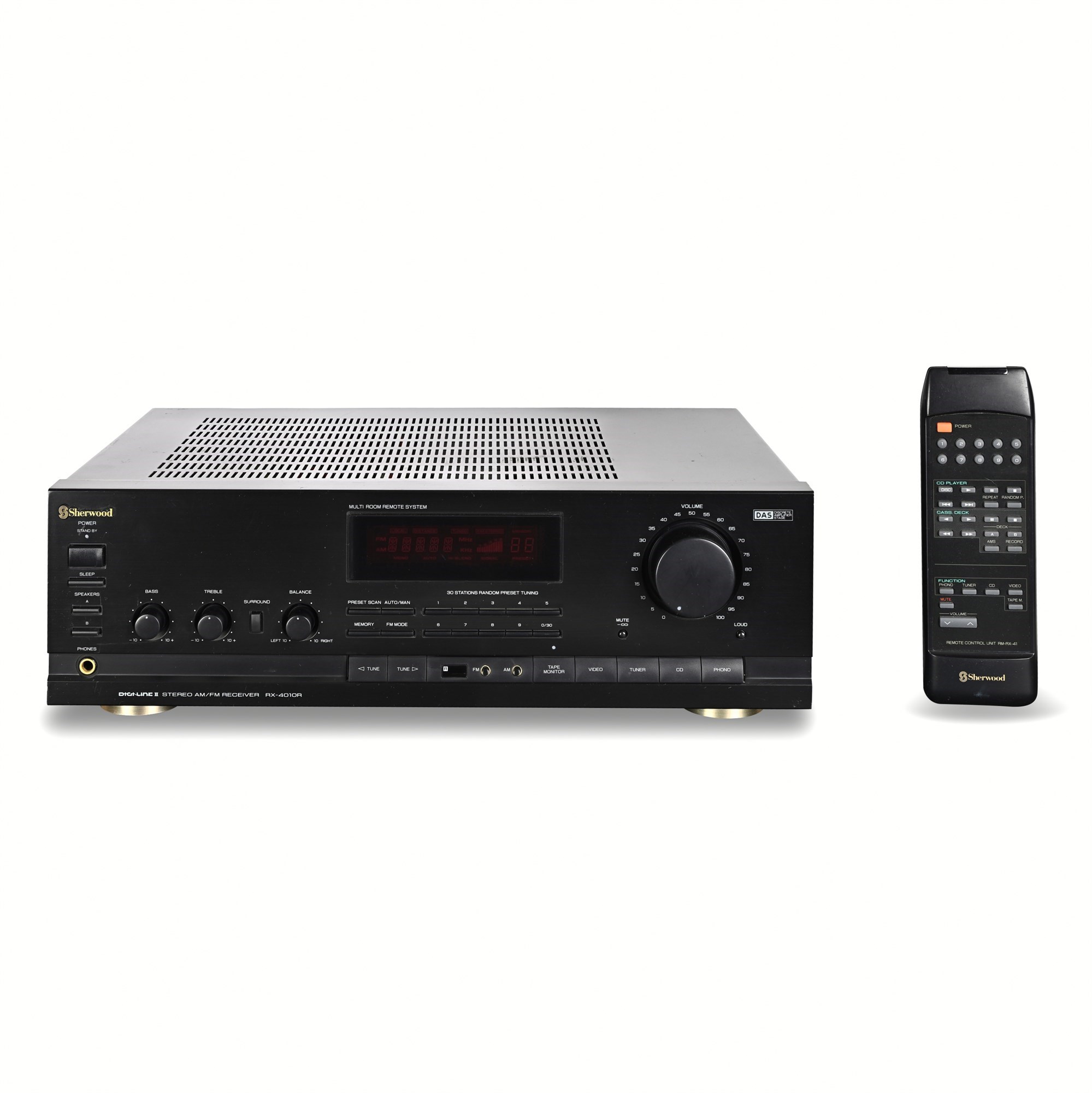

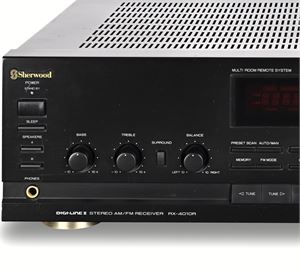

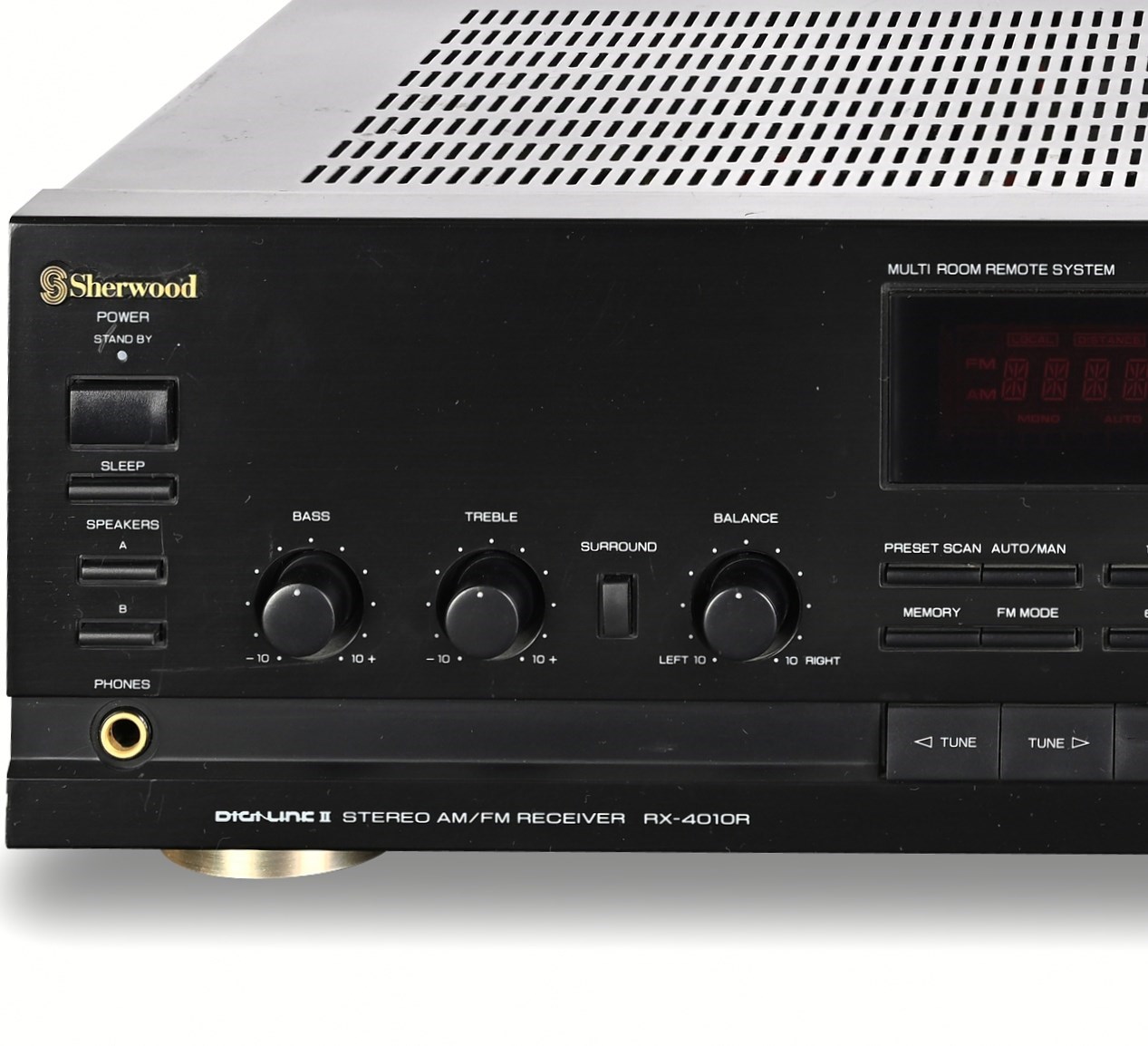

The Sherwood RX-4010R Digi-Line II is a full-featured stereo AM/FM receiver from the early 1990s, built around Sherwood's Dynamic Amplification System (DAS) output stage and Digi-Line II tuner architecture. The black-and-silver chassis presents a clean, component-rack aesthetic with discrete knobs for bass (±10 dB), treble (±10 dB), and balance, plus a surround toggle switch and large volume control. The red LED display handles station frequency readout alongside the 30-station random preset tuning system, with Preset Scan, Auto/Manual, Memory, and FM Mode controls flanking the display. Source selection spans Phono, Tuner, CD, Video, and Tape Monitor via dedicated front-panel buttons. A front-panel headphone jack and A/B speaker selector round out the front controls.

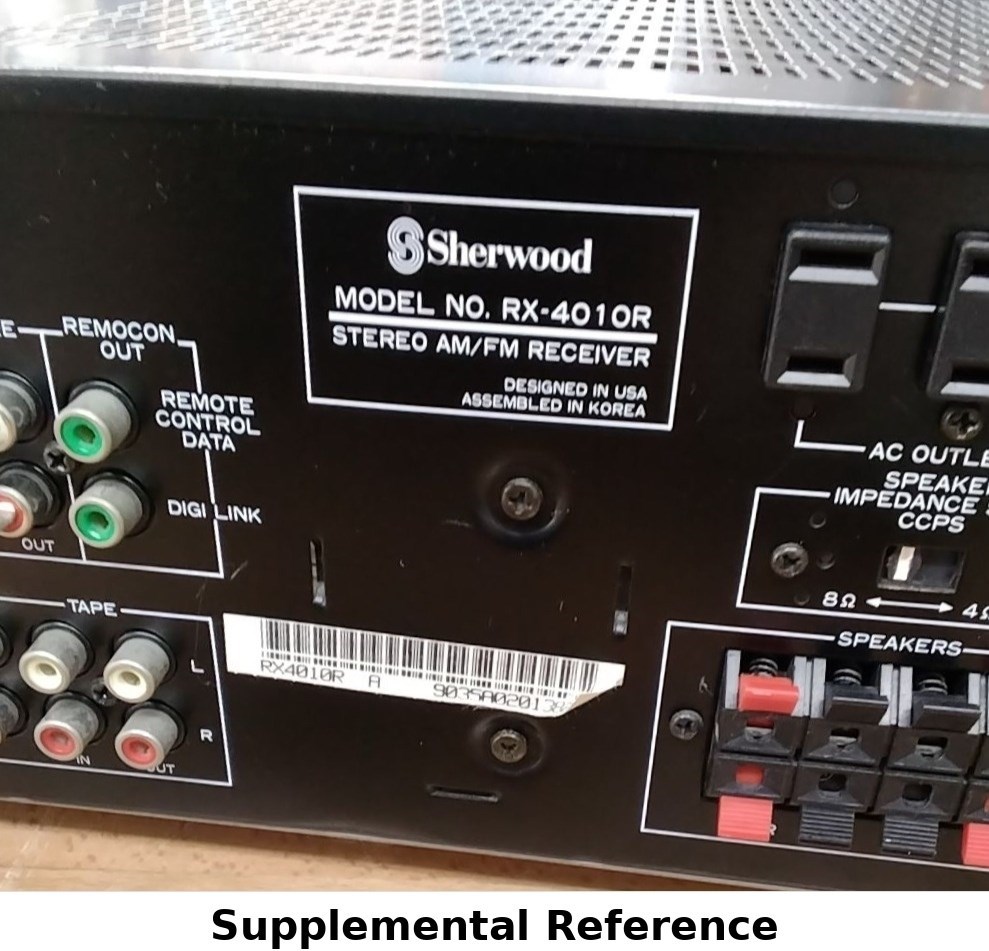

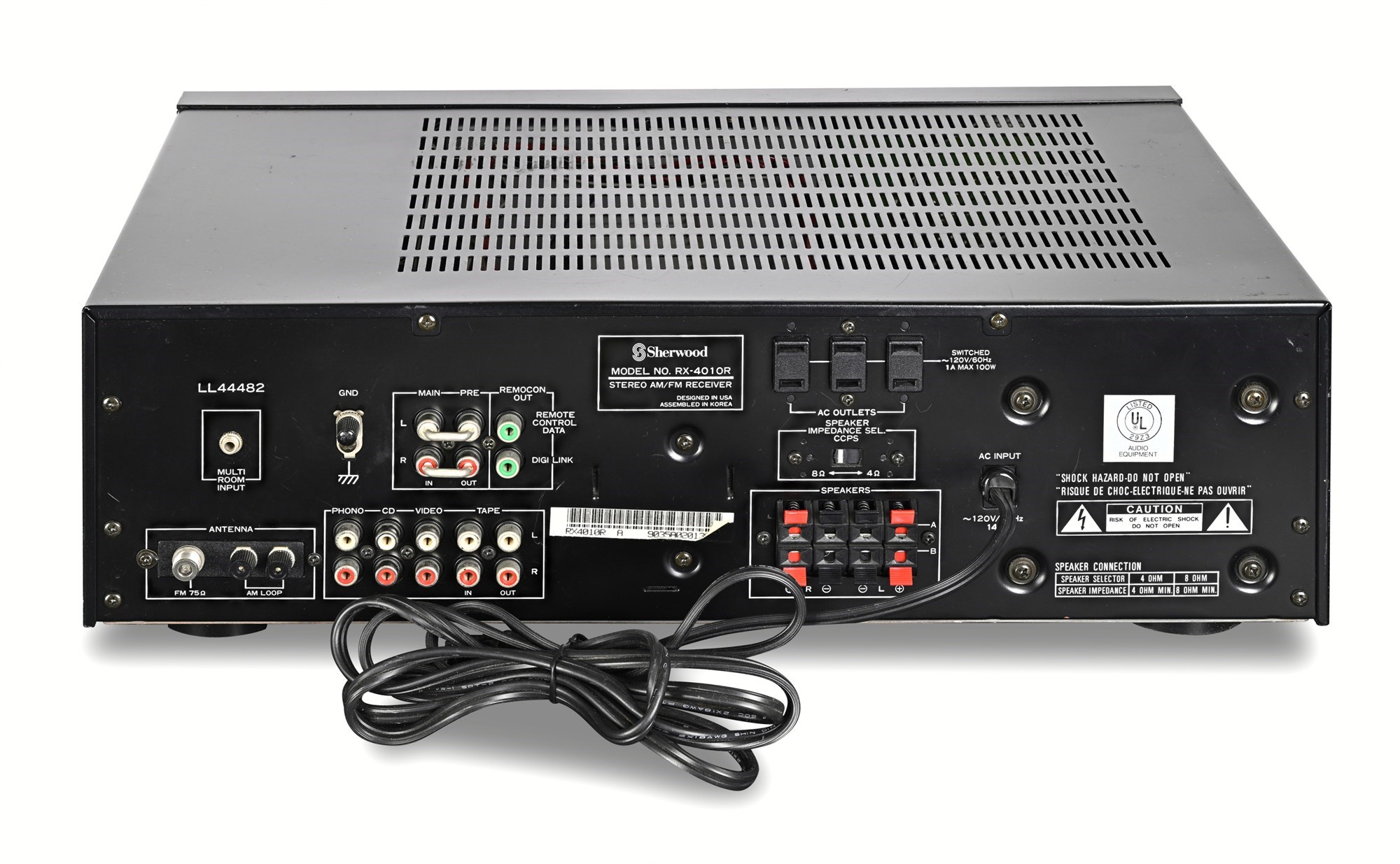

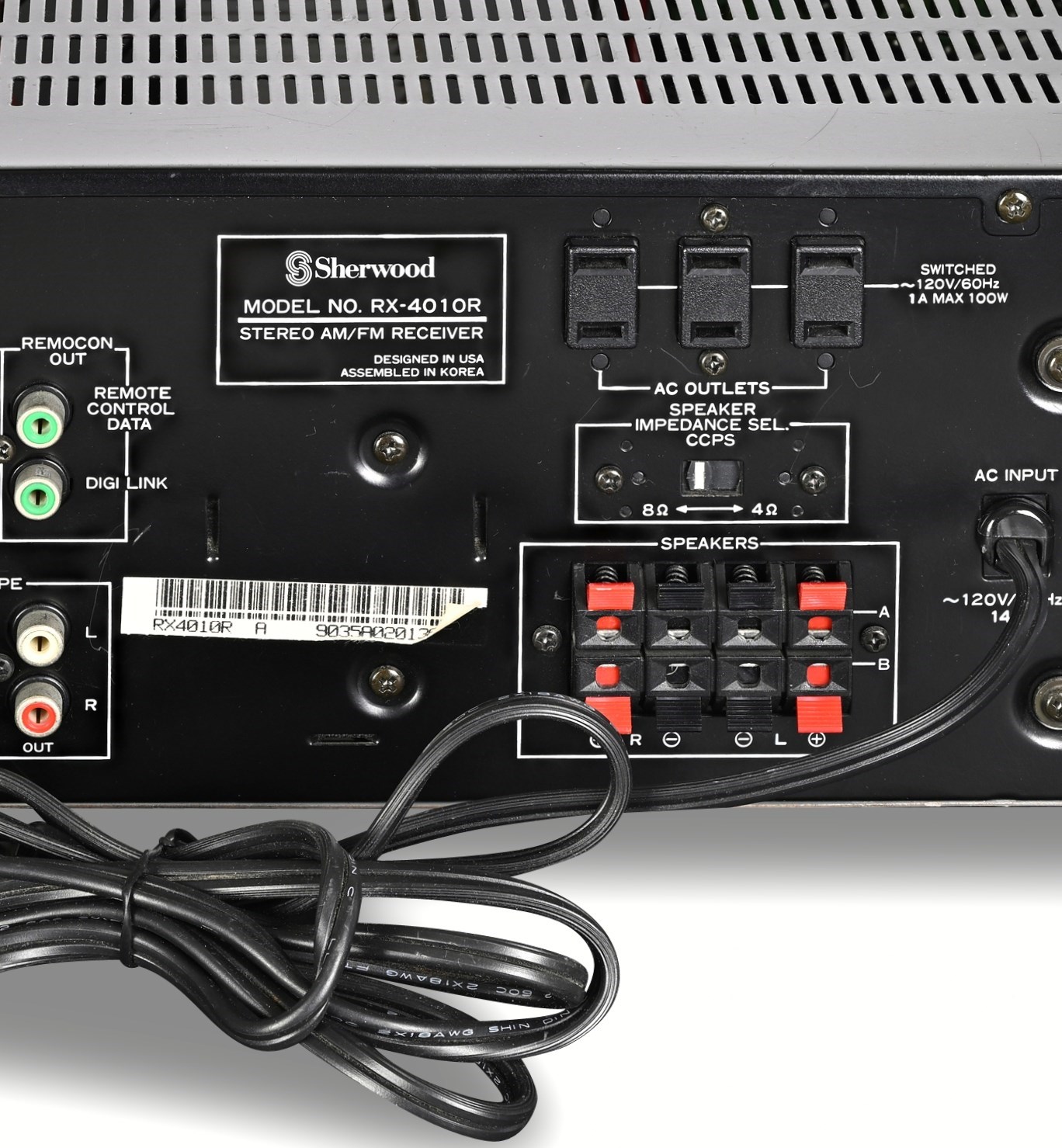

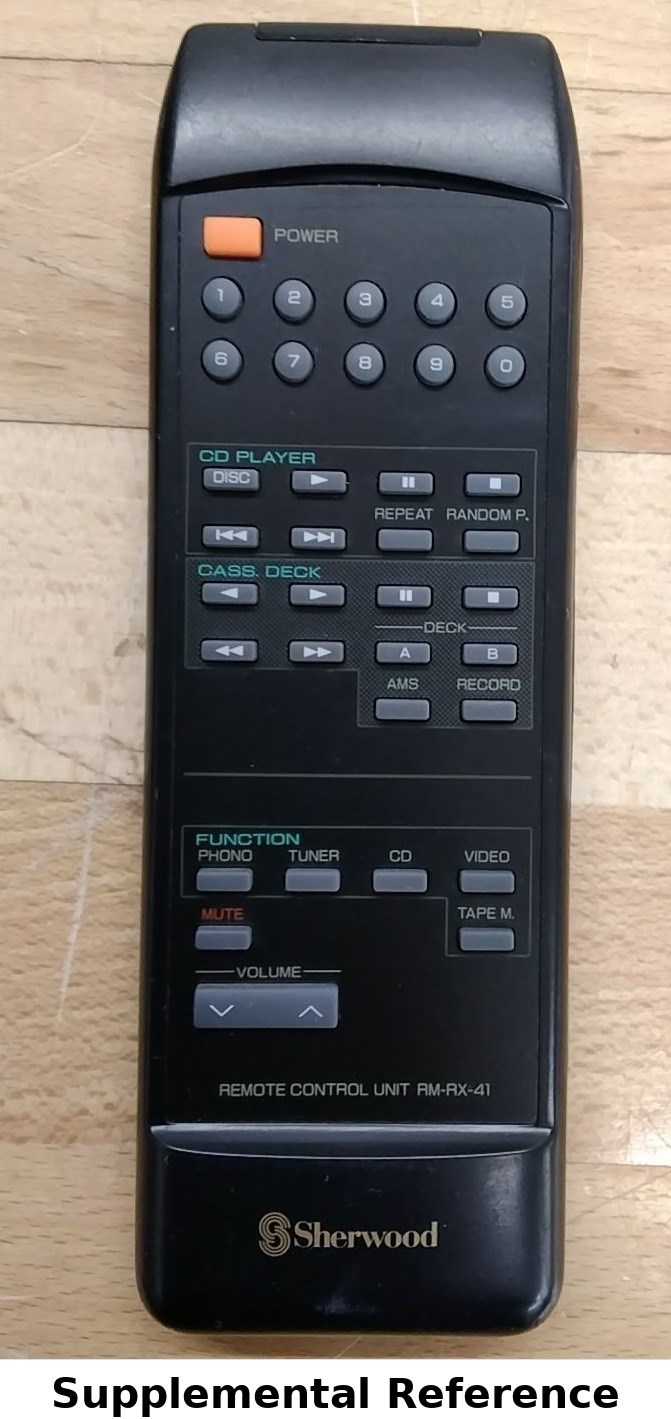

The rear panel is comprehensively equipped: full RCA inputs for Phono, CD, Video, and Tape (in/out); A/B speaker binding posts with a 4Ω/8Ω impedance selector (CCPS); FM 75Ω coaxial and AM loop antenna terminals; three switched AC convenience outlets (1A max, 100W); and Sherwood's proprietary Digi Link and Remocon Out jacks for multi-room system integration. The lot includes the matching Sherwood RM-RX-41 remote control unit, which provides dedicated CD player transport controls (play, pause, stop, skip, repeat, random), cassette deck transport controls (both Deck A and Deck B), function source selection, mute, and volume. Designed in USA, assembled in Korea.

CONDITION

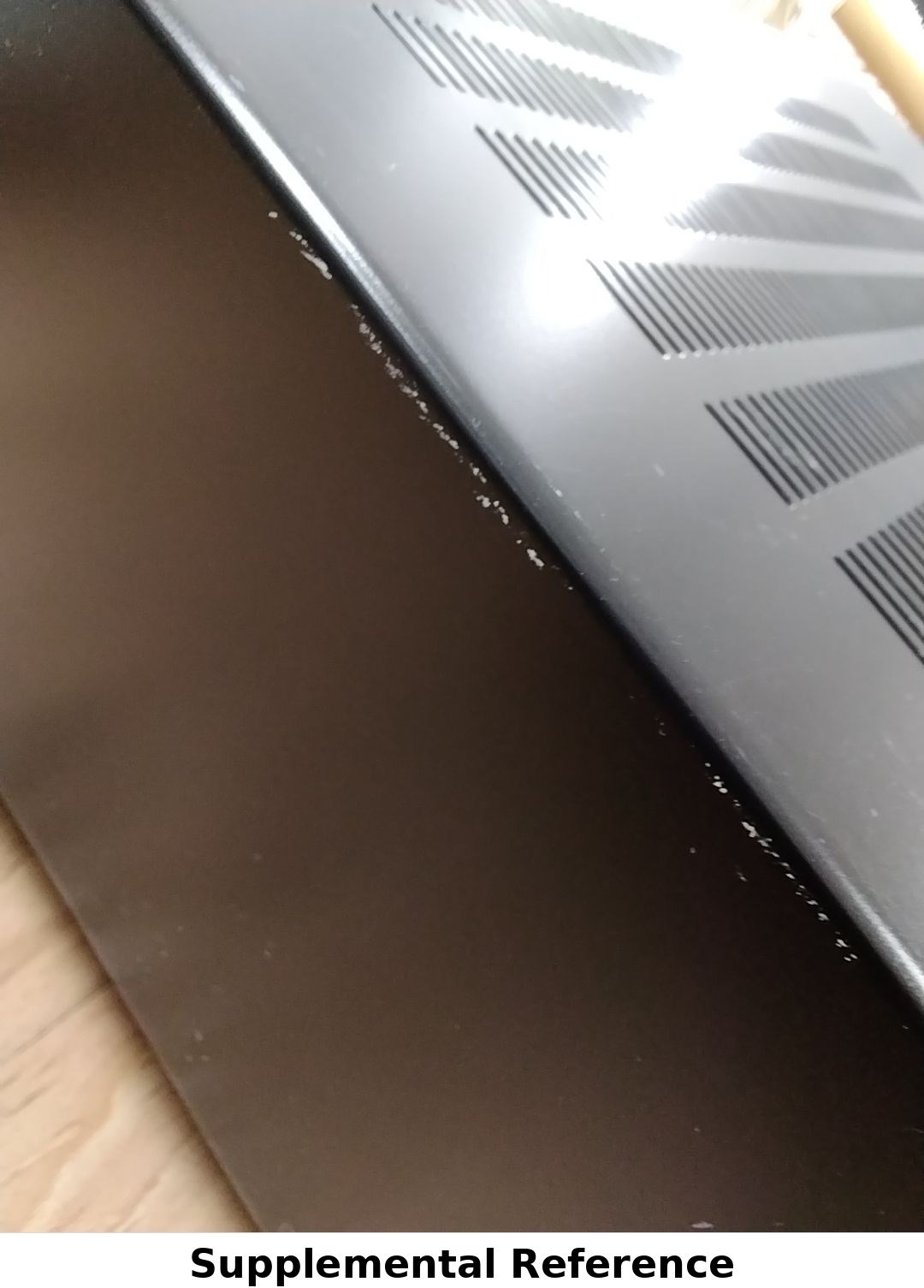

Good and fully functional; tested with strong sound output across all inputs and controls. The chassis shows minor cosmetic scuffs along the top edge at the vent seam. The remote operates as intended .

DIMENSIONS / SPECIFICATIONS

• Model: RX-4010R Digi-Line II Stereo AM/FM Receiver
• Maker: Sherwood Electronics — designed in USA, assembled in Korea
• Continuous Power Output: 100W per channel (2 ch driven, 8Ω)
• Total Harmonic Distortion (THD): 0.08% (rated output, 1 kHz)
• Frequency Response: 10 Hz – 50 kHz (+0 / −3 dB)
• Signal-to-Noise Ratio: 100 dB (IHF-A, CD input)
• FM Tuner Sensitivity: 1.8 µV (IHF, mono)
• FM Frequency Range: 87.5 – 108 MHz
• AM Frequency Range: 530 – 1710 kHz
• Preset Stations: 30 (random preset tuning)
• Tone Controls: Bass ±10 dB, Treble ±10 dB
• Speaker Outputs: A and B, selectable
• Speaker Impedance: 4Ω / 8Ω selectable (CCPS)
• Inputs: Phono, CD, Video, Tape (In/Out), Multi Room Input
• Antenna Connections: FM 75Ω coaxial, AM loop
• Switched AC Outlets: 3 (120V / 60Hz, 1A max, 100W)
• System Integration: Digi Link, Remocon Out, Remote Control Data
• Power: ~120V / 60Hz
• Remote Control Unit: Sherwood RM-RX-41
• Serial: 9035A020130 (barcode label, rear panel)
• Dimensions: 17.13" W × 5.12" H × 13.19" D
• Weight: 17.6 lbs
