Yamaha RX-V863 Natural Sound 7.1 AV Receiver with HDMI & Cinema DSP

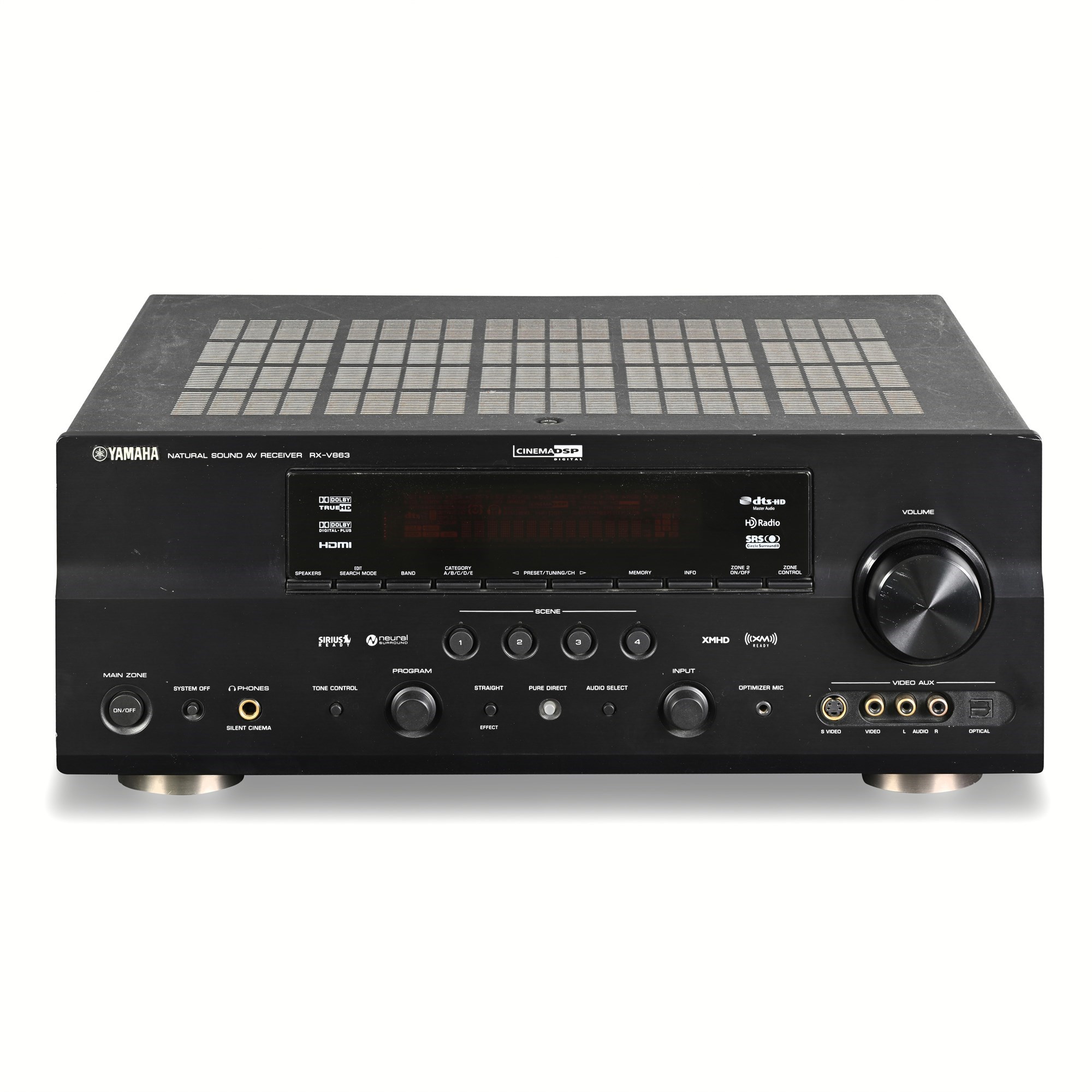

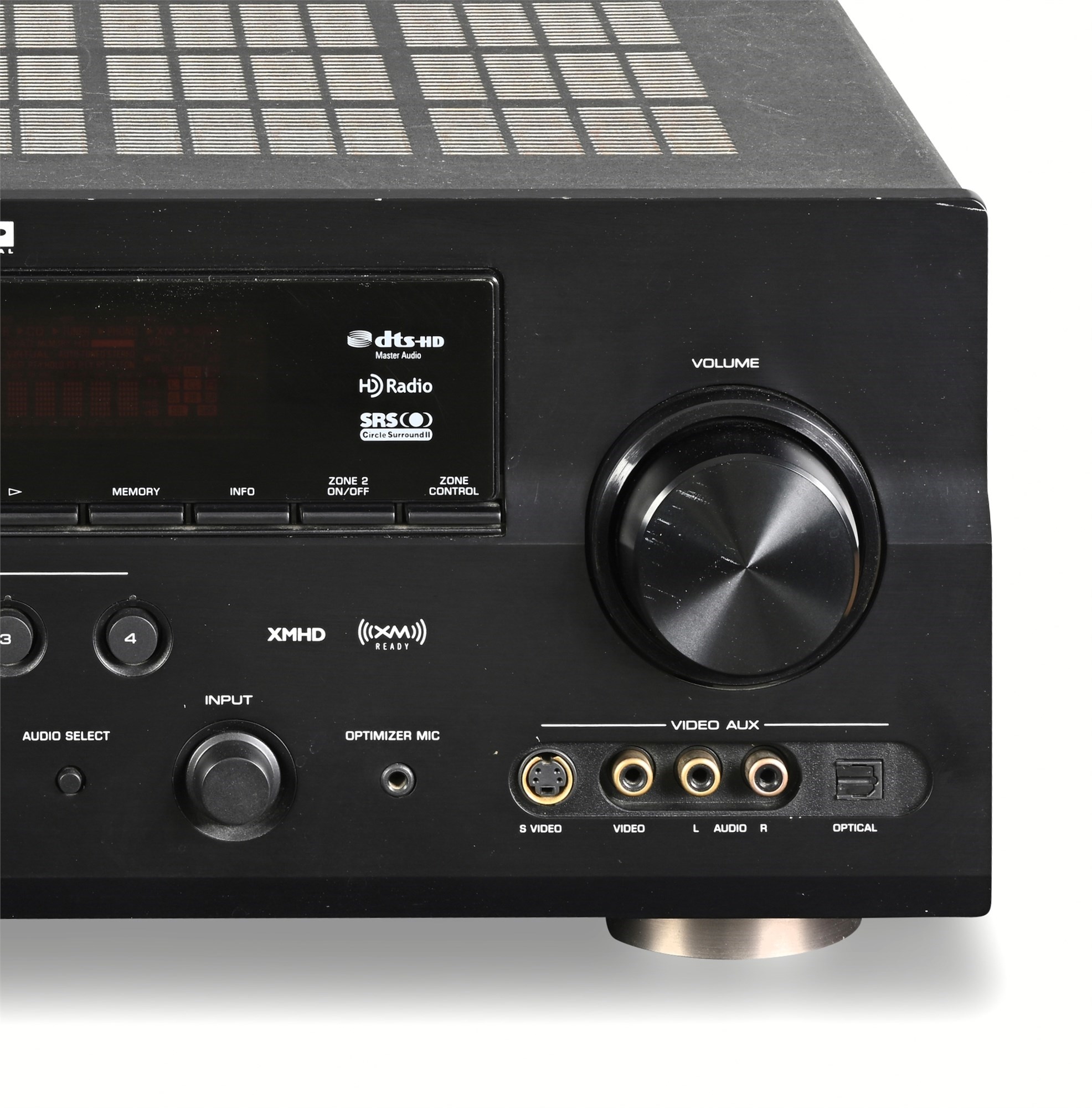

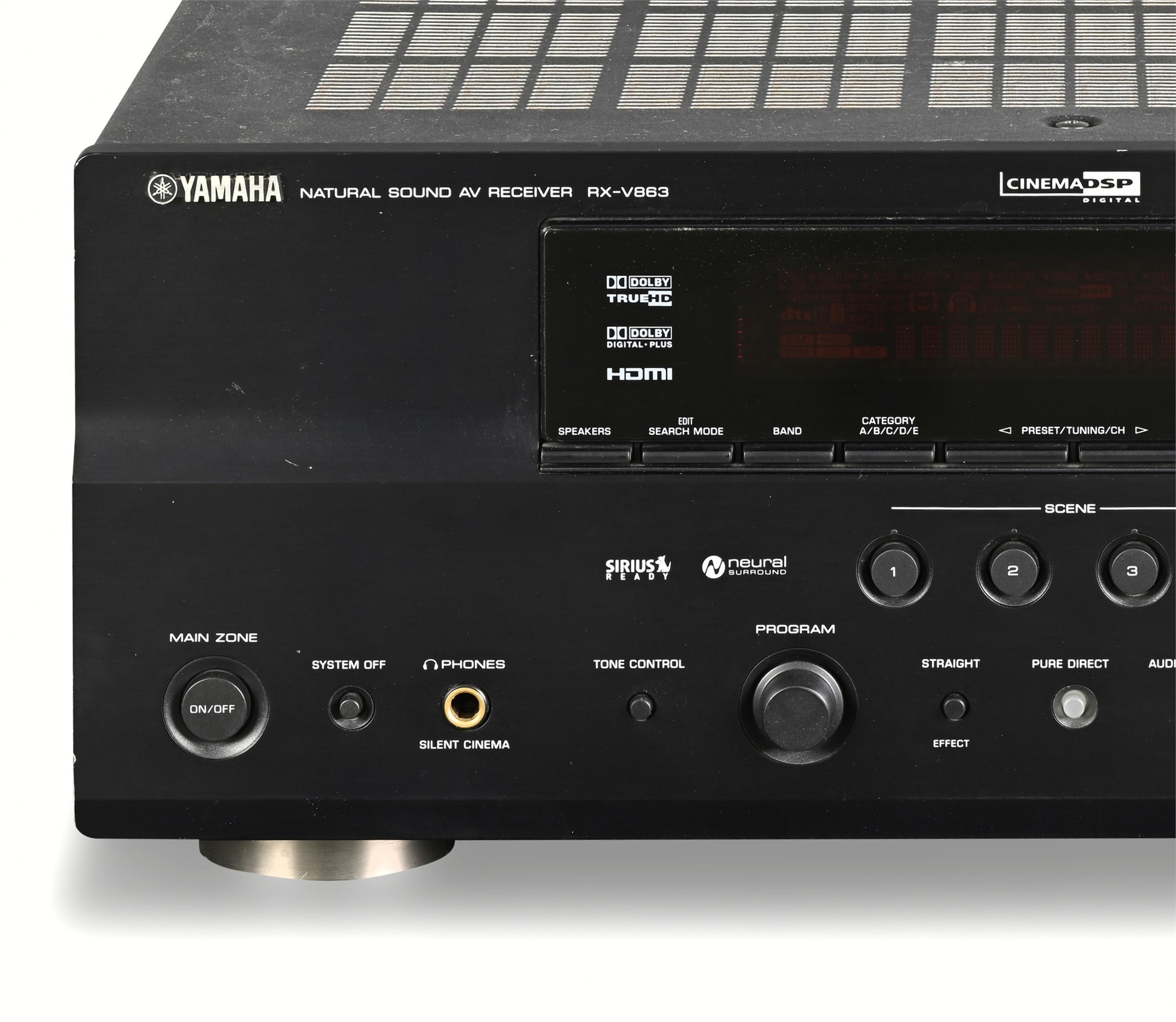

Yamaha RX-V863 Natural Sound AV receiver featuring 7.1-channel surround processing, Cinema DSP, and three HDMI inputs with one HDMI output. Decodes Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, with HD Radio, SRS Circle Surround II, SIRIUS-Ready, and XM-Ready compatibility. Front-panel controls include four SCENE buttons, Pure Direct, Tone Control, Optimizer Mic input, and a Video Aux cluster with S-Video, composite, stereo RCA, and optical digital inputs.

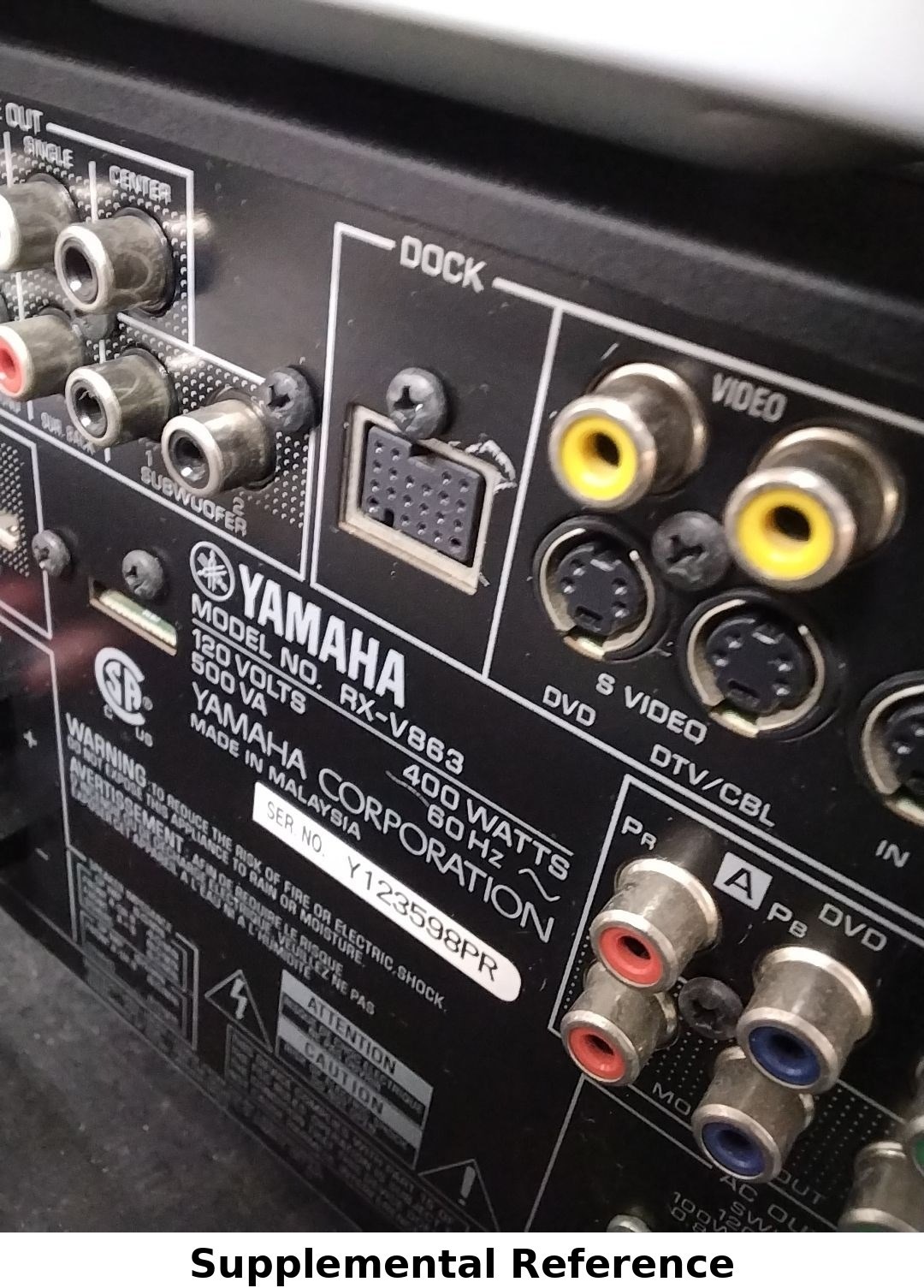

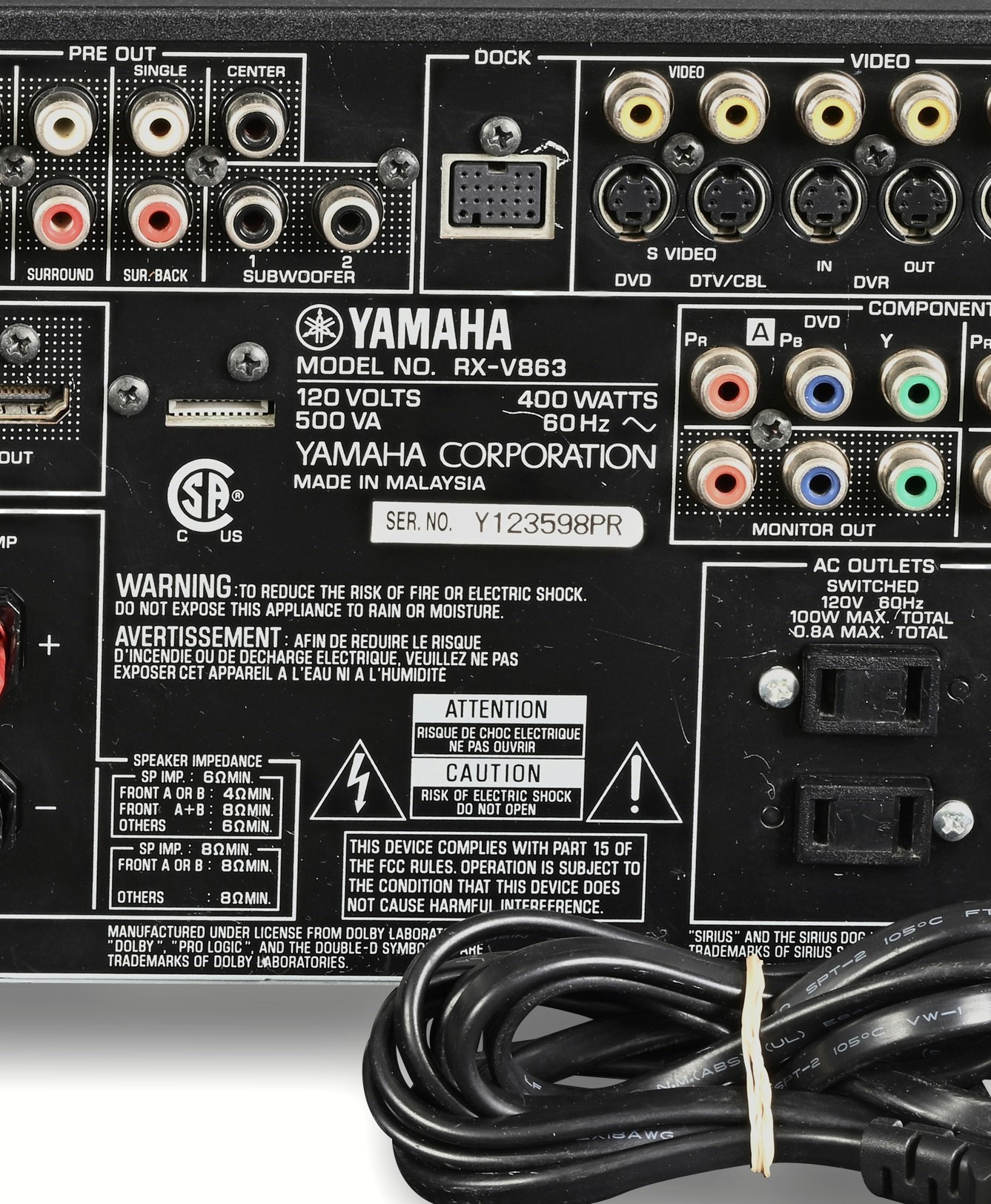

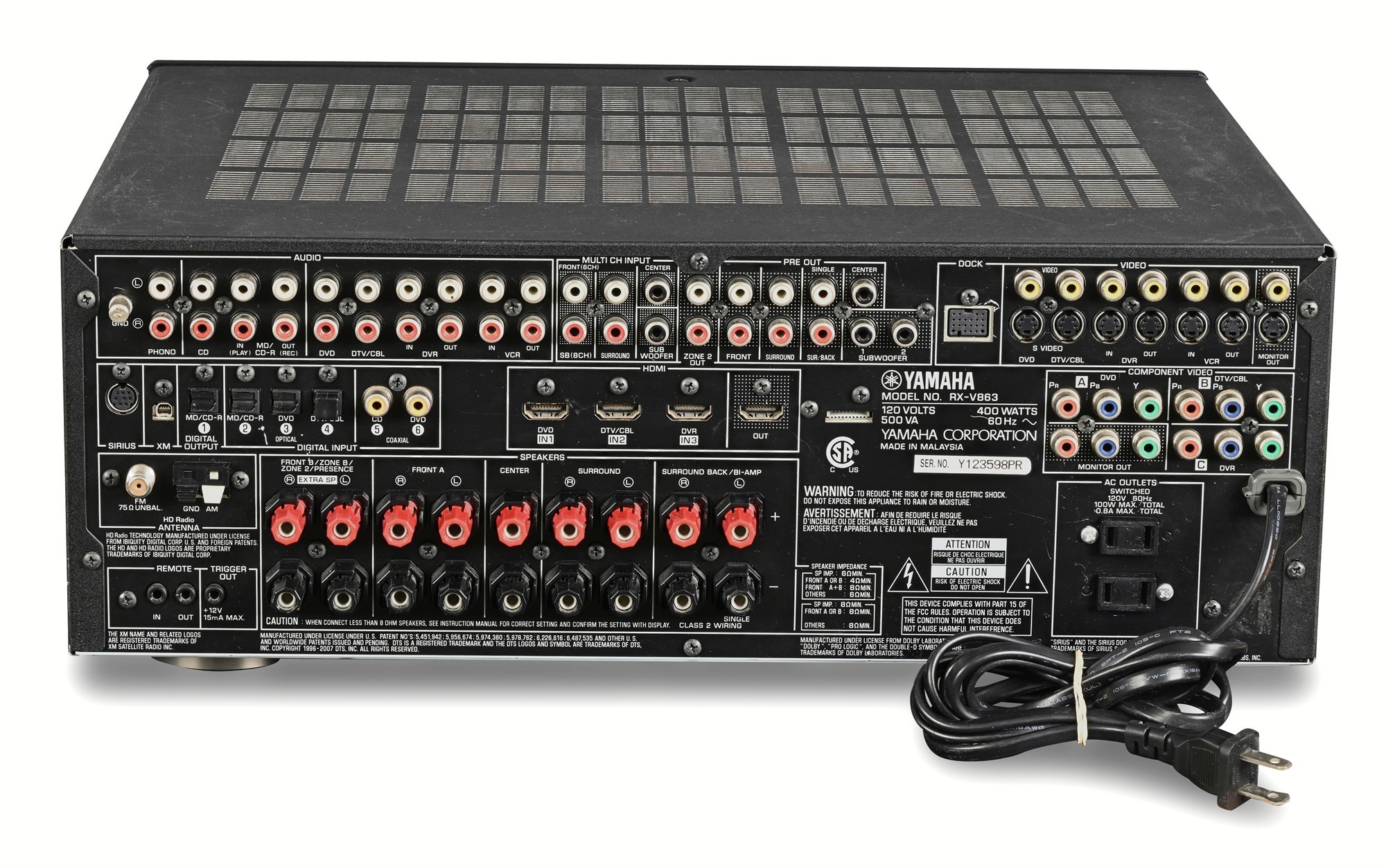

Rear panel offers comprehensive connectivity: phono input with ground, multi-channel input, Zone 2 pre-outs, two subwoofer outputs, component video A/B/C, multiple S-Video and composite routing, six digital inputs (optical and coaxial), Yamaha iPod dock port, FM/AM antenna terminals, and 7.1 binding-post speaker terminals with bi-amp capability. Includes detachable power cord; no remote.

CONDITION

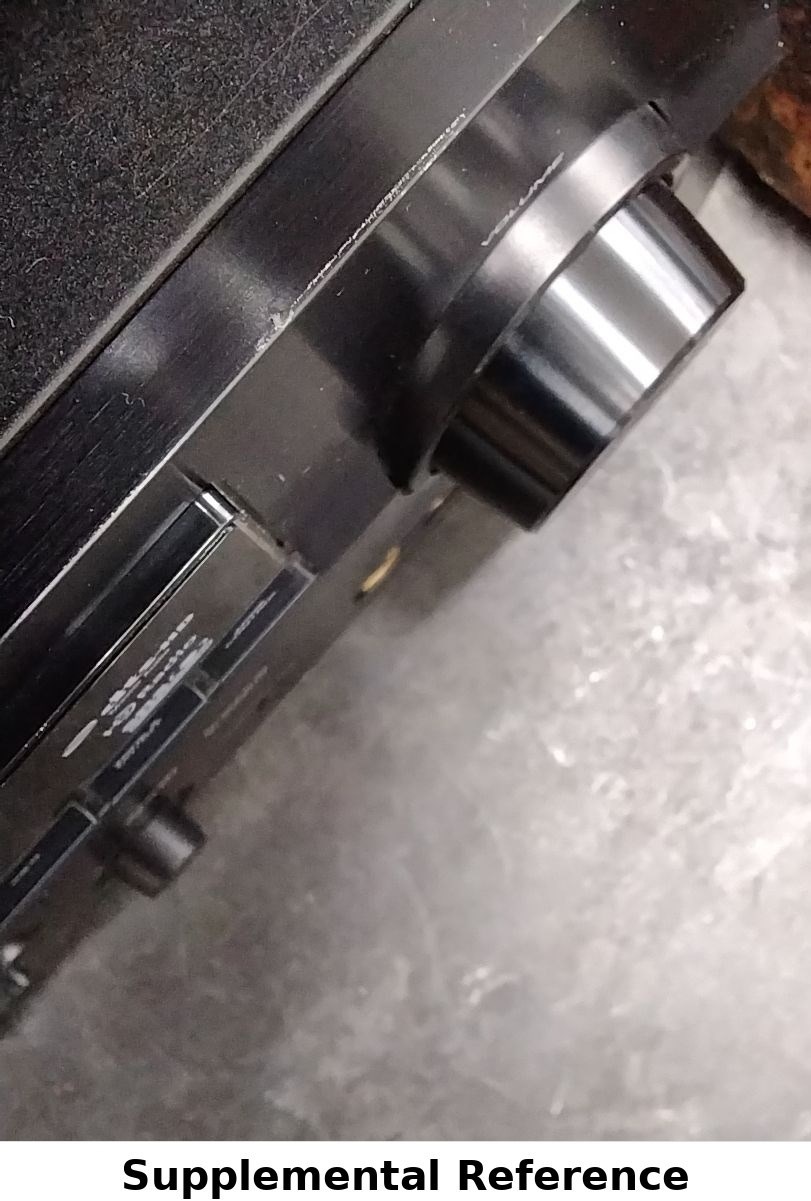

Very Good and fully functional; tested and working. Minor scuffs visible to the top panel and volume knob with no remarkable damage.

DIMENSIONS / SPECIFICATIONS

• Maker: Yamaha Corporation, Made in Malaysia
• Model: RX-V863 Natural Sound AV Receiver
• Serial Number: Y123598PR
• Channels: 7.1 surround
• Power: 120V, 60Hz, 400W, 500VA
• Switched AC Outlets: 120V, 100W / 0.8A max total
• Speaker Impedance: 6Ω min (Front A or B: 4Ω min; A+B: 8Ω min; others: 6Ω min)
• Audio Decoding: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, SRS Circle Surround II
• HDMI: 3 inputs / 1 output
• Digital Inputs: 4 optical, 2 coaxial
• Video: Component A/B/C, multiple S-Video and composite, Monitor Out
• Additional: Phono input, Multi-Ch input, Zone 2 pre-out, dual subwoofer outs, bi-amp capable, iPod dock port, SIRIUS / XM Ready, HD Radio
• Includes: Detachable power cord
