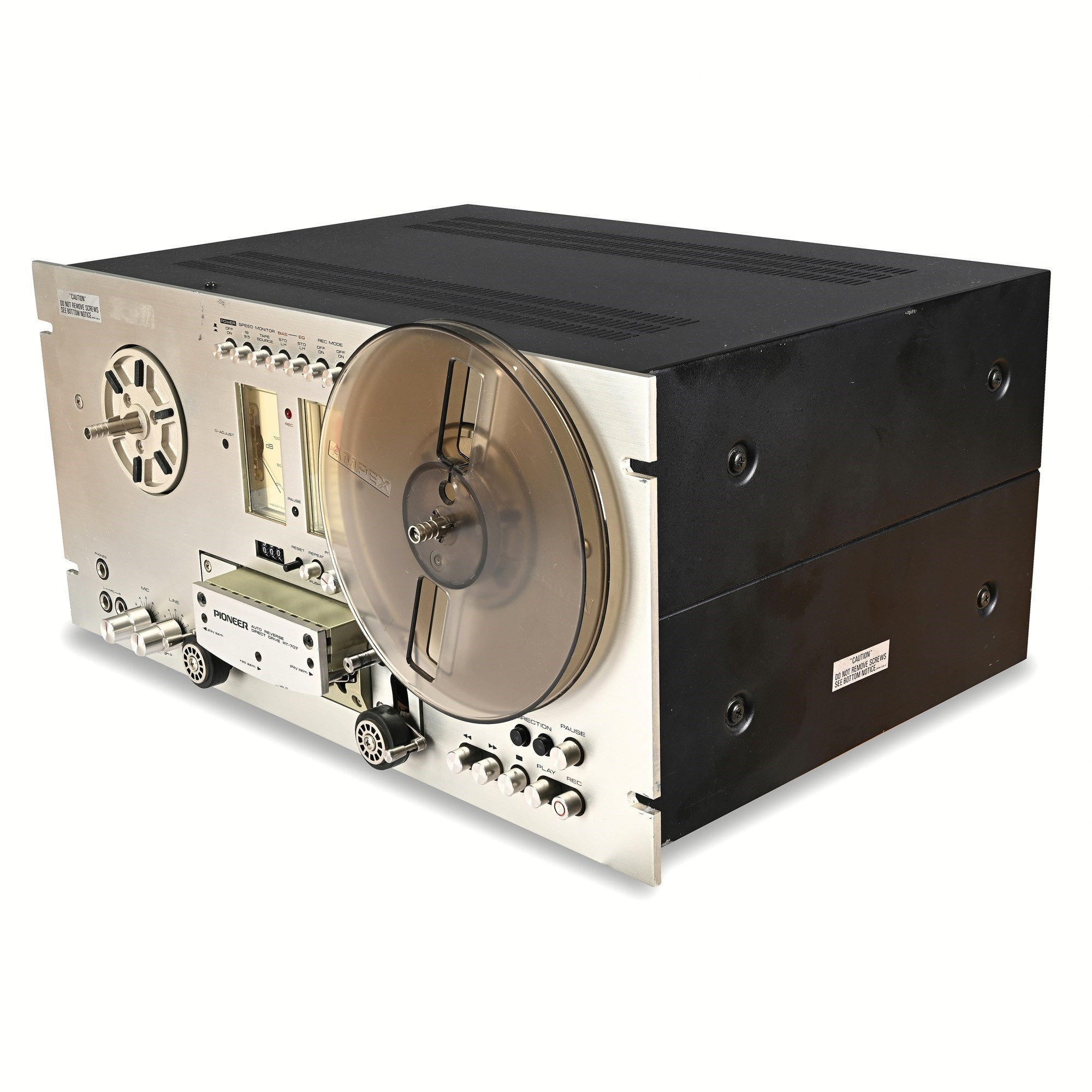

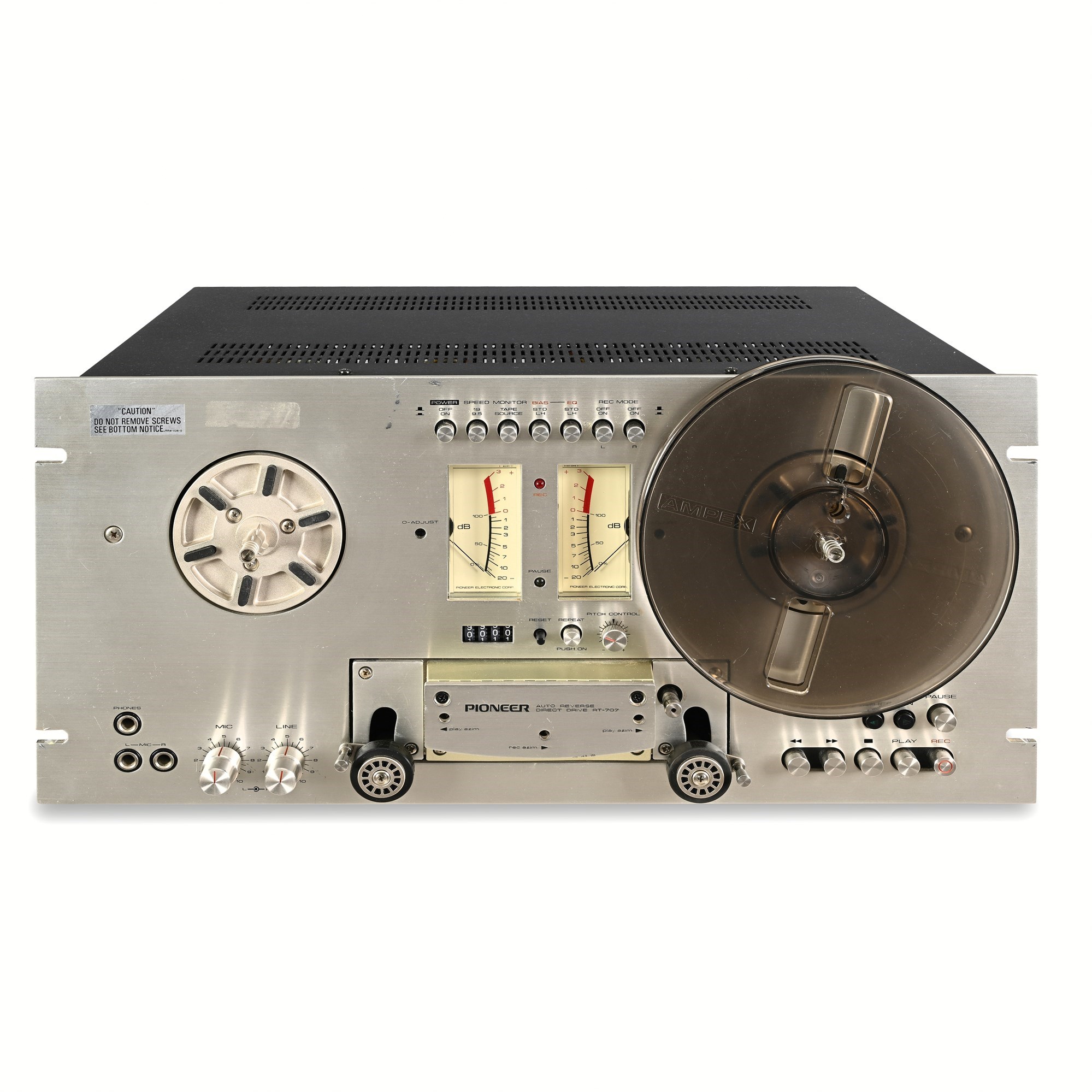

Pioneer RT-707 Auto Reverse Direct Drive Reel-to-Reel Tape Deck, 1977

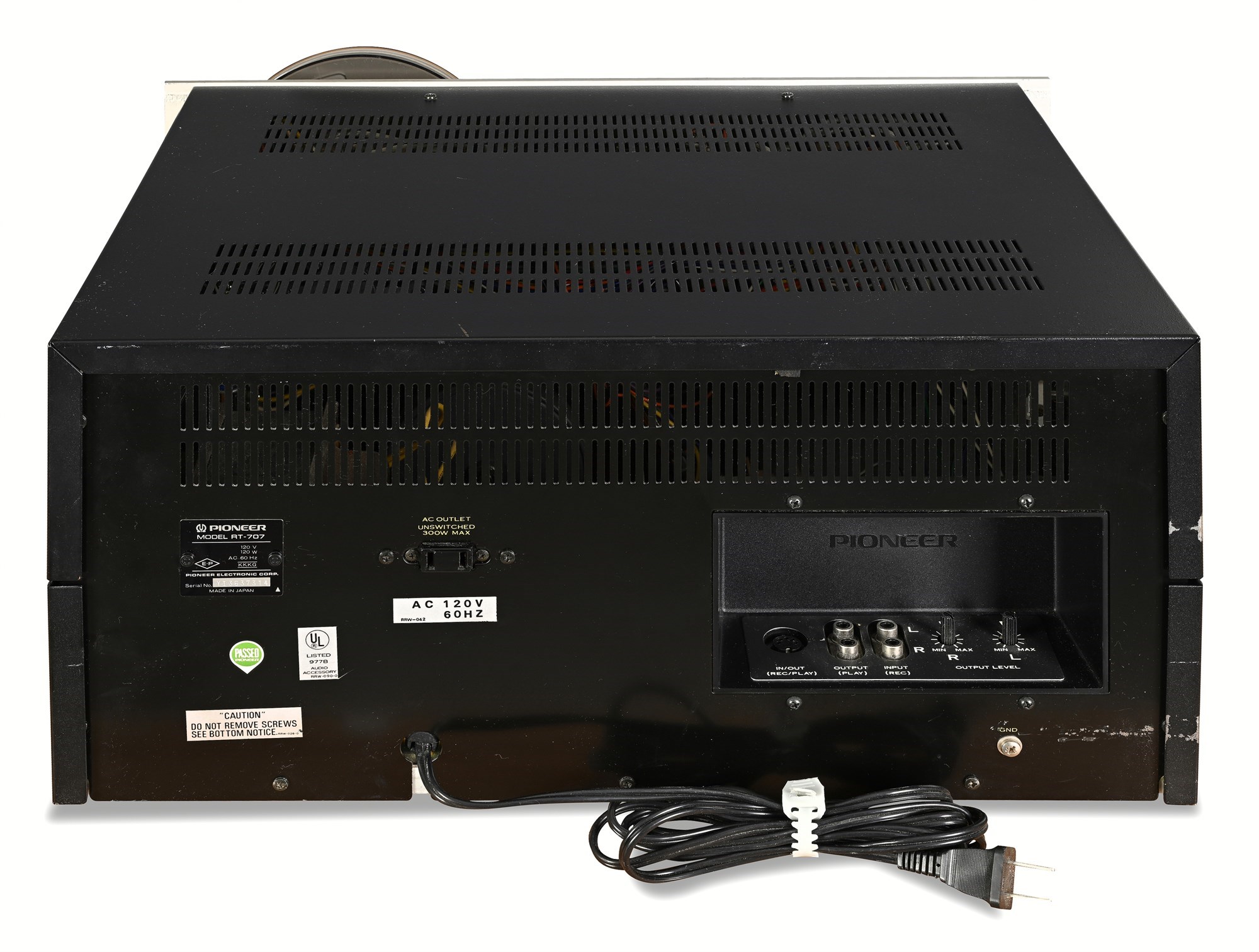

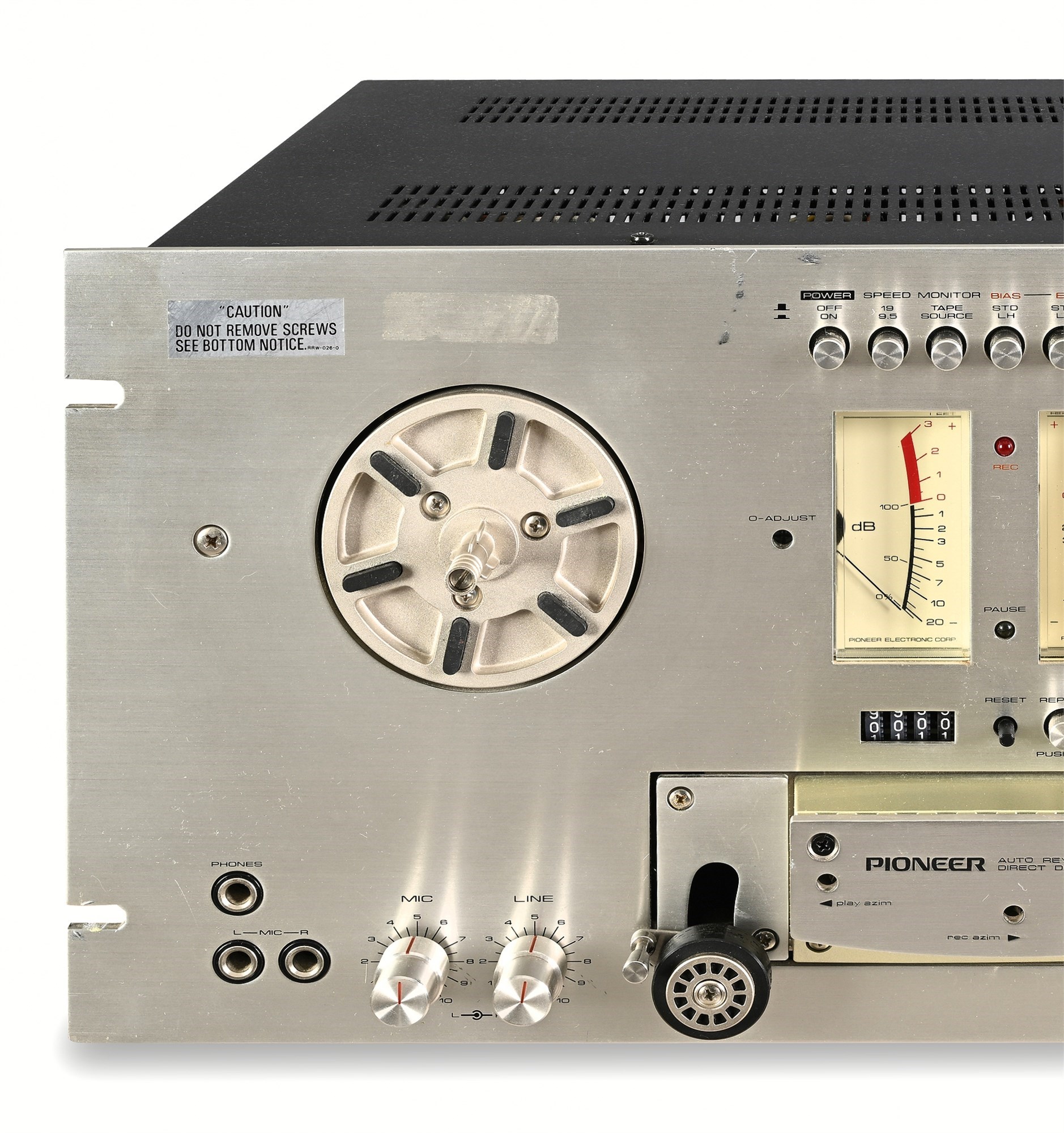

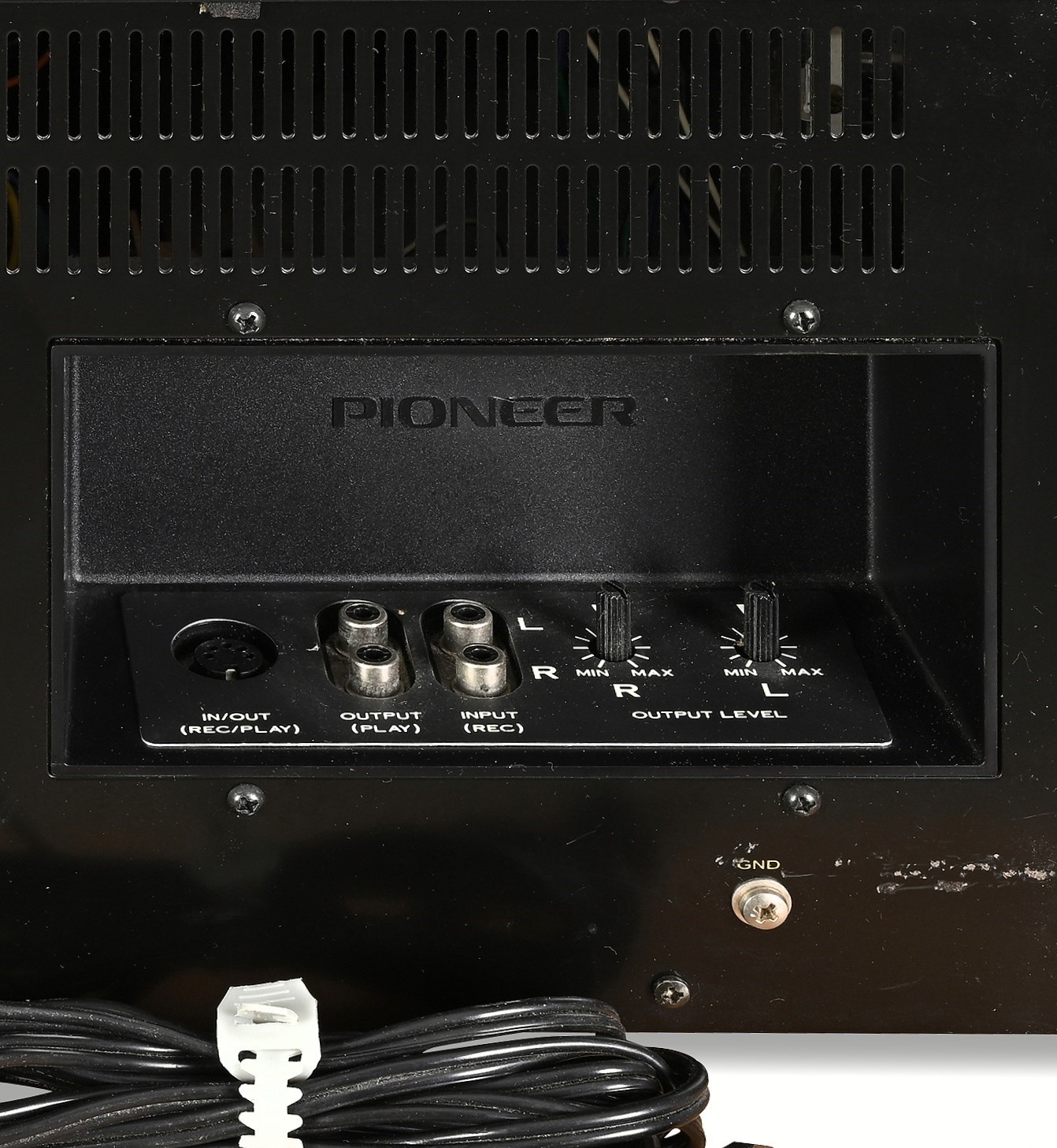

Pioneer RT-707 quartz-locked direct drive reel-to-reel tape deck, introduced in 1977 as the rack-mount sibling to the celebrated RT-909 and engineered around the same closed-loop dual-capstan transport that earned the 700-series its reputation in semi-pro studios and broadcast booths. The 7-inch deck runs four-track stereo at 9.5 and 19 cm/s with auto-reverse playback, pitch control, dual illuminated VU meters, four-digit tape counter with memory repeat, and selectable STD/LH bias and EQ. Front panel offers PHONES, dual MIC, and LINE inputs with independent level pots; the rear hosts DIN in/out, RCA play and record jacks, output level trims, and an unswitched accessory outlet rated 300W.

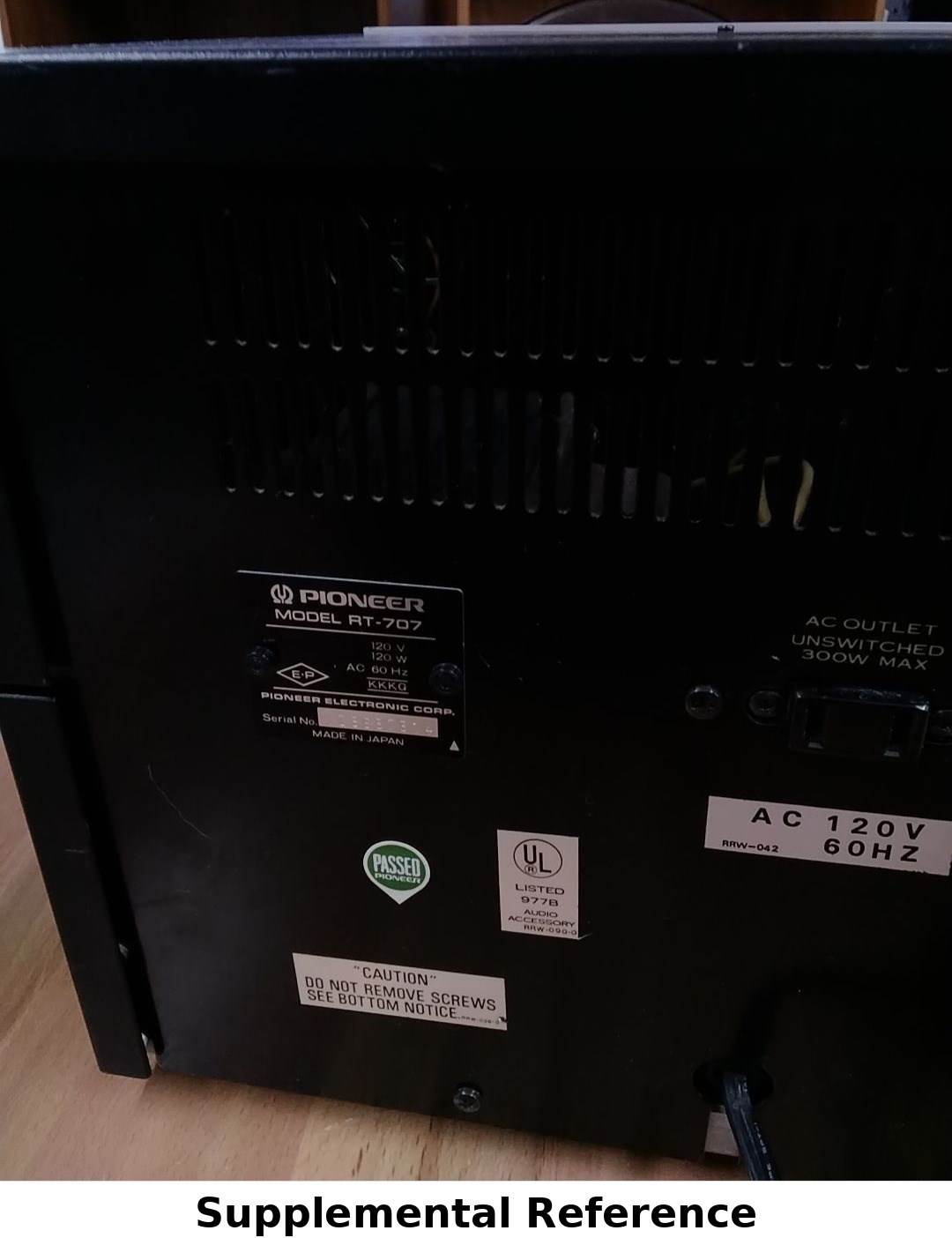

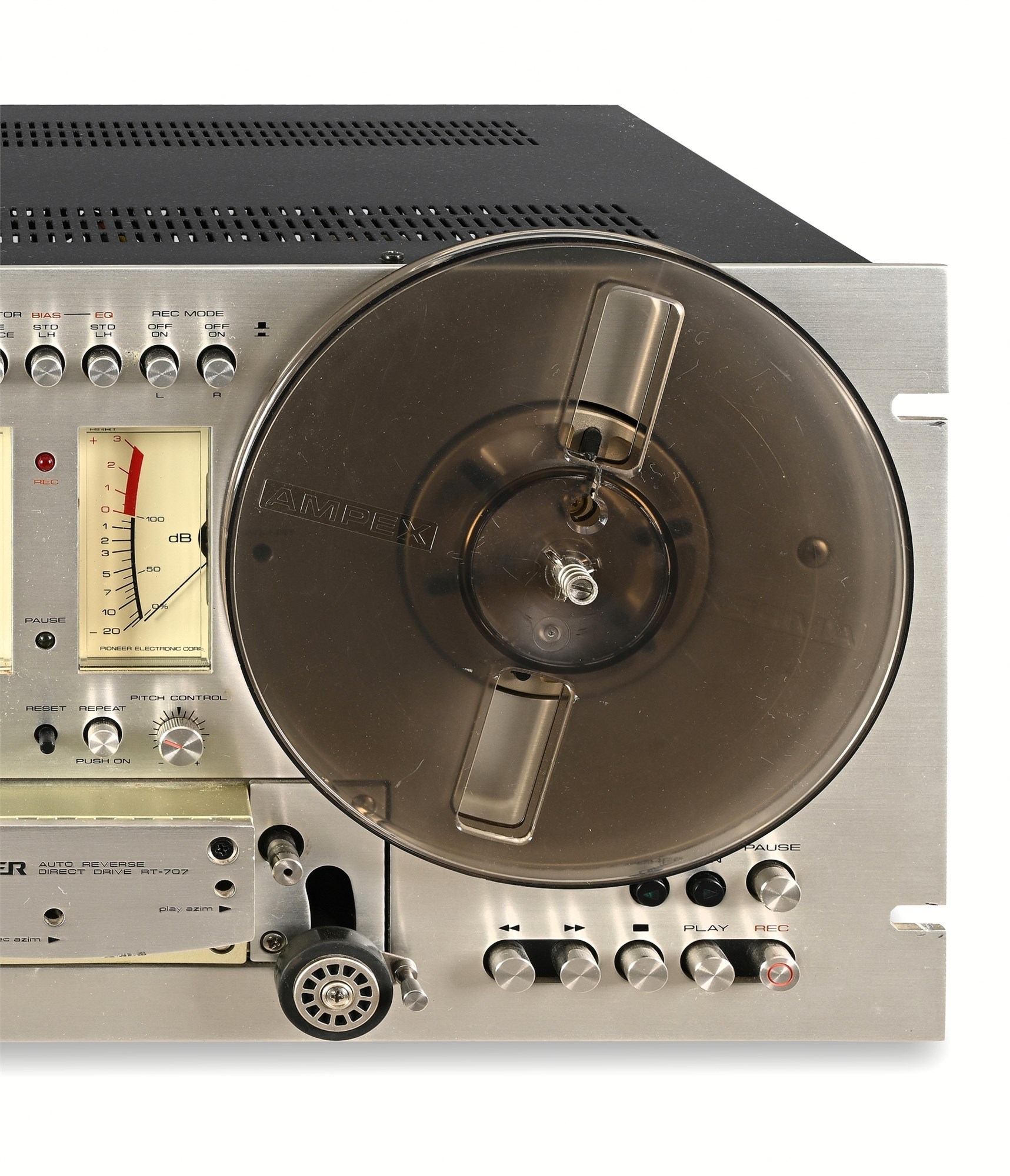

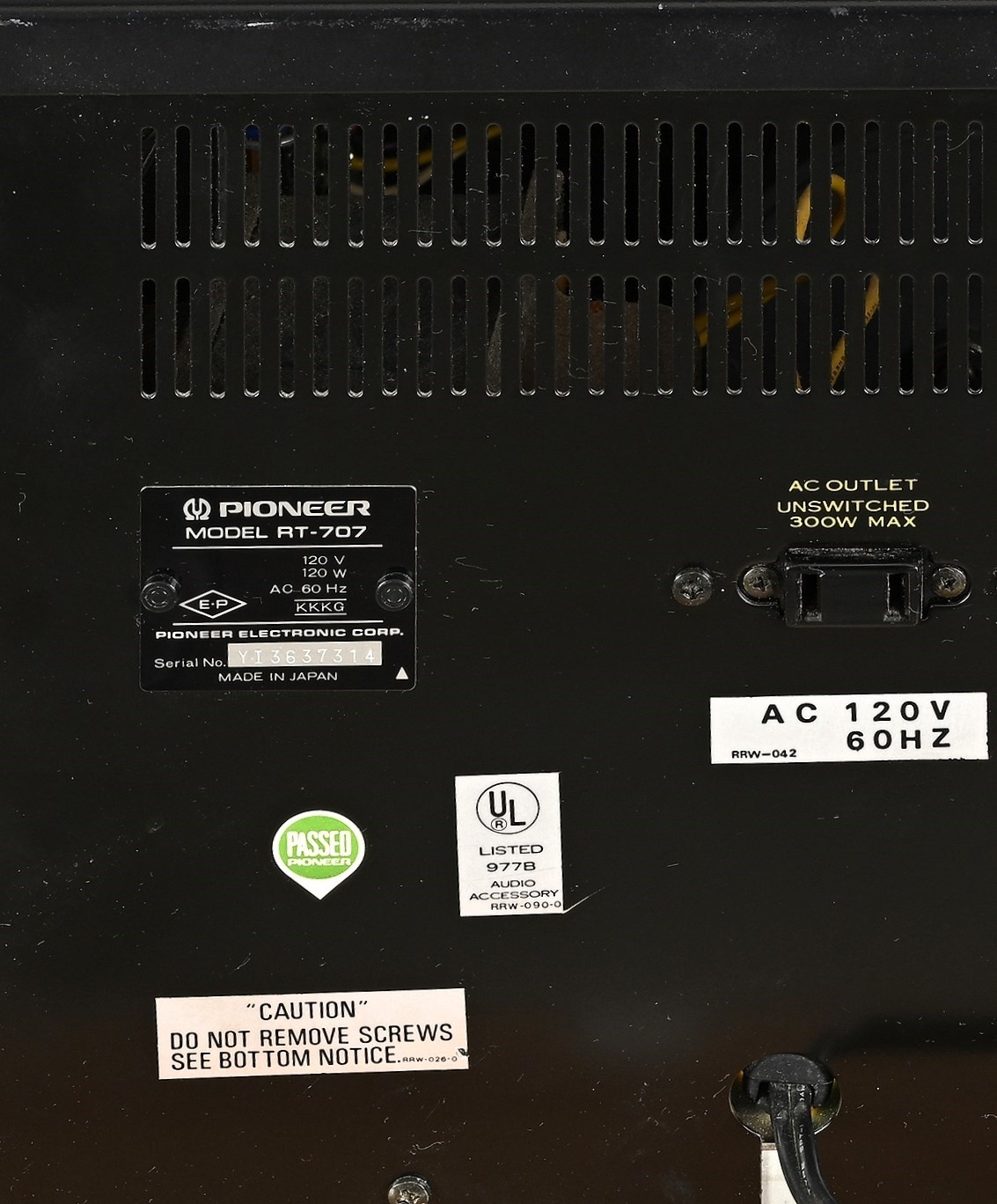

Rear panel retains the Pioneer maker plate, model RT-707 designation, serial number YI3637314, UL listing, and "Passed Pioneer" QC sticker. Made in Japan. Includes one Ampex 7-inch take-up reel and the original captive power cord.
CONDITION

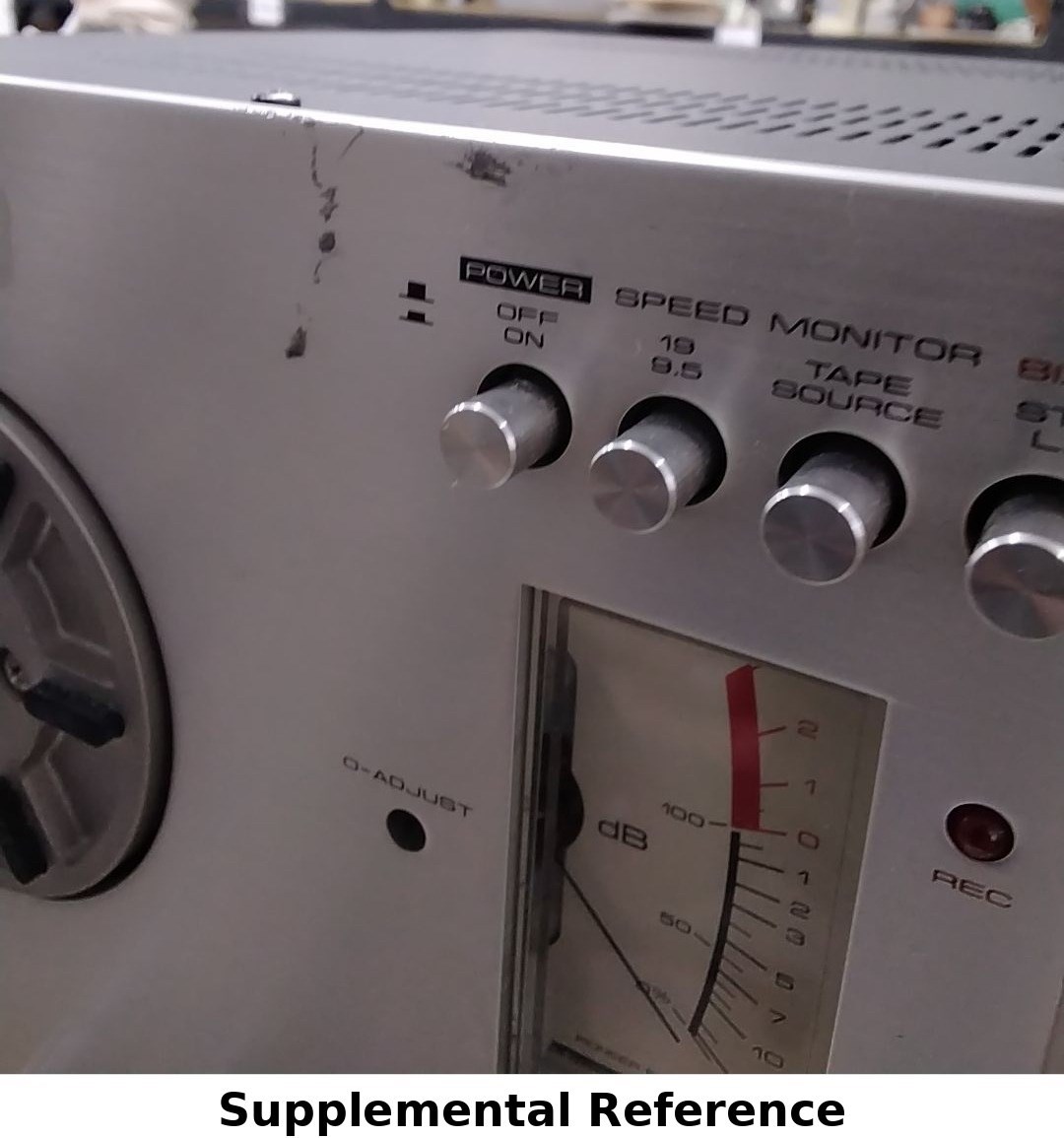

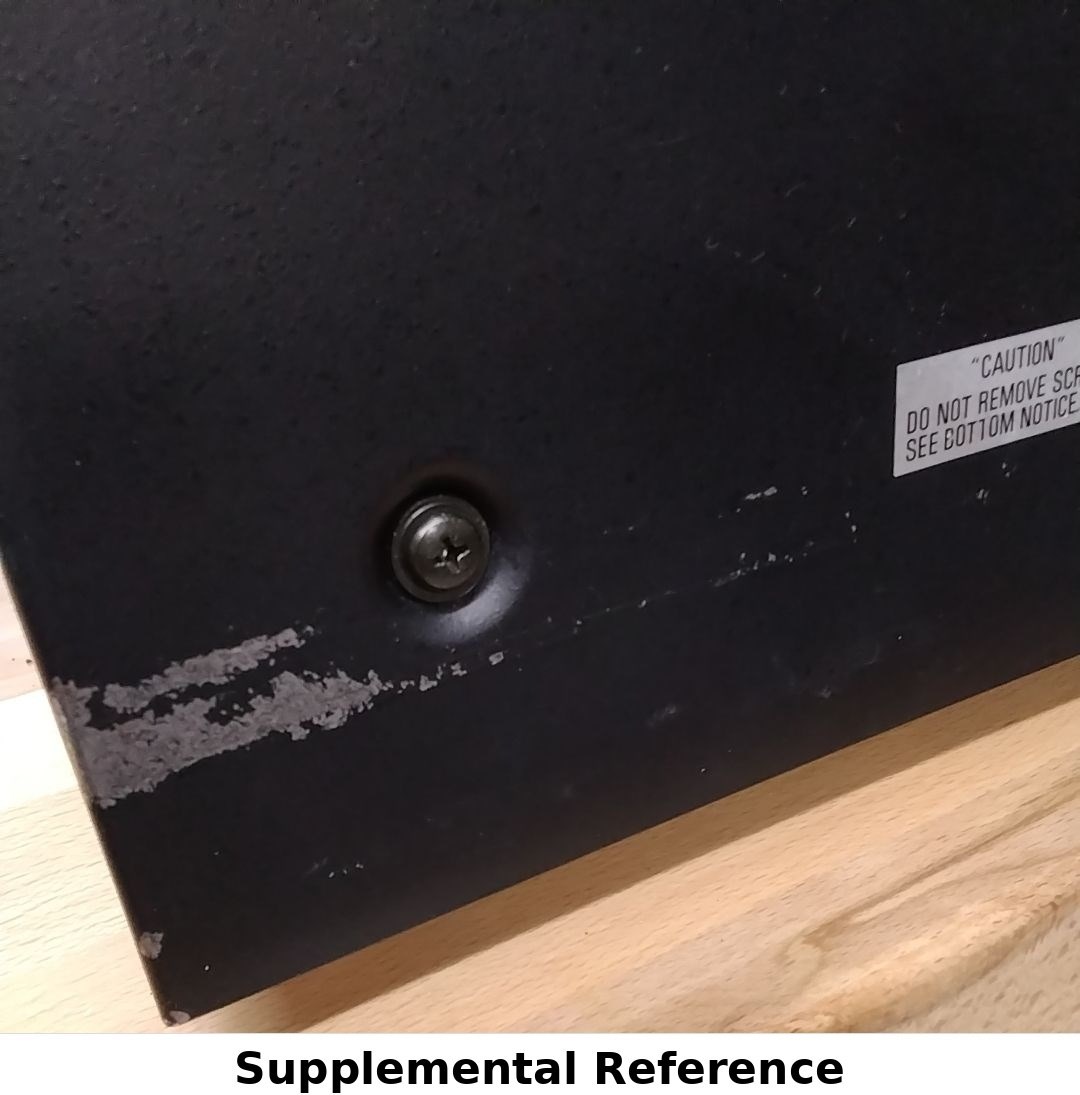

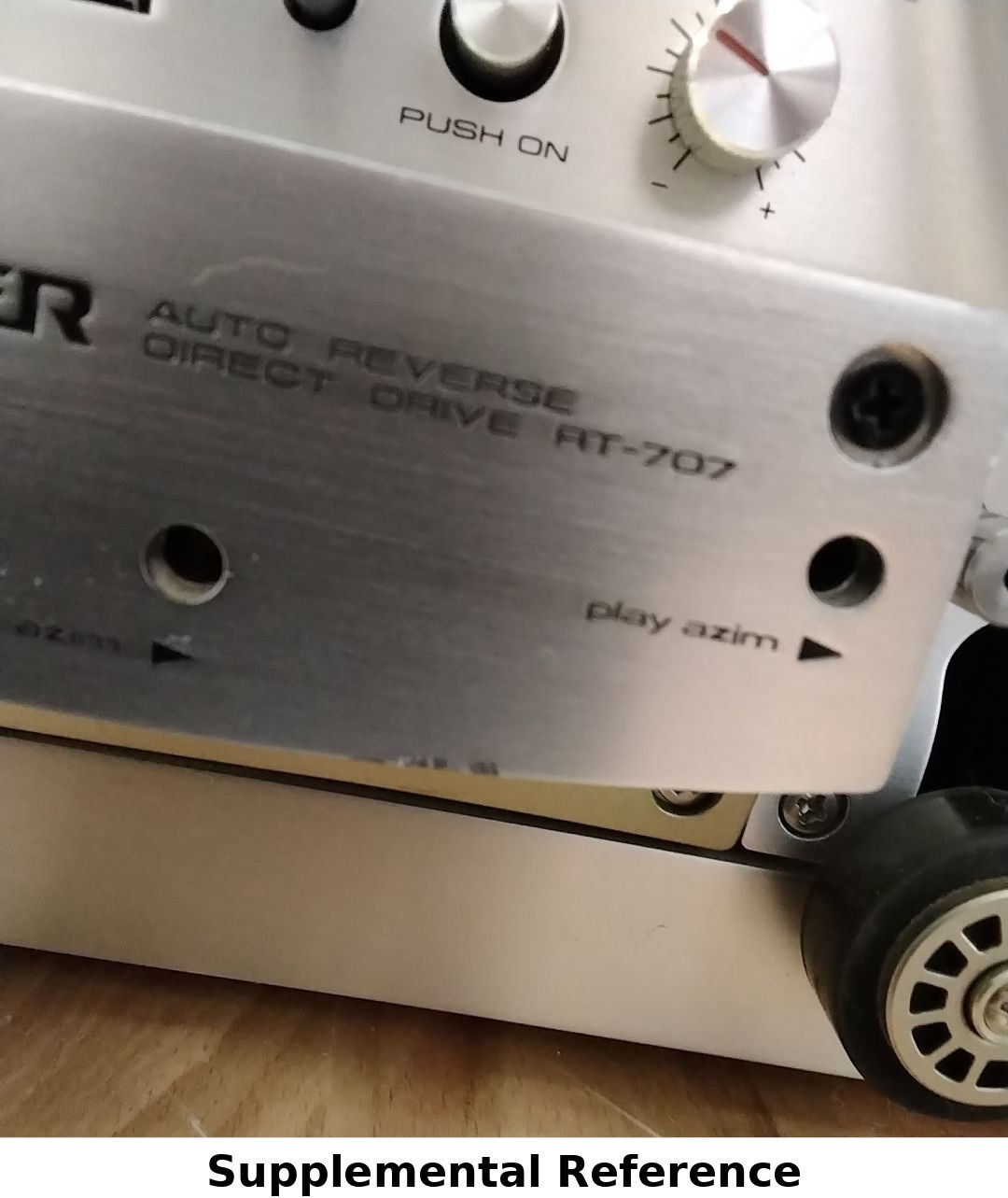

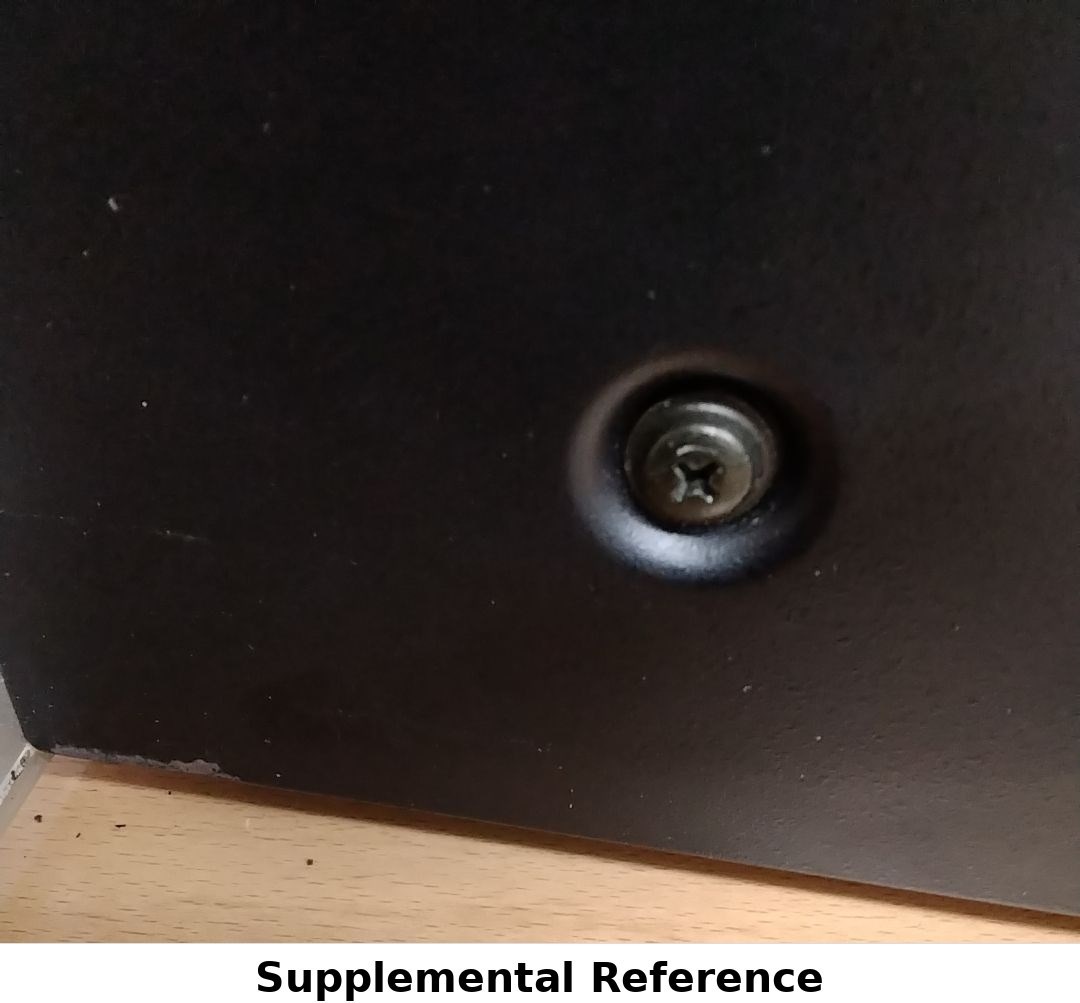

Fair condition, fully functional and tested — powers on and reels spin; no further playback or recording testing performed. Visible scuffs, scratches, and paint loss to the black metal cabinet at the corners and edges, with surface scratches and a small mark to the brushed aluminum faceplate near the power switch. See images to evaluate.
DIMENSIONS / SPECIFICATIONS
- Maker: Pioneer Electronic Corp., Japan
- Model: RT-707 Auto Reverse Direct Drive
- Year Introduced: 1977
- Serial Number: YI3637314
- Format: 4-track, 2-channel stereo, auto-reverse playback
- Drive: Quartz-locked direct drive capstan; closed-loop dual-capstan transport
- Tape Speeds: 9.5 / 19 cm/s (3¾ / 7½ ips)
- Reel Size: 7 inch maximum
- Heads: 4 (erase, record, forward play, reverse play)
- Frequency Response: 30 Hz – 28 kHz at 19 cm/s (per factory spec)
- Wow & Flutter: 0.04% WRMS at 19 cm/s (per factory spec)
- Inputs: MIC (¼"), LINE (RCA), DIN
- Outputs: LINE (RCA), DIN, PHONES (¼")
- Power: 120V, 120W, AC 60Hz
- AC Outlet: Unswitched, 300W max
- Dimensions: 19" W × 11¾" H × 13¾" D (rack-mount chassis)
- Weight: Approx. 38 lbs
- Includes: One Ampex 7-inch take-up reel, captive power cord
