Pioneer FT-V70 Digital Synthesizer Tuner – Japan 1980s

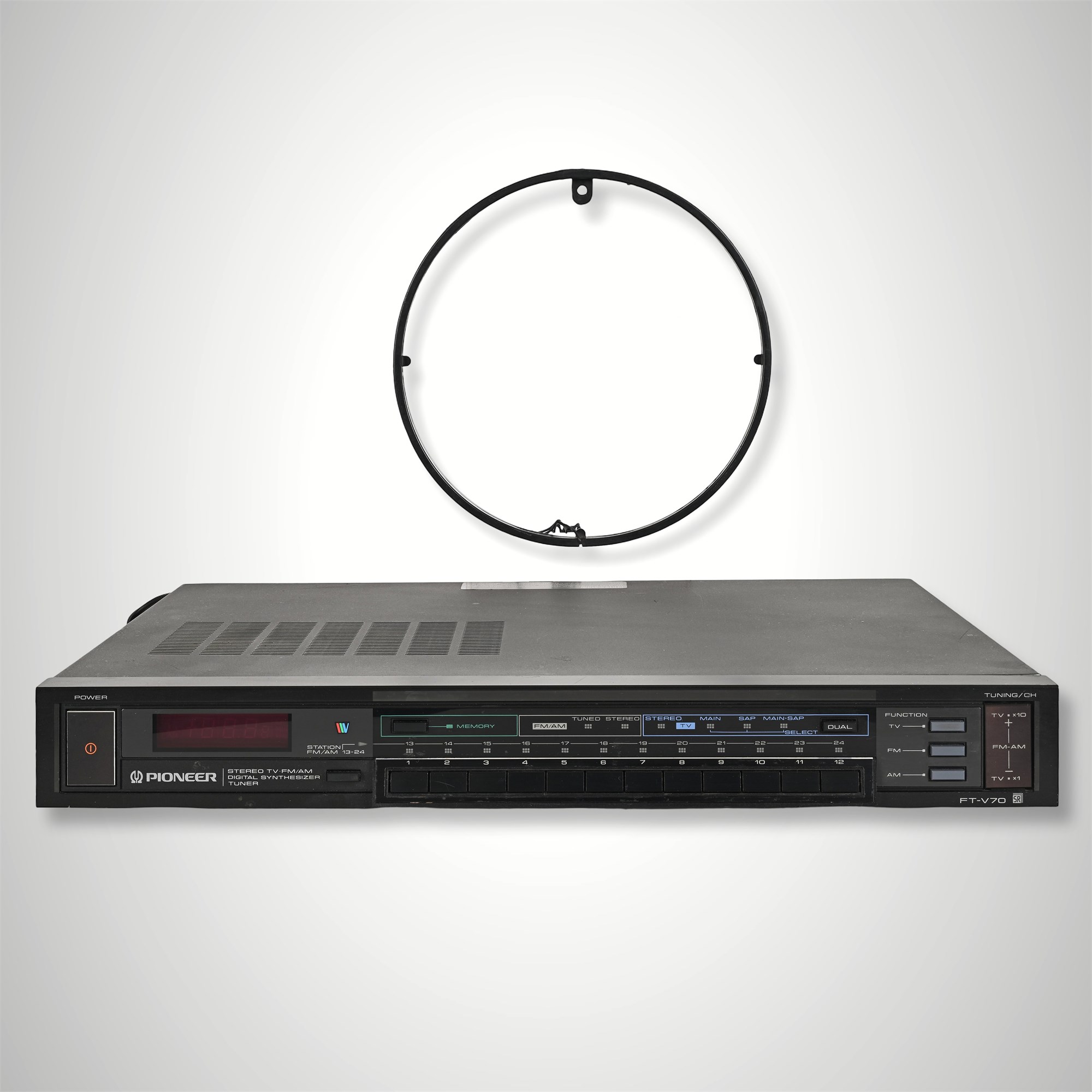

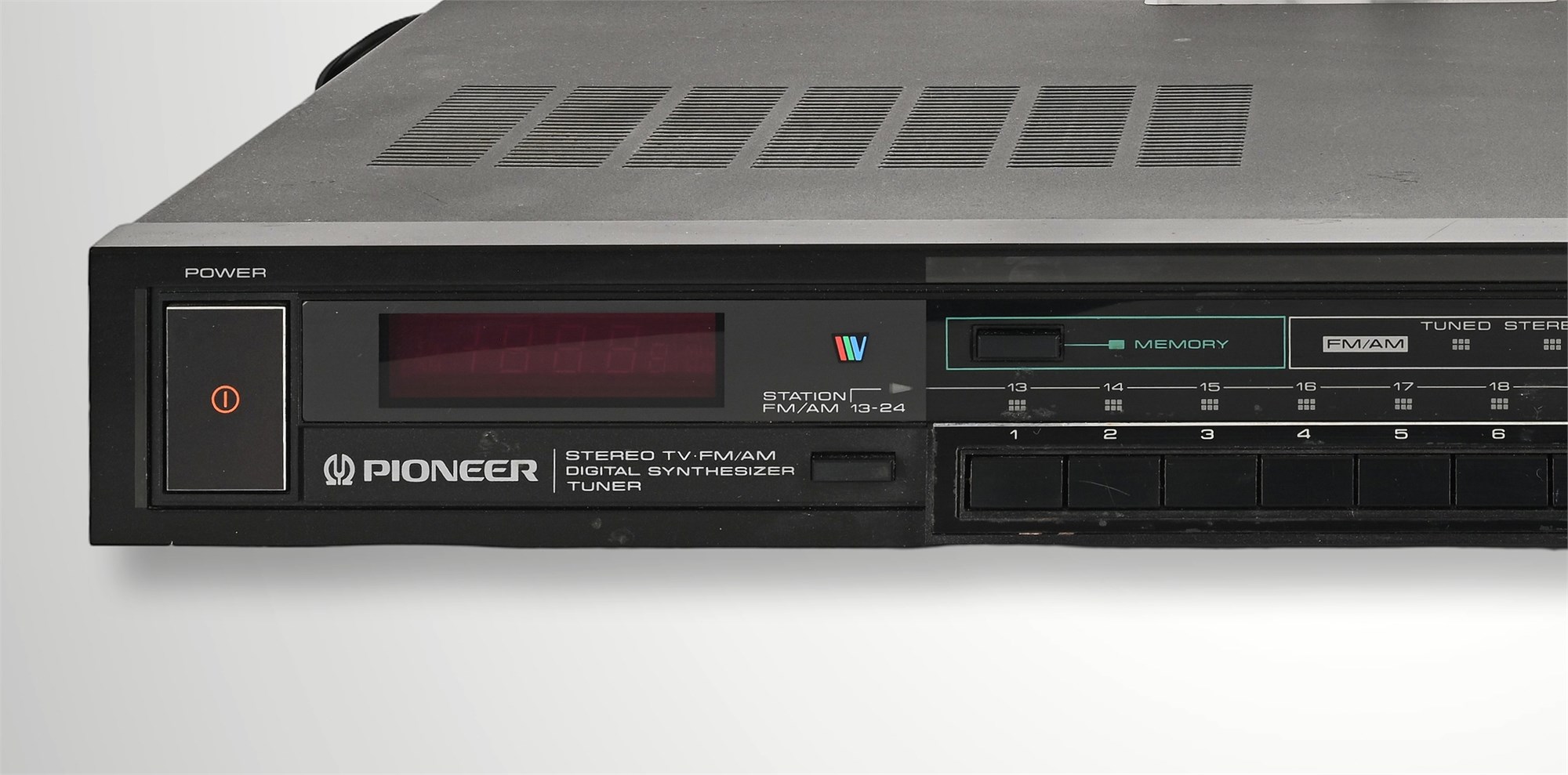

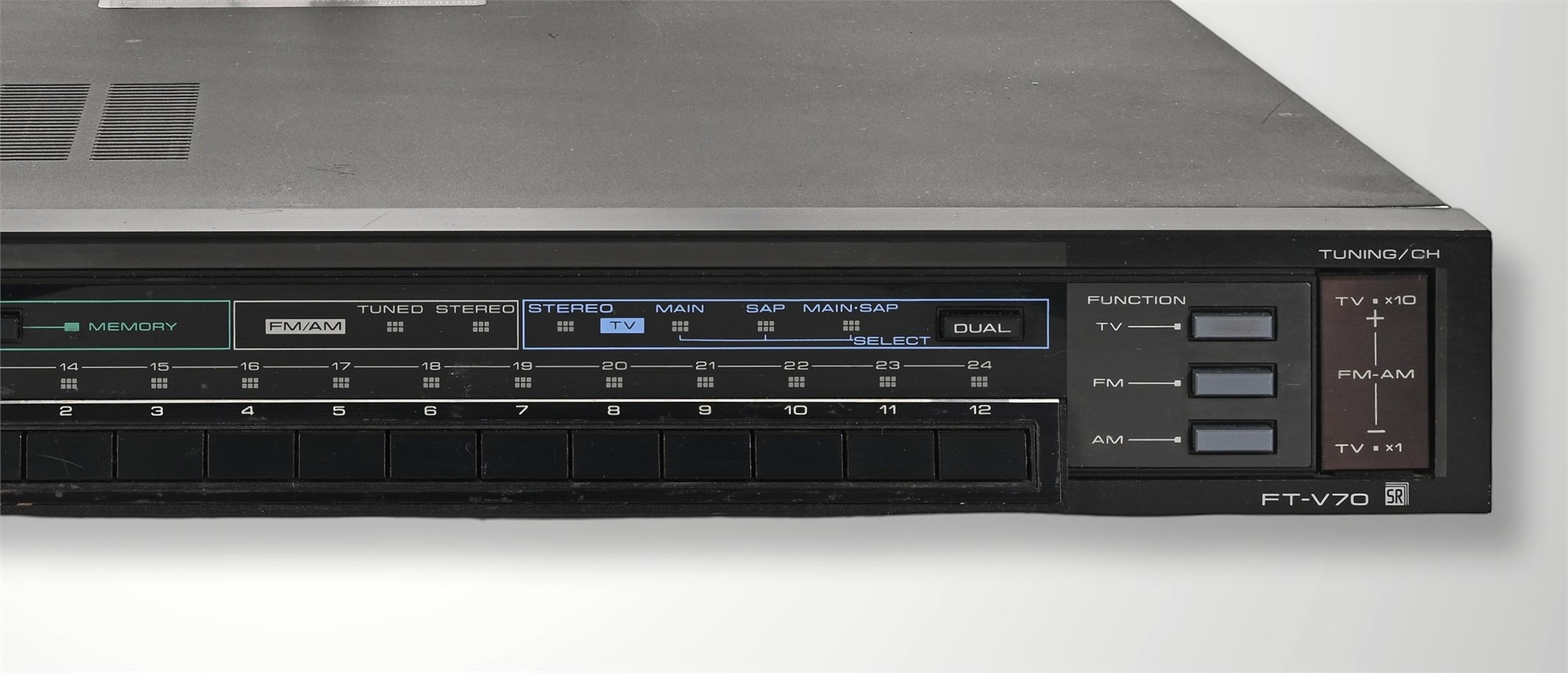

Vintage Pioneer FT-V70 Stereo TV/FM/AM Digital Synthesizer Tuner, maker marked and made in Japan. Produced in the mid-to-late 1980s, this model combines digital precision tuning with multi-band versatility for FM, AM, and TV audio reception. Designed for rack systems or standalone use, it offers both analog and digital display readouts, memory presets, and high-grade signal separation. A fine example of Pioneer’s Japanese engineering, ideal for audiophiles seeking authentic vintage sound.
Specifications:
Model: FT-V70
Tuning Bands: TV (VHF 2–13, UHF 14–83), FM, AM
System: NTSC broadcast plan
Preset Memory: User-programmable station presets
Output Level: 500 mV / 3.9 kΩ (Main +25 kHz) RCA L/R
Antenna Inputs:
- FM: 75 Ω unbalanced (F-type)
- AM: Loop antenna terminal
- TV: VHF/UHF F-type connectors
Performance:
Sensitivity: 18 µV / 75 Ω (TV FM/AM)
S/N Ratio: 65 dB (Mono), 60 dB (Stereo)
Distortion: 0.3% (Mono), 0.5% (Stereo)
Stereo Separation: 35 dB @ 1 kHz

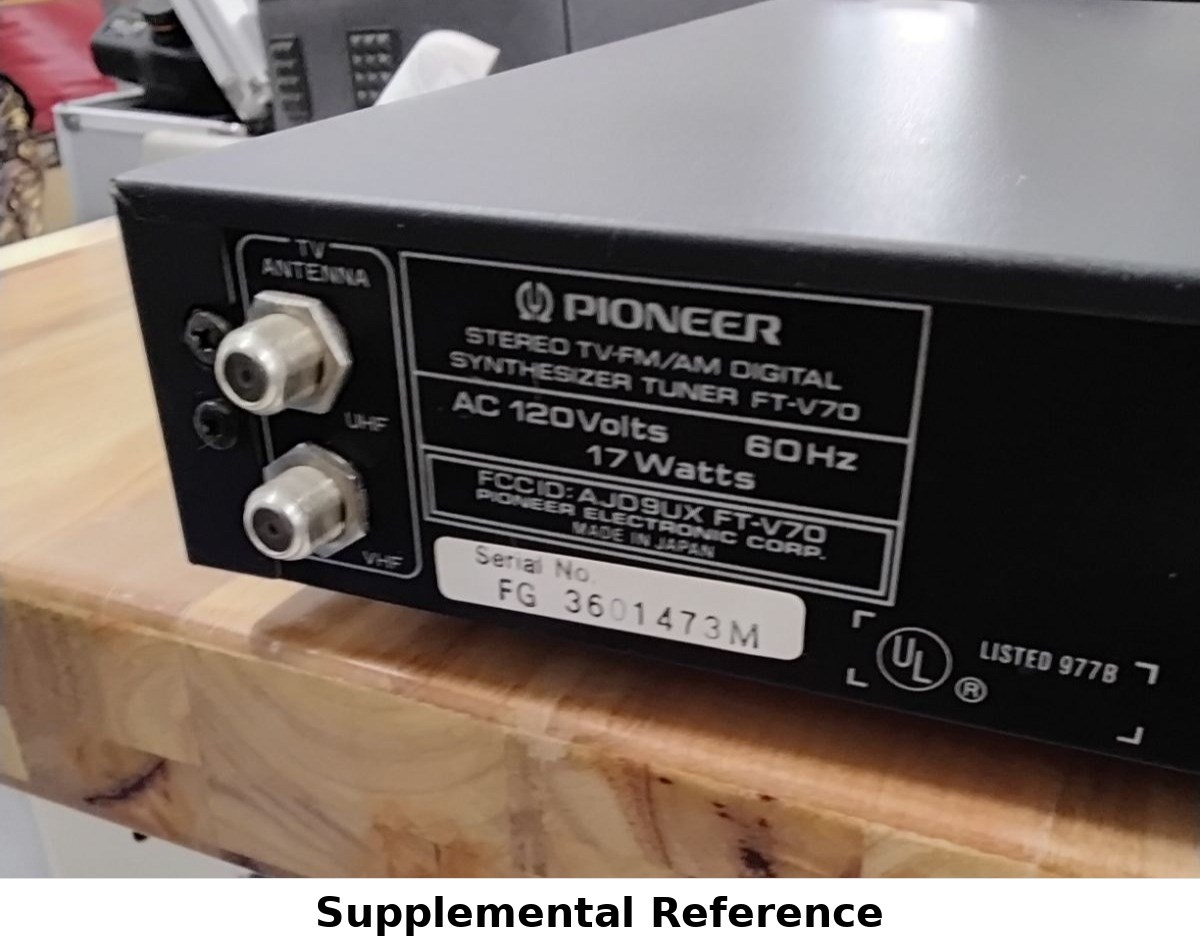

Power Requirements: AC 120 V 60 Hz
Power Consumption: 17 W
Made in Japan
Condition:

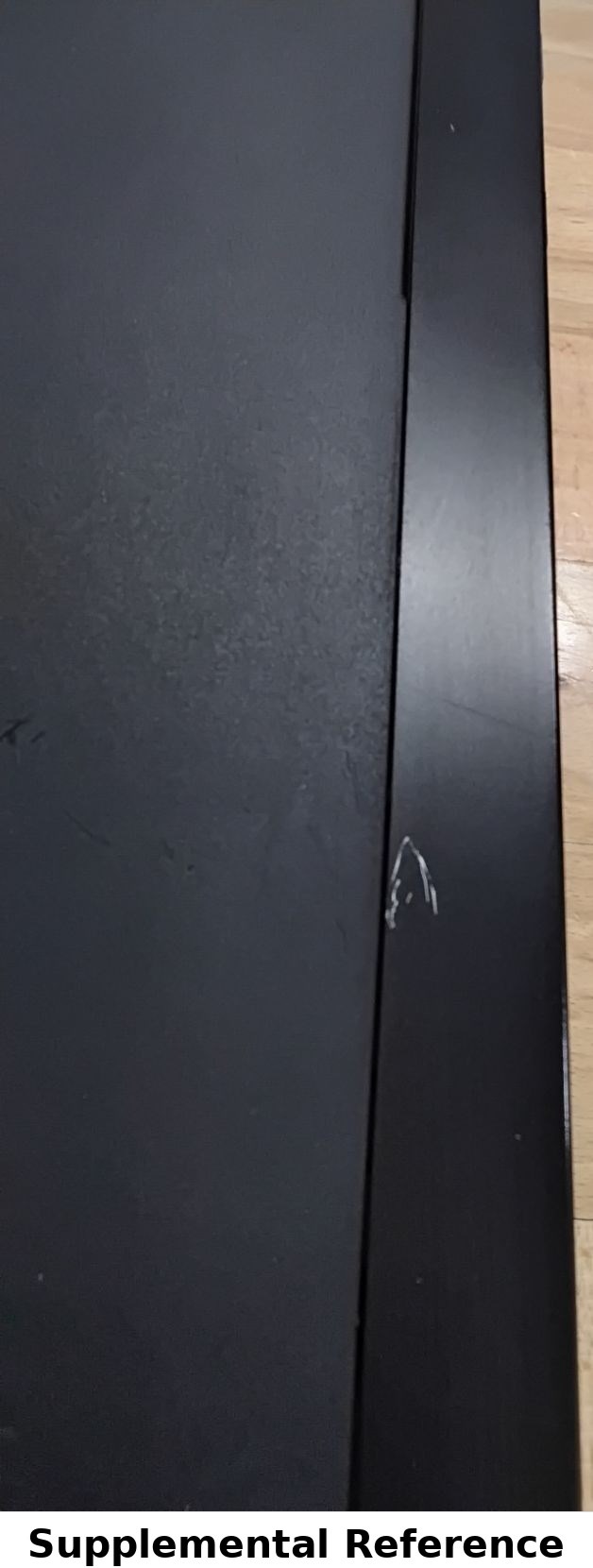

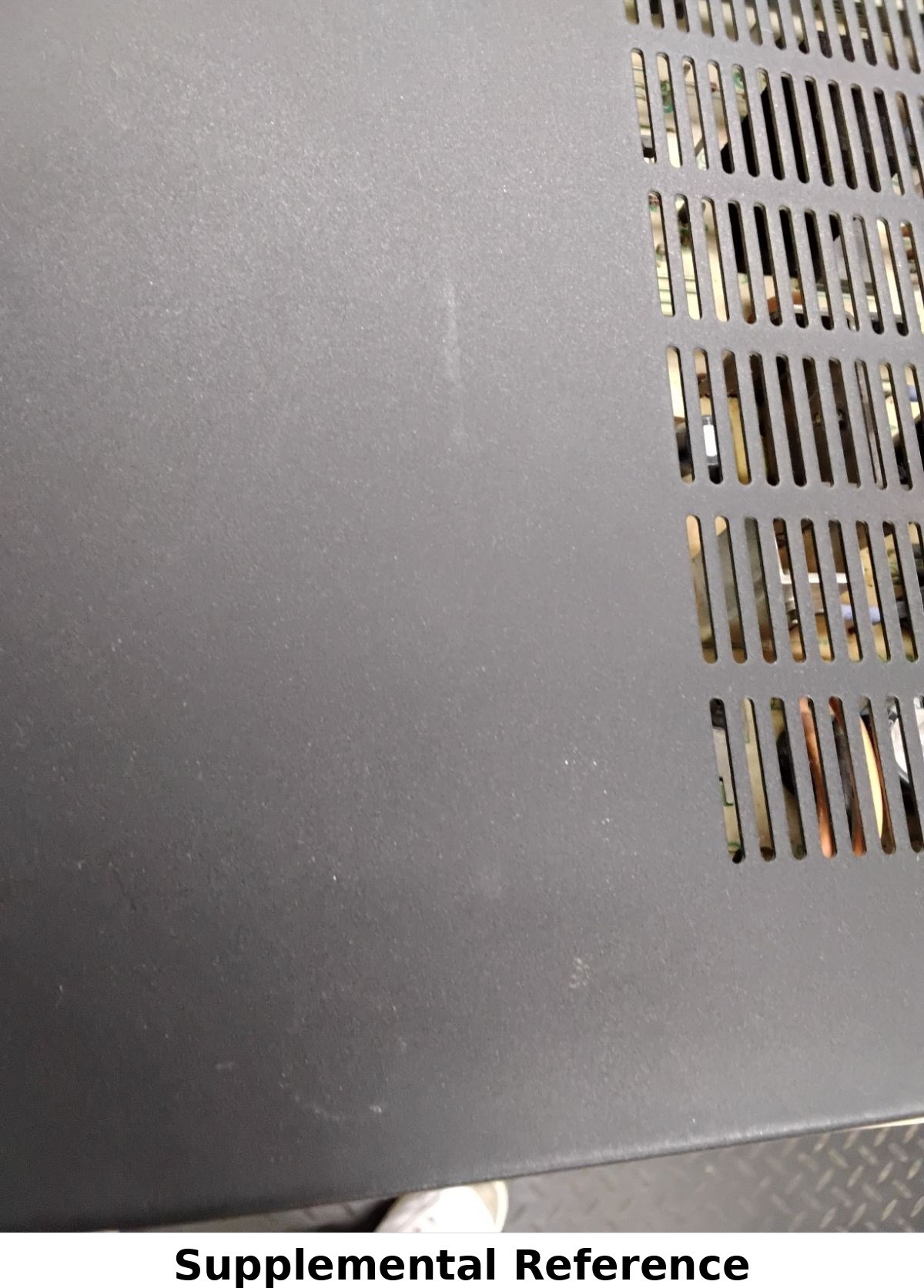

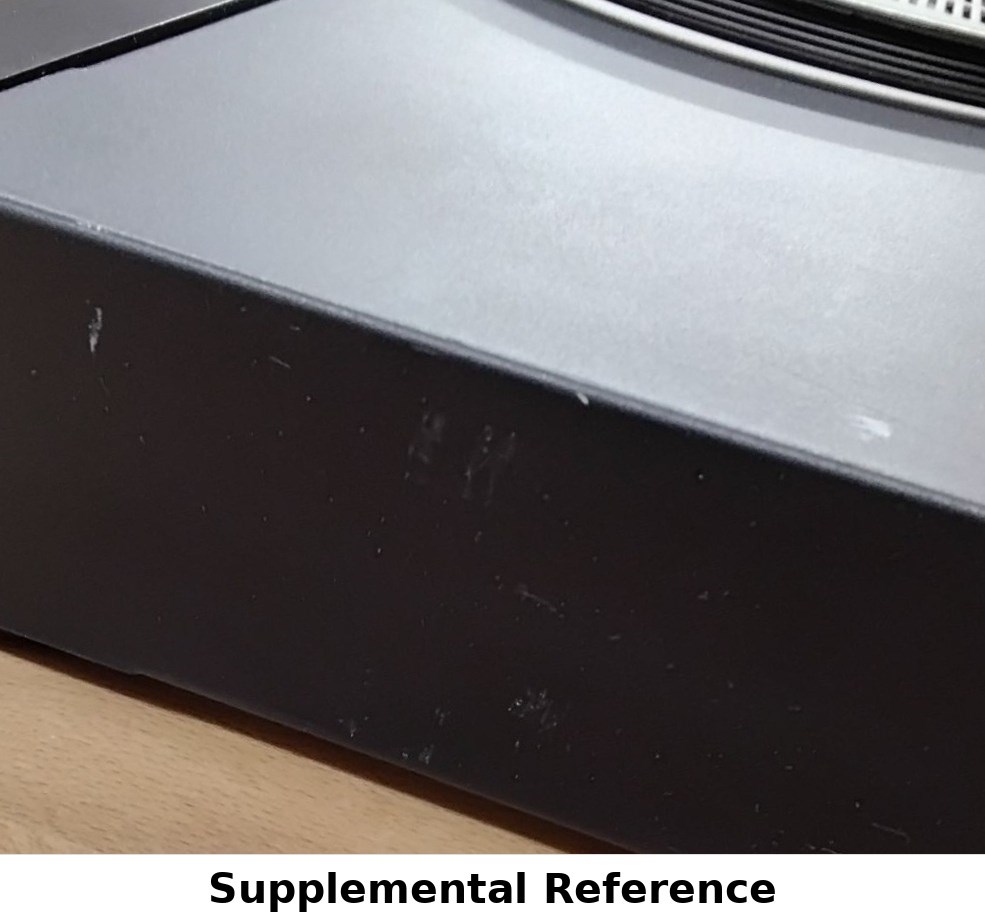

Good overall condition and fully functional. Tested and working properly. Shows signs of normal use, with some scuffs to the top surface but no remarkable damage.
Dimensions:
Overall: 16-9/16 W × 2-3/8 H × 12-1/2 D in (420 × 59 × 318 mm)
Weight: Approx. 9 lb 11 oz (4.4 kg)
