Tempur-Pedic Advanced Ergo System Split Cal King Adjustable Bed Set

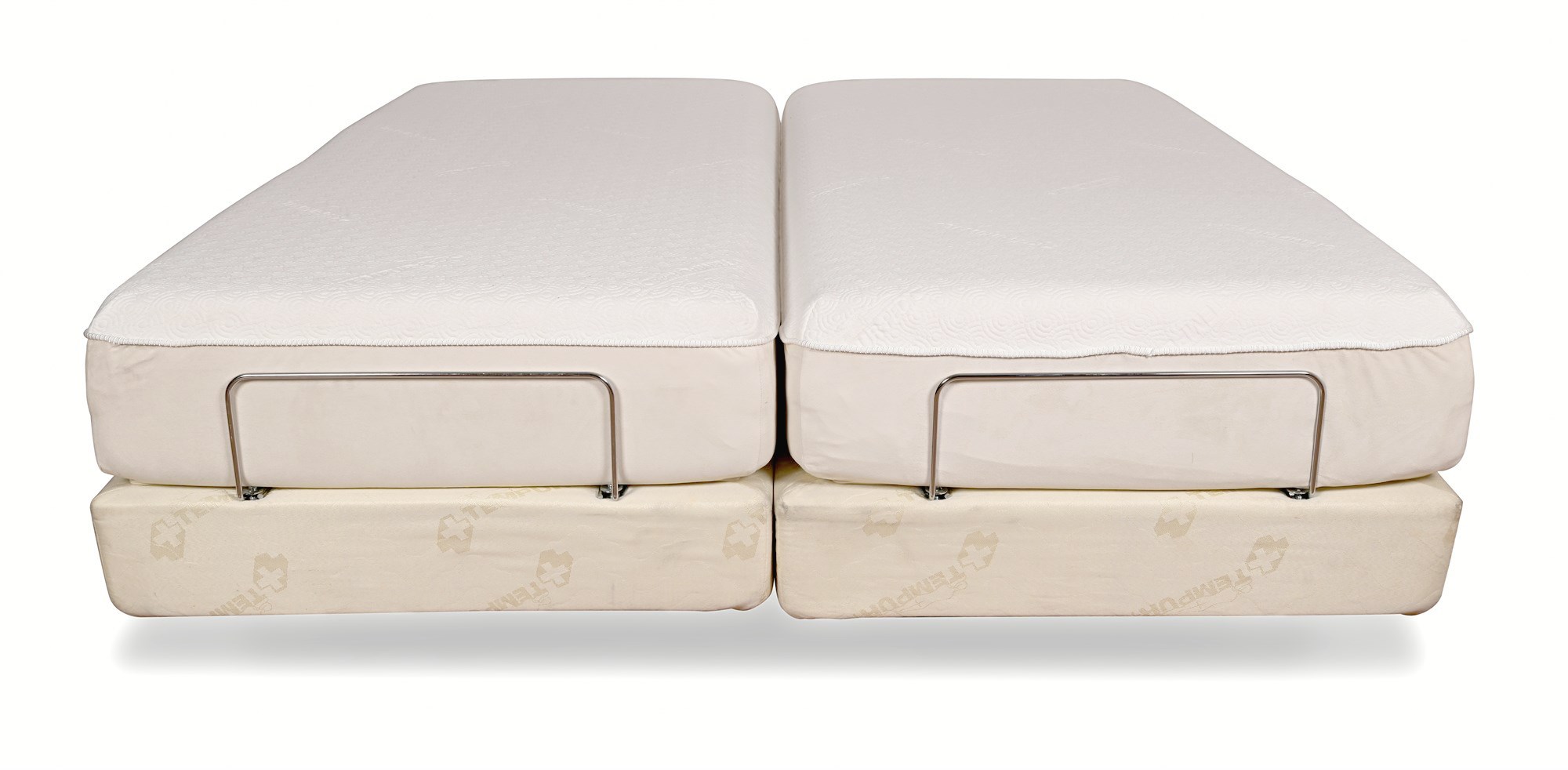

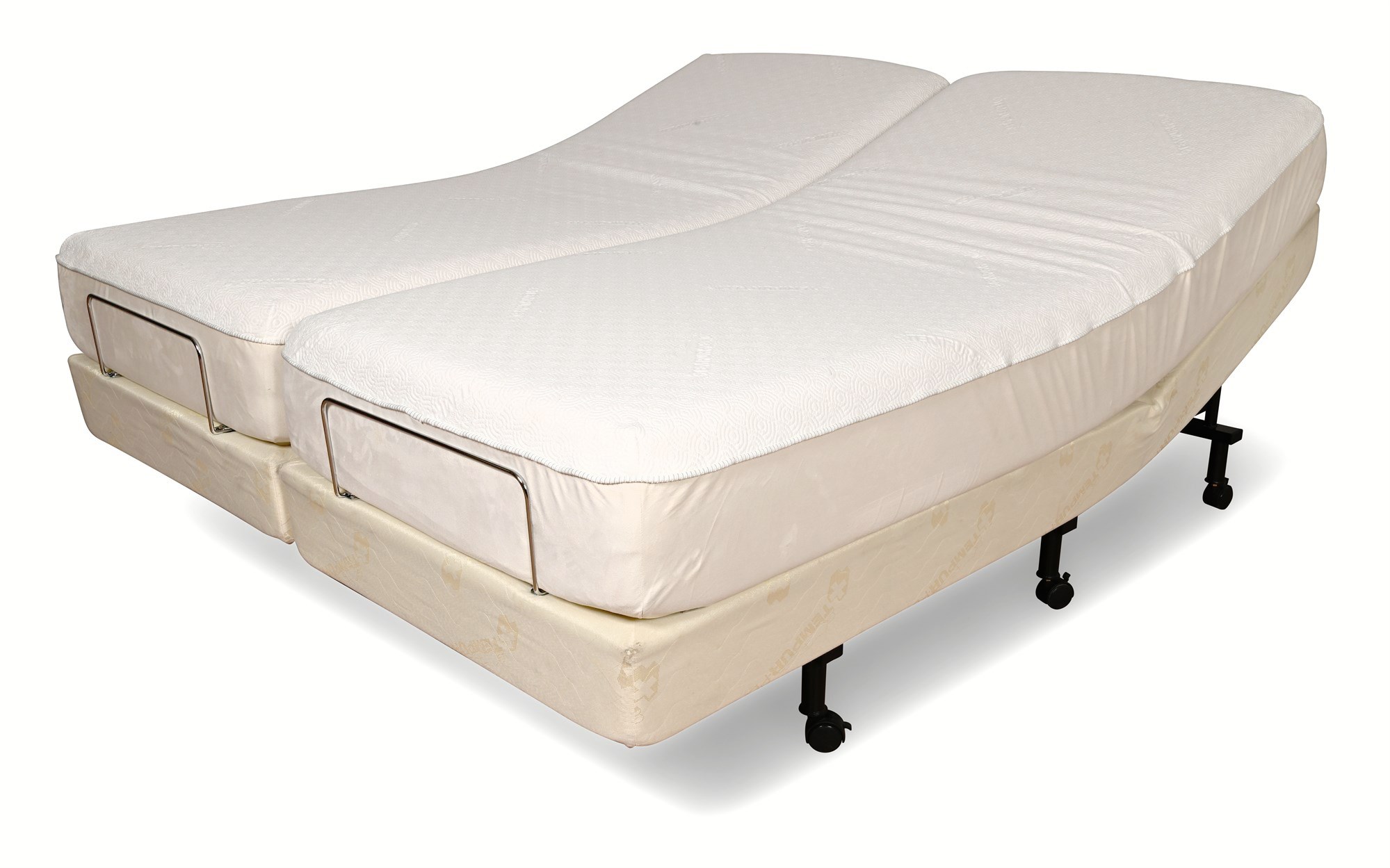

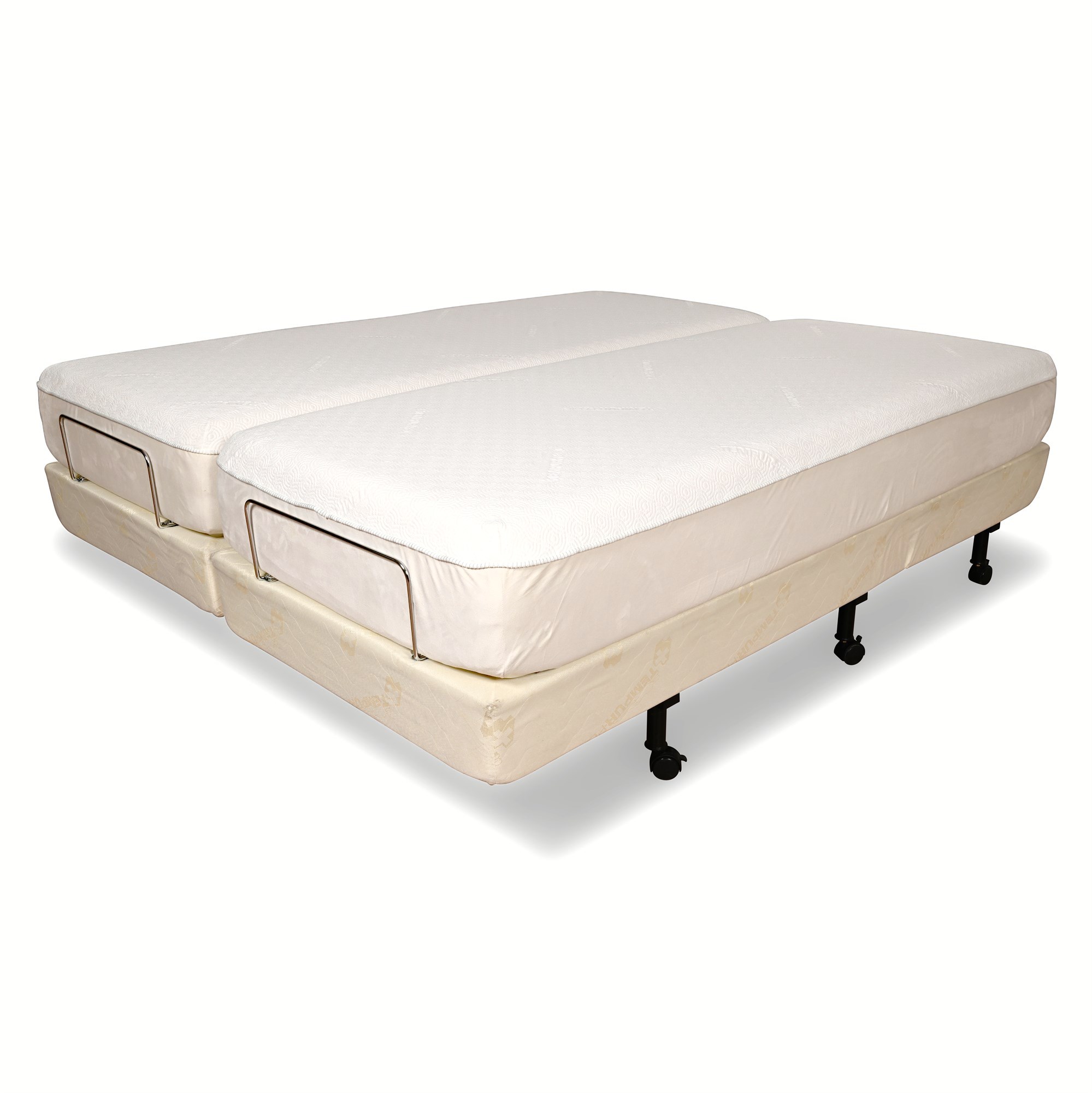

Premium Tempur-Pedic Advanced Ergo System split California king adjustable bed set, Model A-AB-A18-WW (Product Code A164-A), featuring dual independent Tempur bases and two Cloud Supreme Split Cal King mattresses (Model K09 PT-0028-A / B).

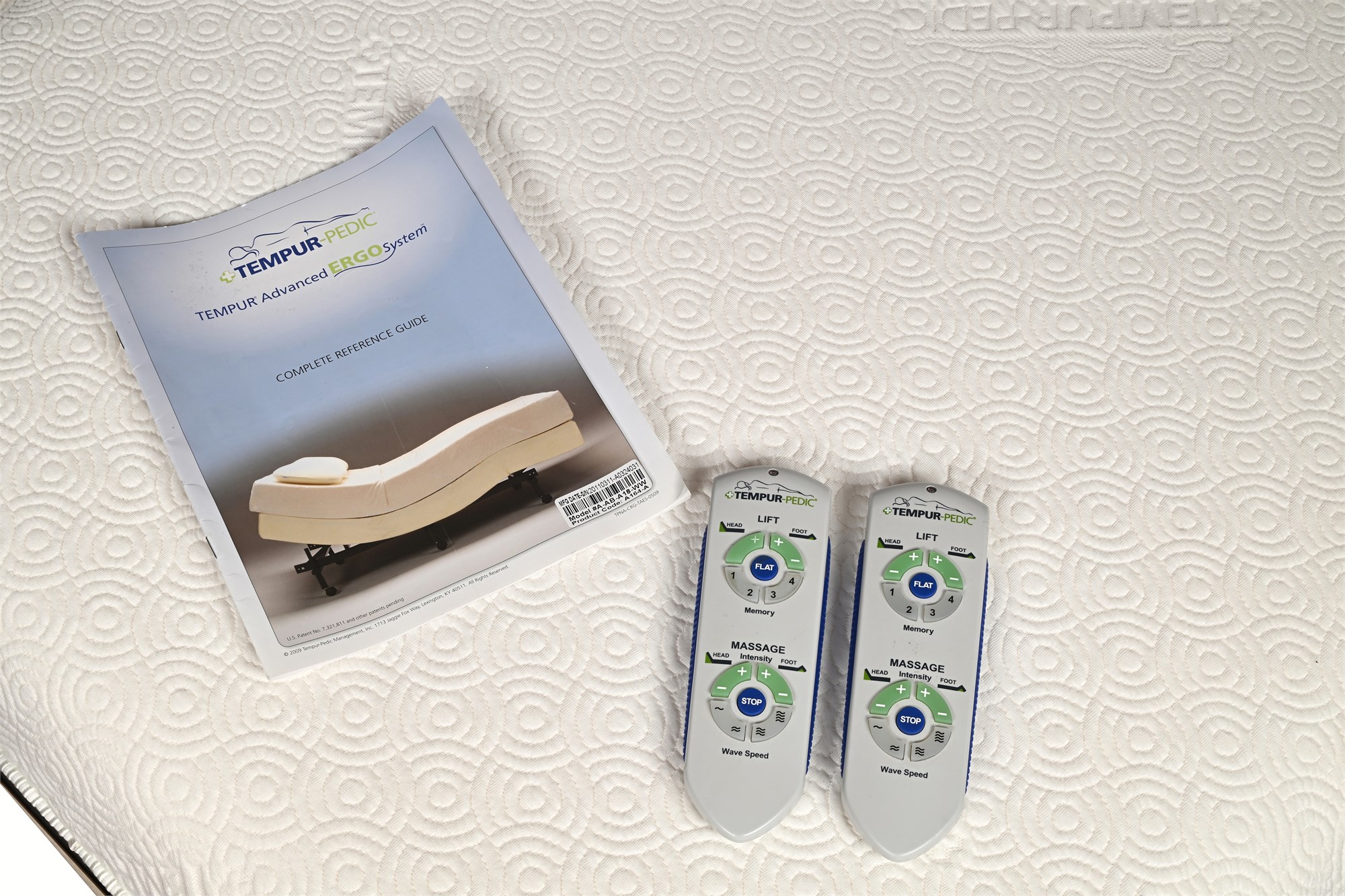

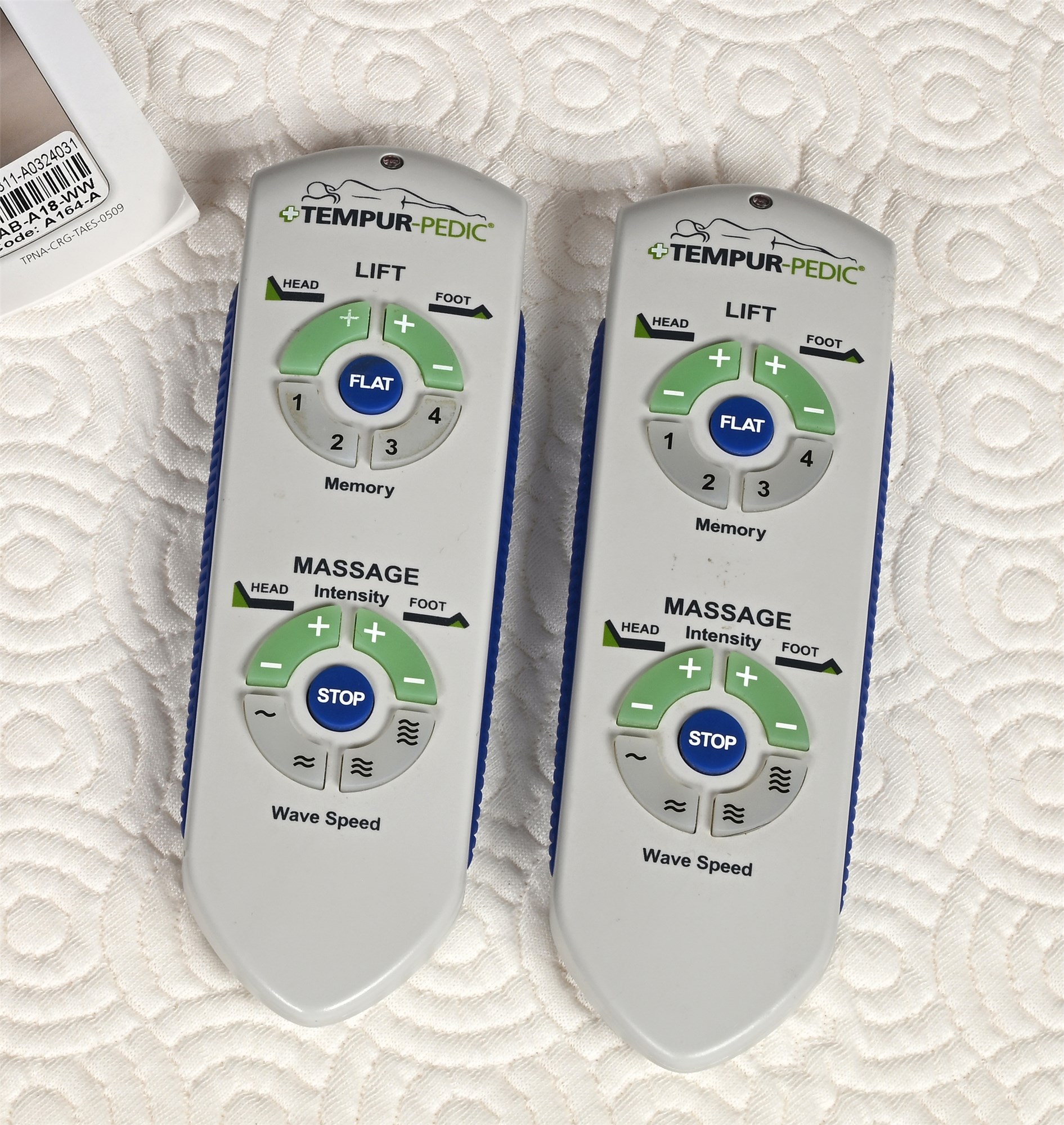

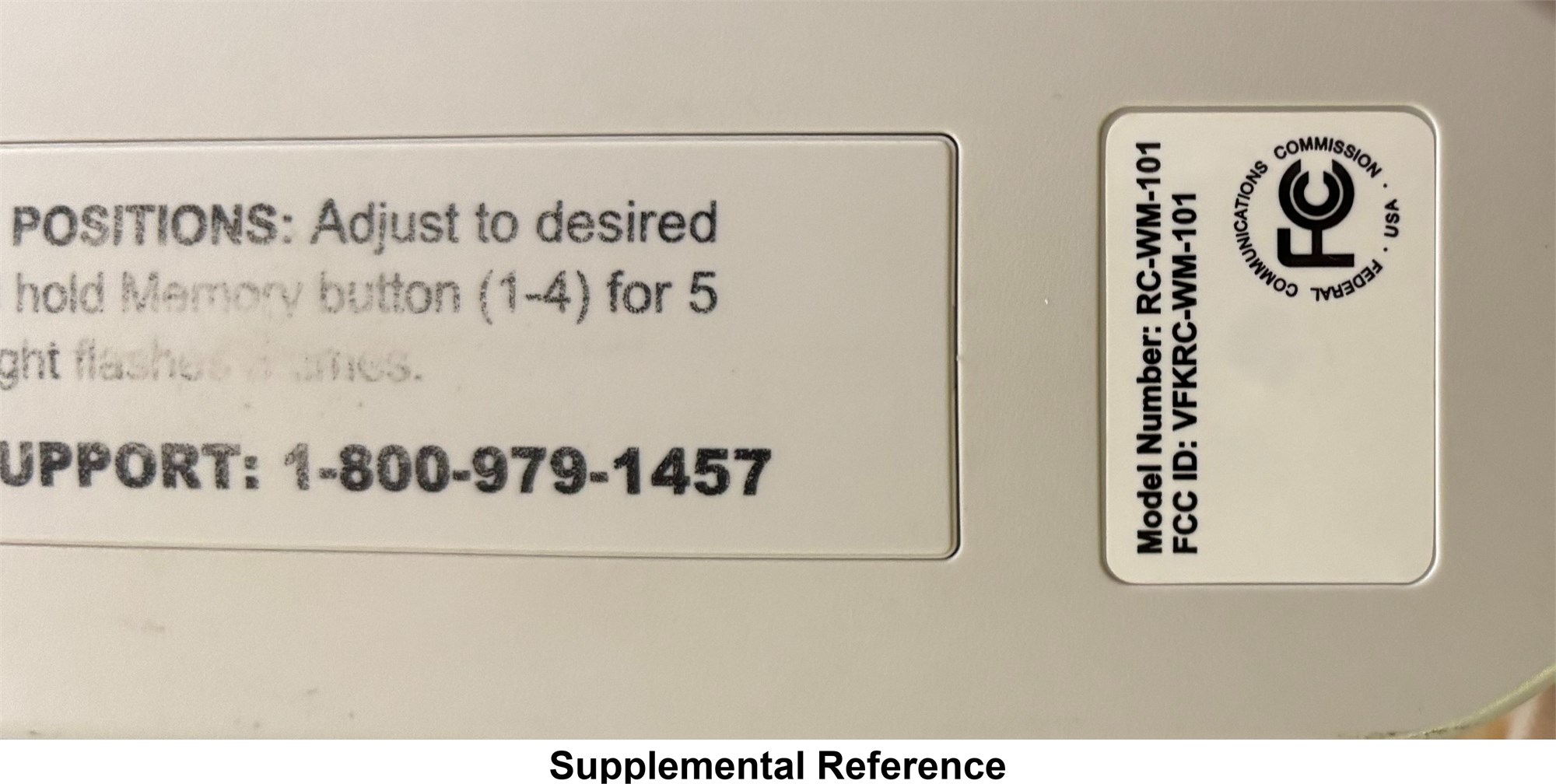

Each base offers independent head and foot articulation, four programmable memory positions, and dual-zone massage with adjustable wave speed and intensity. The system includes both original Tempur-Pedic wireless remotes (Model RC-WM-101), allowing effortless adjustment of all comfort settings.

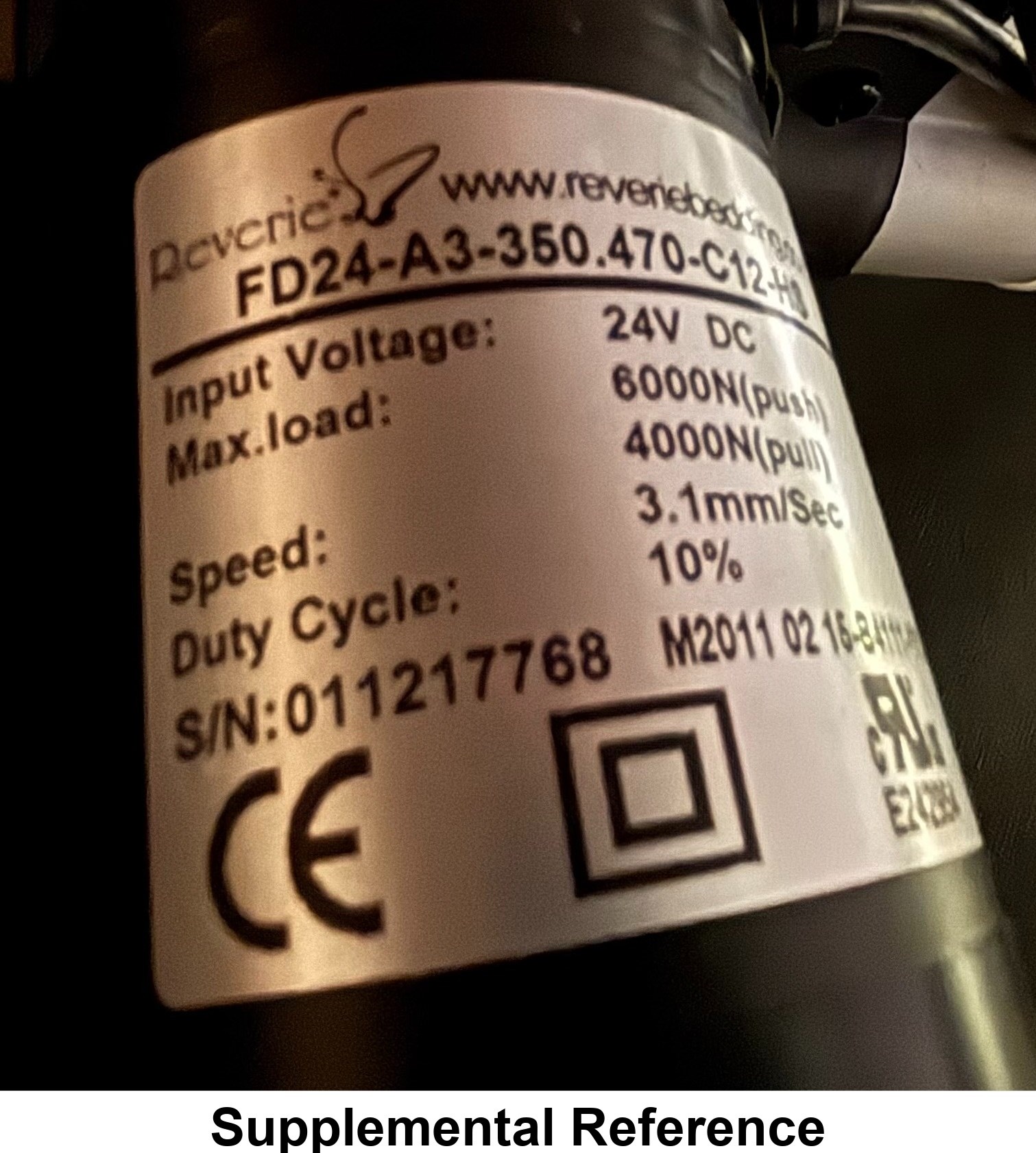

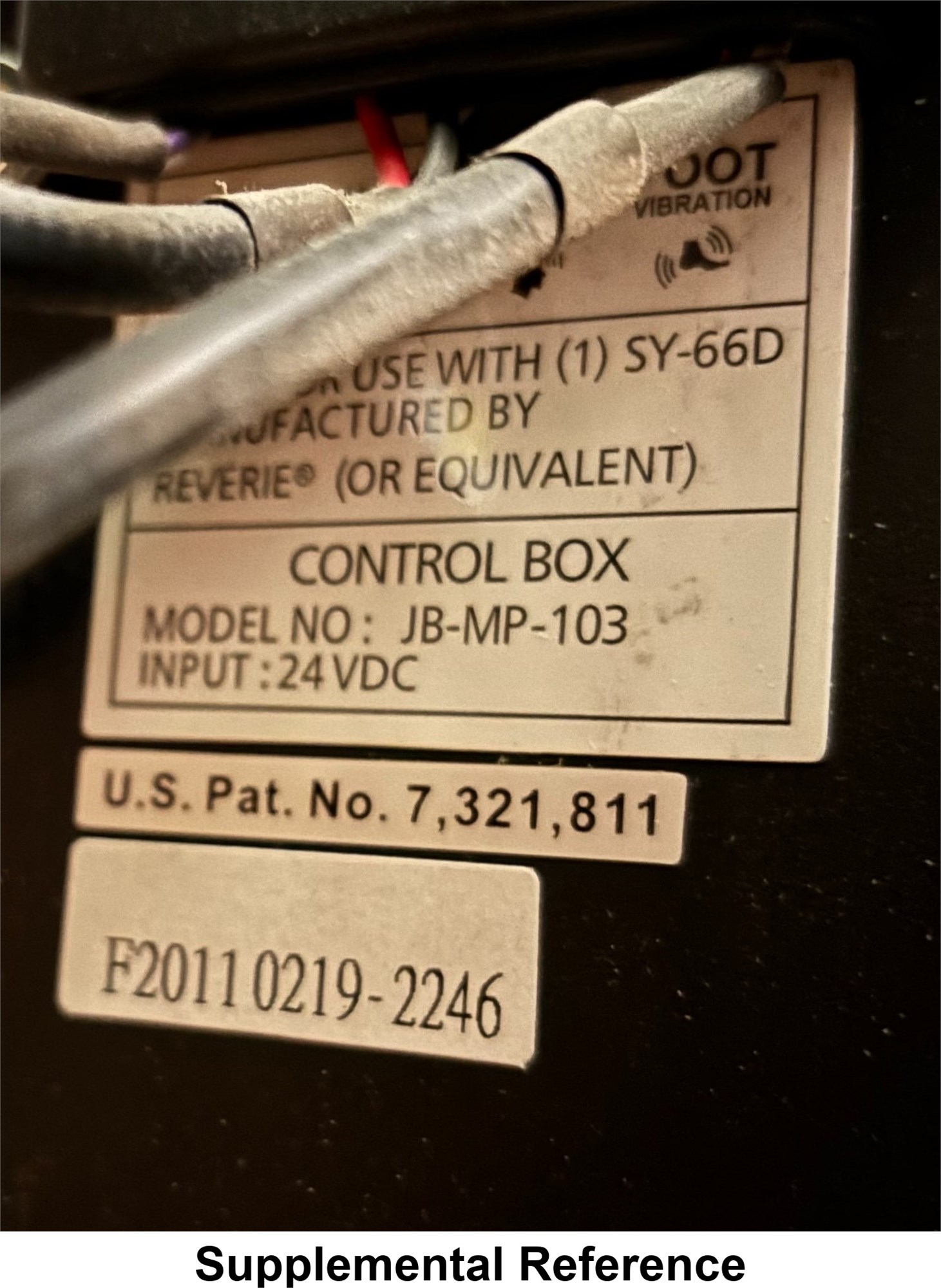

Engineered in partnership with Reverie®, the bases feature robust 24V DC linear actuators (Model FD24-A3-350.470-C12-HH), a 24V DC control box (JB-MP-103), and power supply (Model SY-66D REV02). Each actuator delivers up to 6000 N push / 4000 N pull, with smooth, quiet performance and a 10% duty cycle. Safety functions include emergency power-down capability, battery backup, and overload protection.

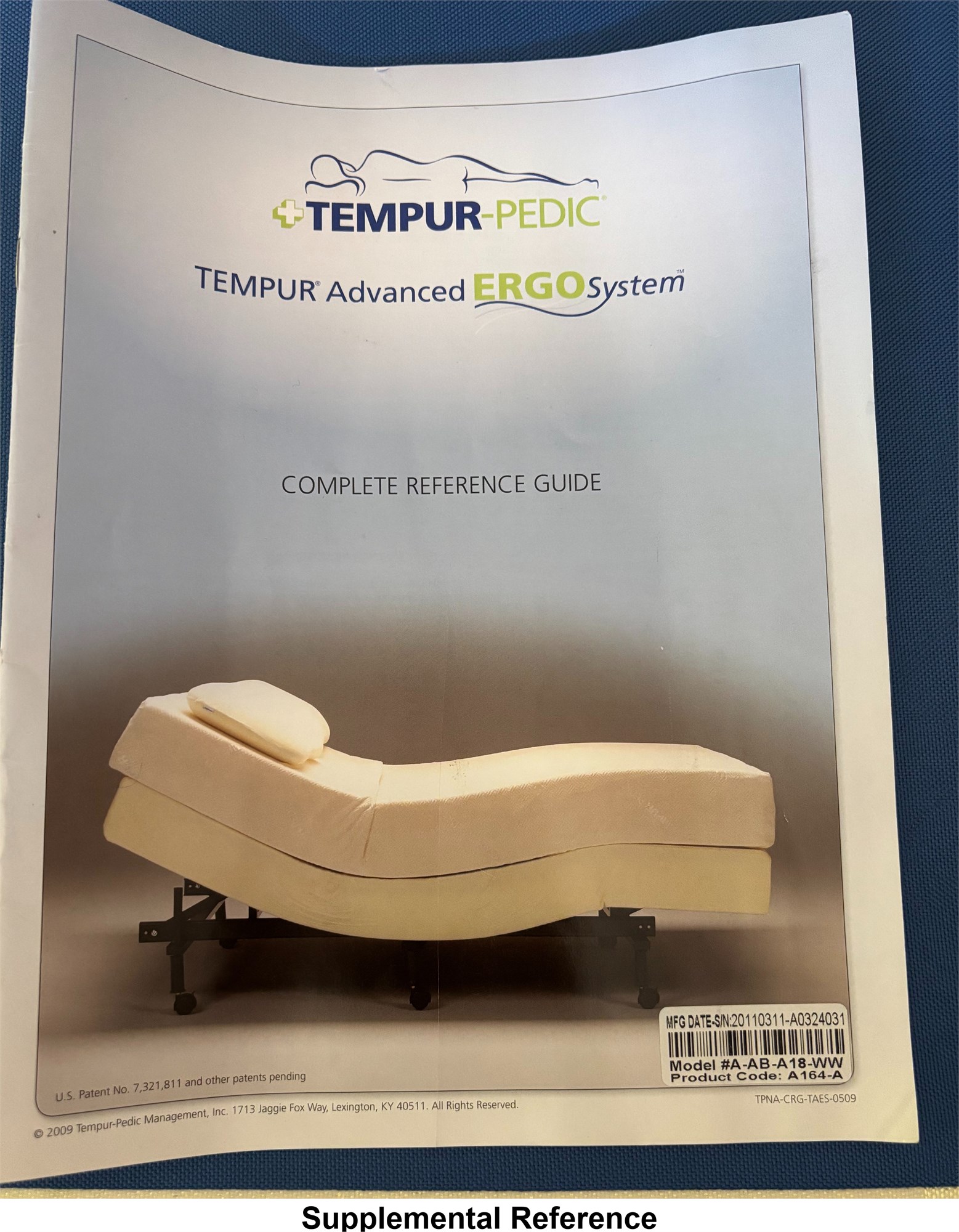

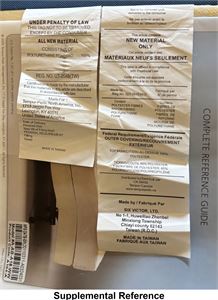

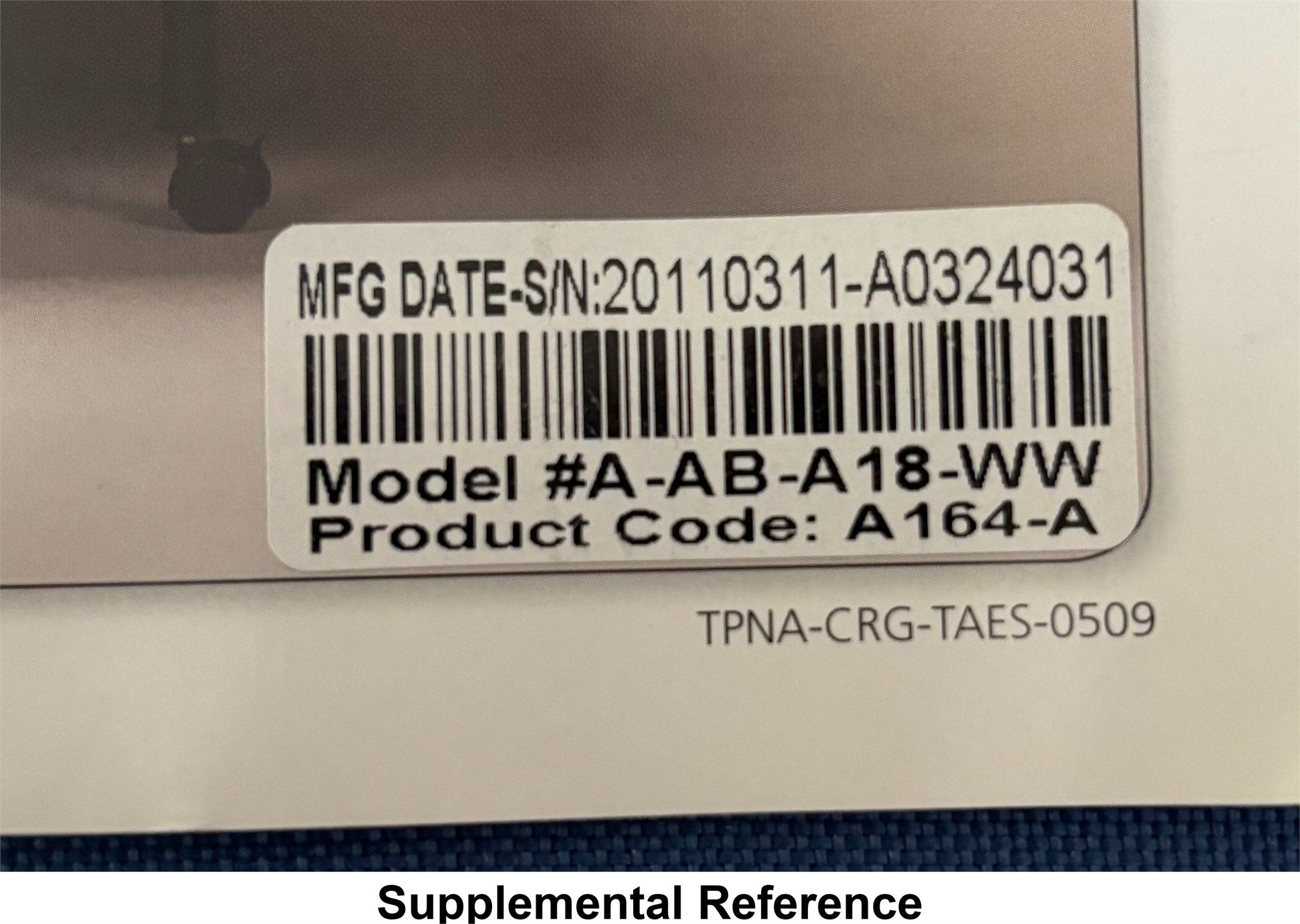

The Advanced Ergo System supports up to 1000 lbs total combined weight (users + mattress) and includes adjustable legs with casters for easy movement. Documentation, factory ID labels, and matching serial data confirm U.S. Patent No. 7,321,811 and manufacture by Tempur-Pedic North America Inc., Lexington, KY. This configuration provides customizable comfort, high-end craftsmanship, and enduring performance — one of Tempur-Pedic’s most sought-after ergonomic base systems.

Specifications

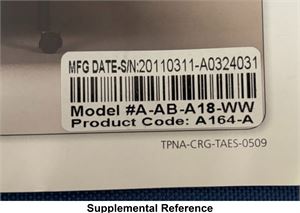

Model: A-AB-A18-WW
Product Code: A164-A
Configuration: Split California King (two independent bases)

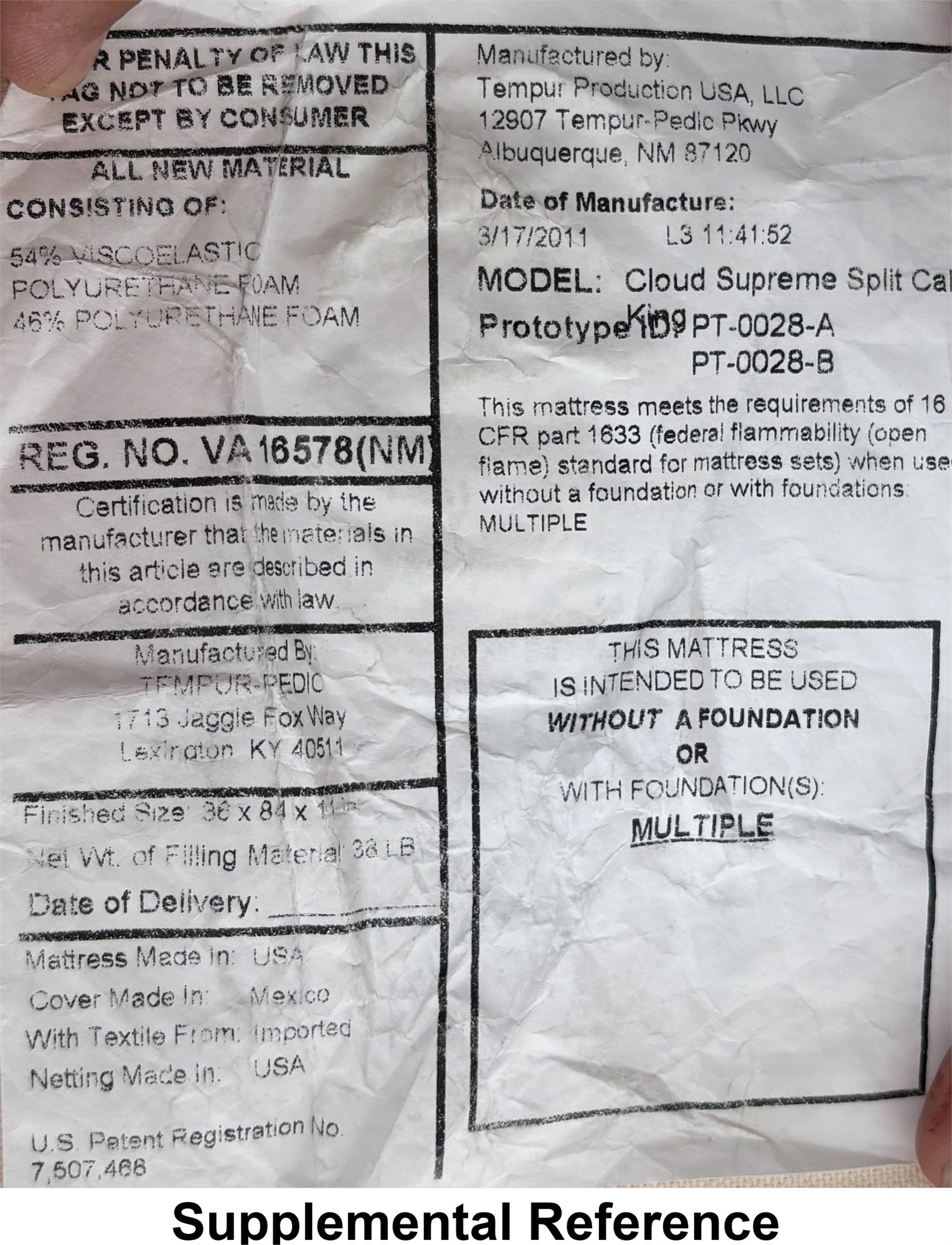

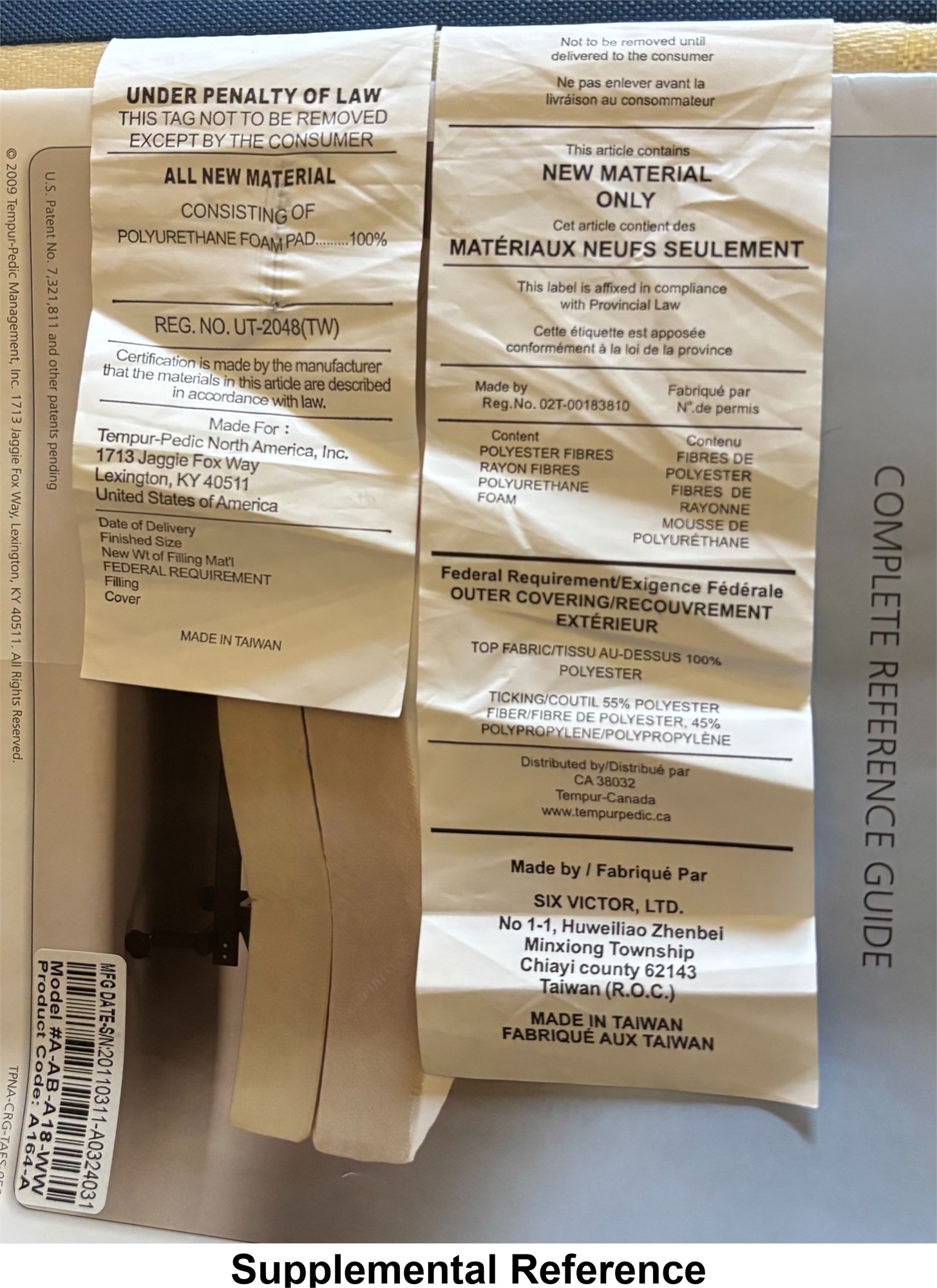

Mattress Model: Cloud Supreme Split Cal King (K09 PT-0028-A/B)
Manufacture Dates: March 11 2011 (bases), March 17 2011 (mattresses)
Control: Wireless RF remote (433.92 MHz)
Articulation: Independent head and foot lift
Massage: Dual-zone massage (head + foot) with variable intensity & wave speed
Memory Presets: Four (4) user-programmable + Flat
Emergency Lowering: Battery backup (9 V)

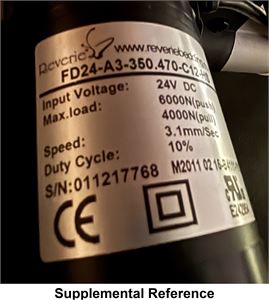

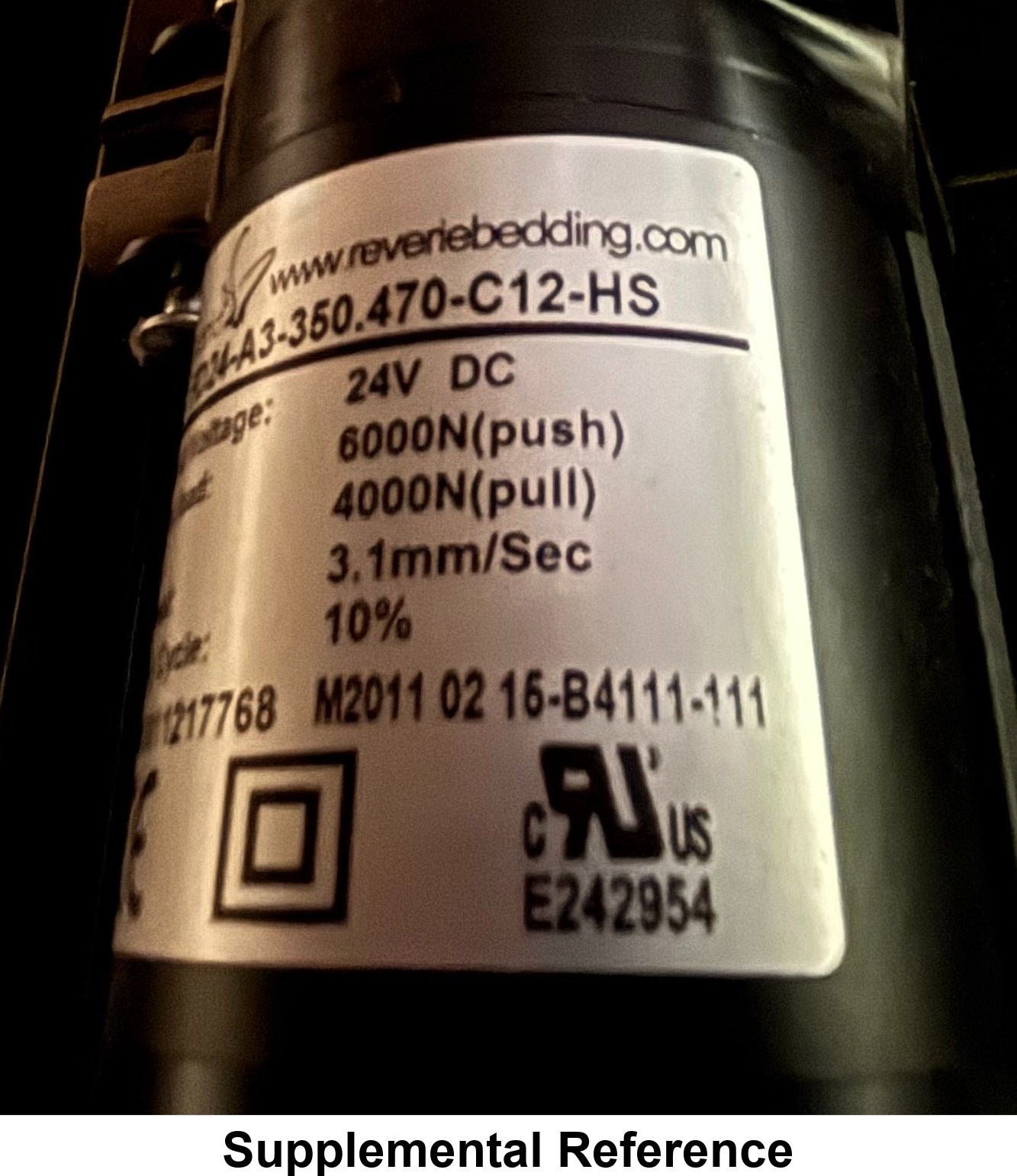

Motor Rating: 24 V DC input, 6000 N (push) / 4000 N (pull), 3.1 mm/s speed

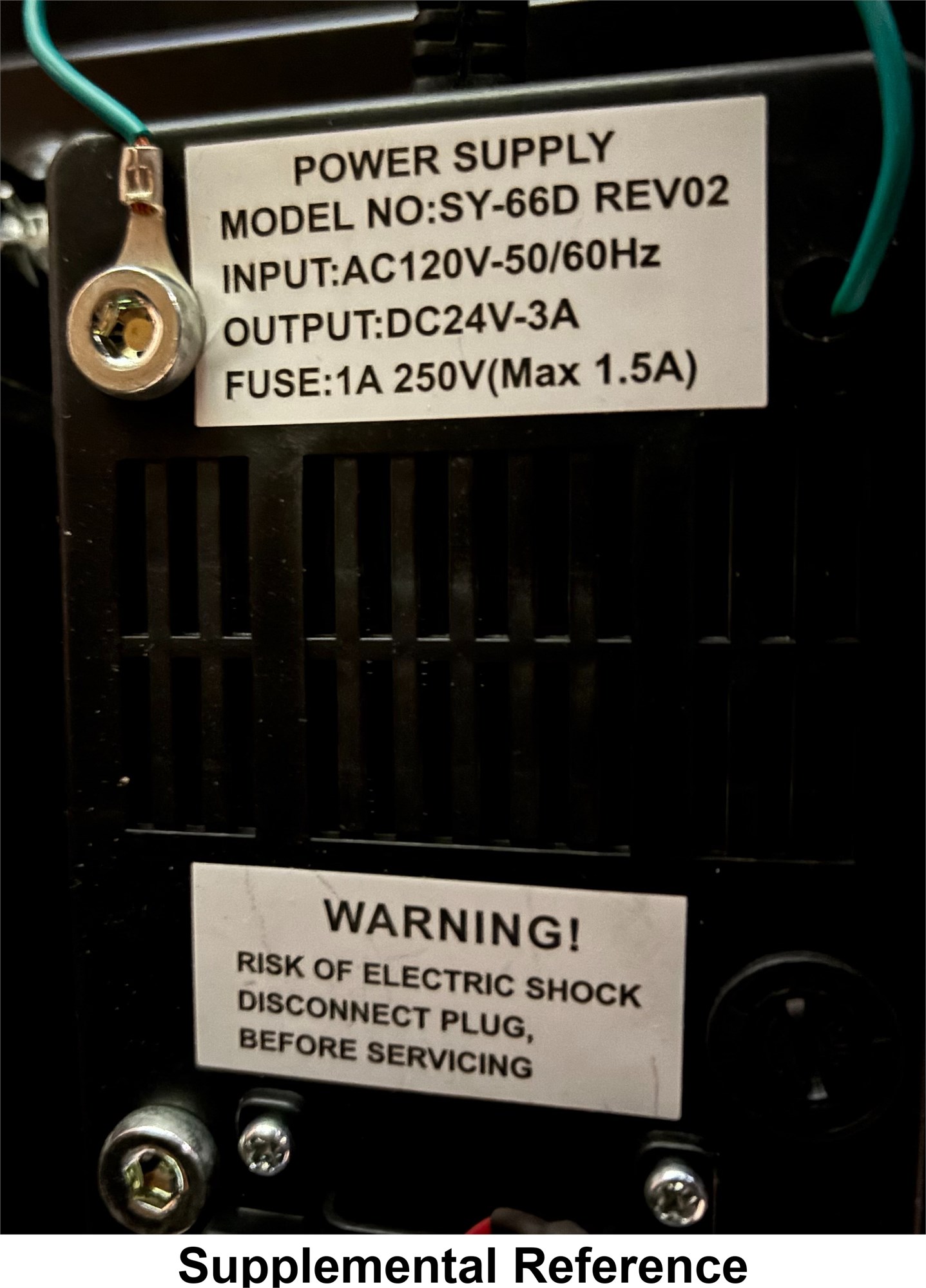

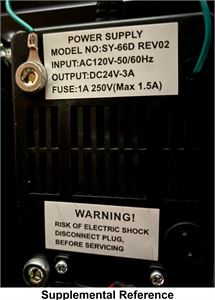

Power Supply: AC 120 V 50/60 Hz input → DC 24 V 3 A output (1 A 250 V fuse)
Duty Cycle: 10 %
Weight Capacity: Up to 1000 lb combined

Condition

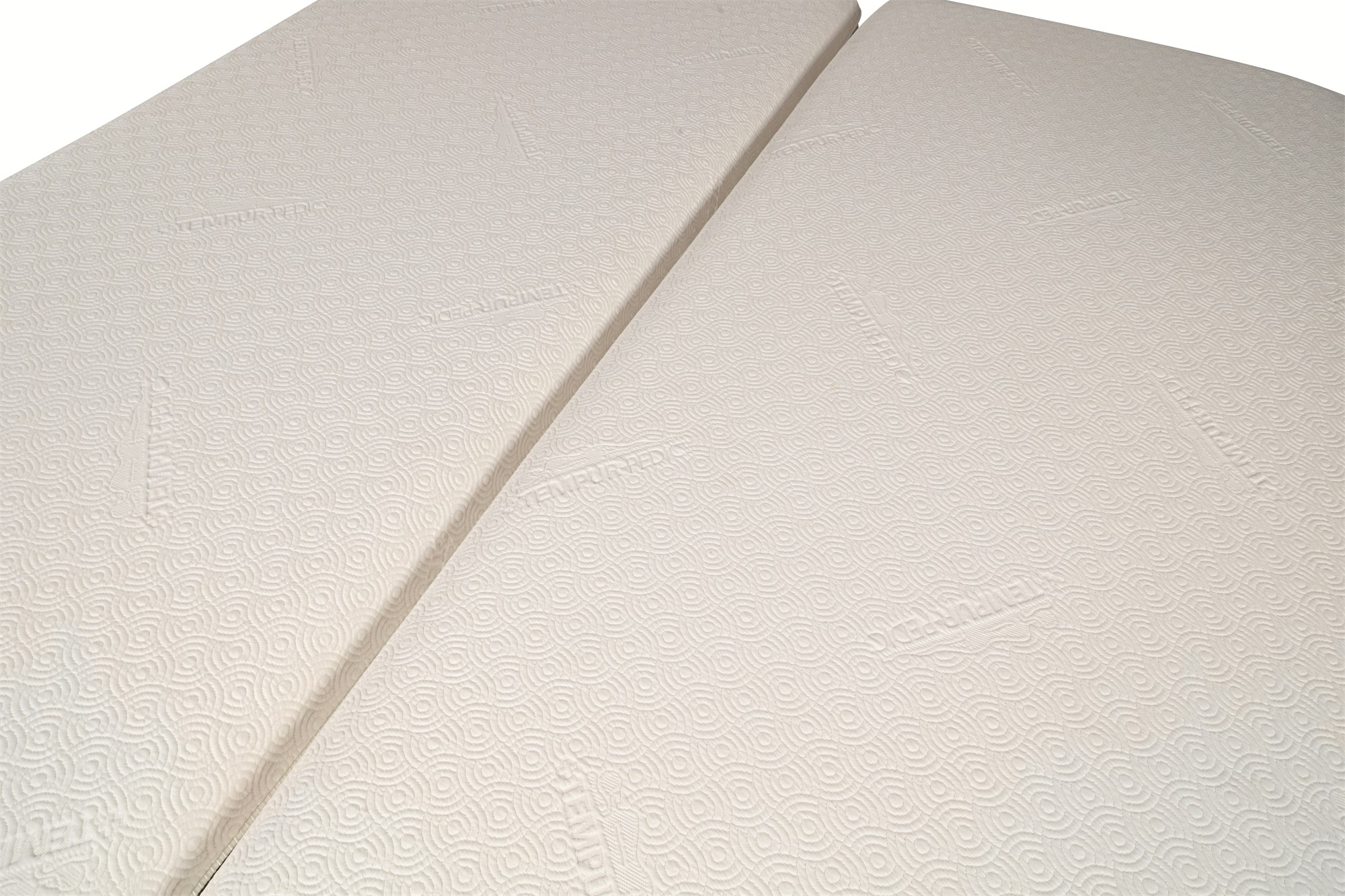

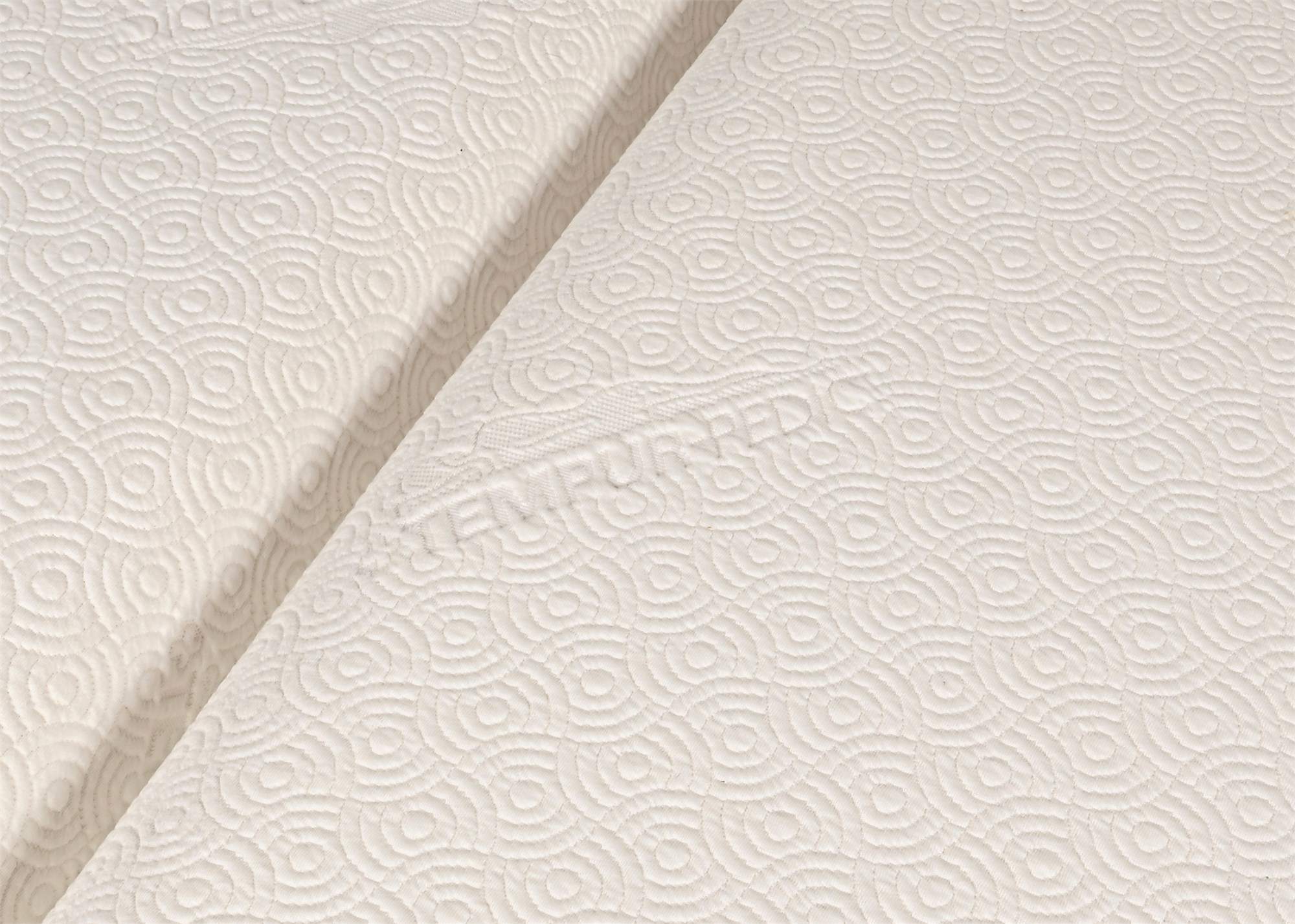

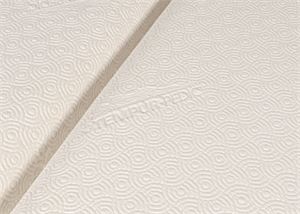

Good, fully functional, tested. Scuffing and light signs of use consistent with transport and handling. Mattresses are immaculate, clean, and free of defects. Cosmetic wear present on Tempur-Pedic bases from moving, but all components perform as intended.

Dimensions
Each Base: 36 in W × 84 in L × 11 in H
Combined Split Cal King: 72 in W × 84 in L × 11 in H
Adjustable Height: Approx. 15¾″ to 19¾″
(Objects shown for scale not included.)
