Renogy RSP400LSC 400W Foldable Solar Panel / Suitcase Kit – Tested, 112" Width

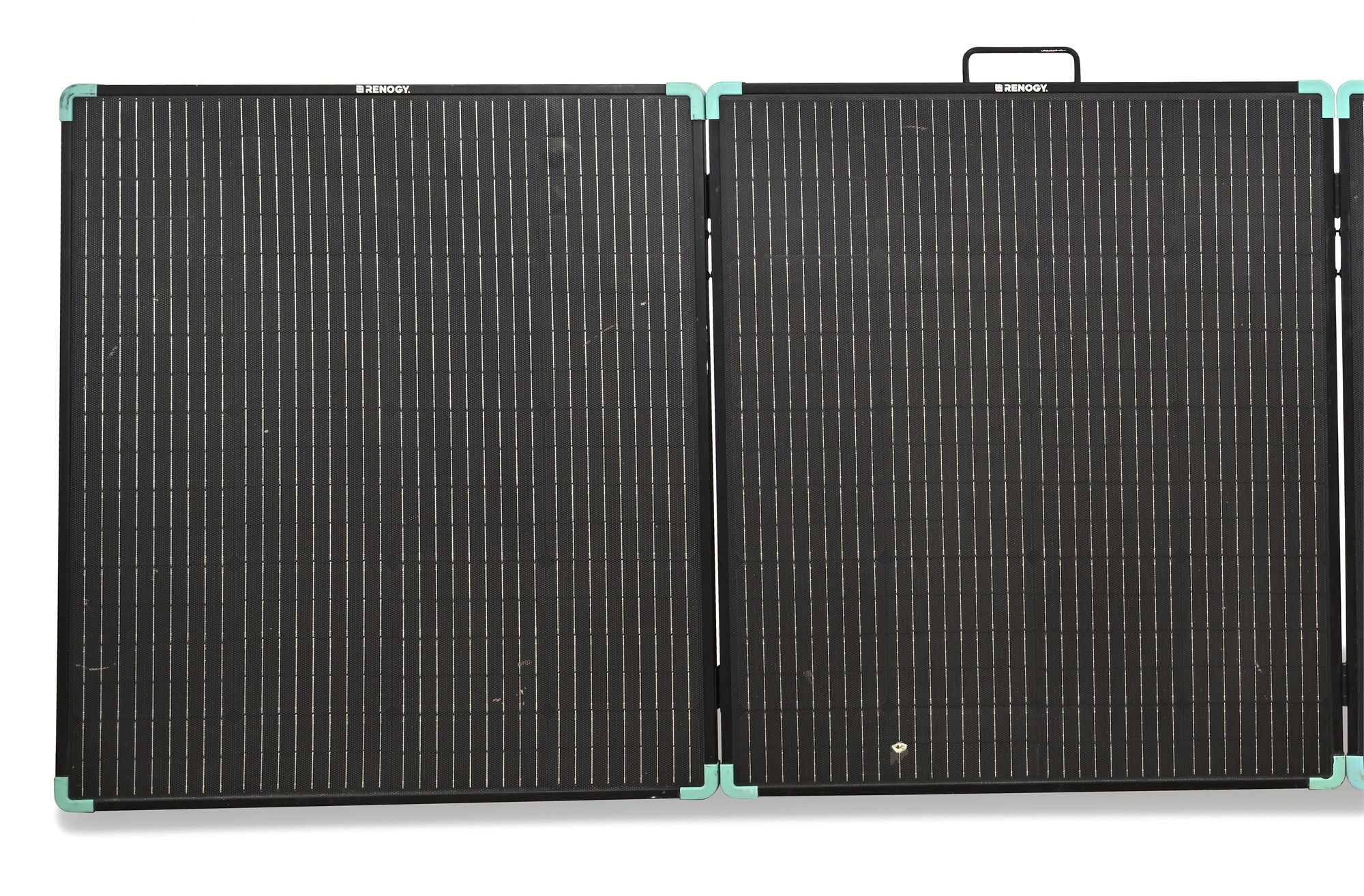

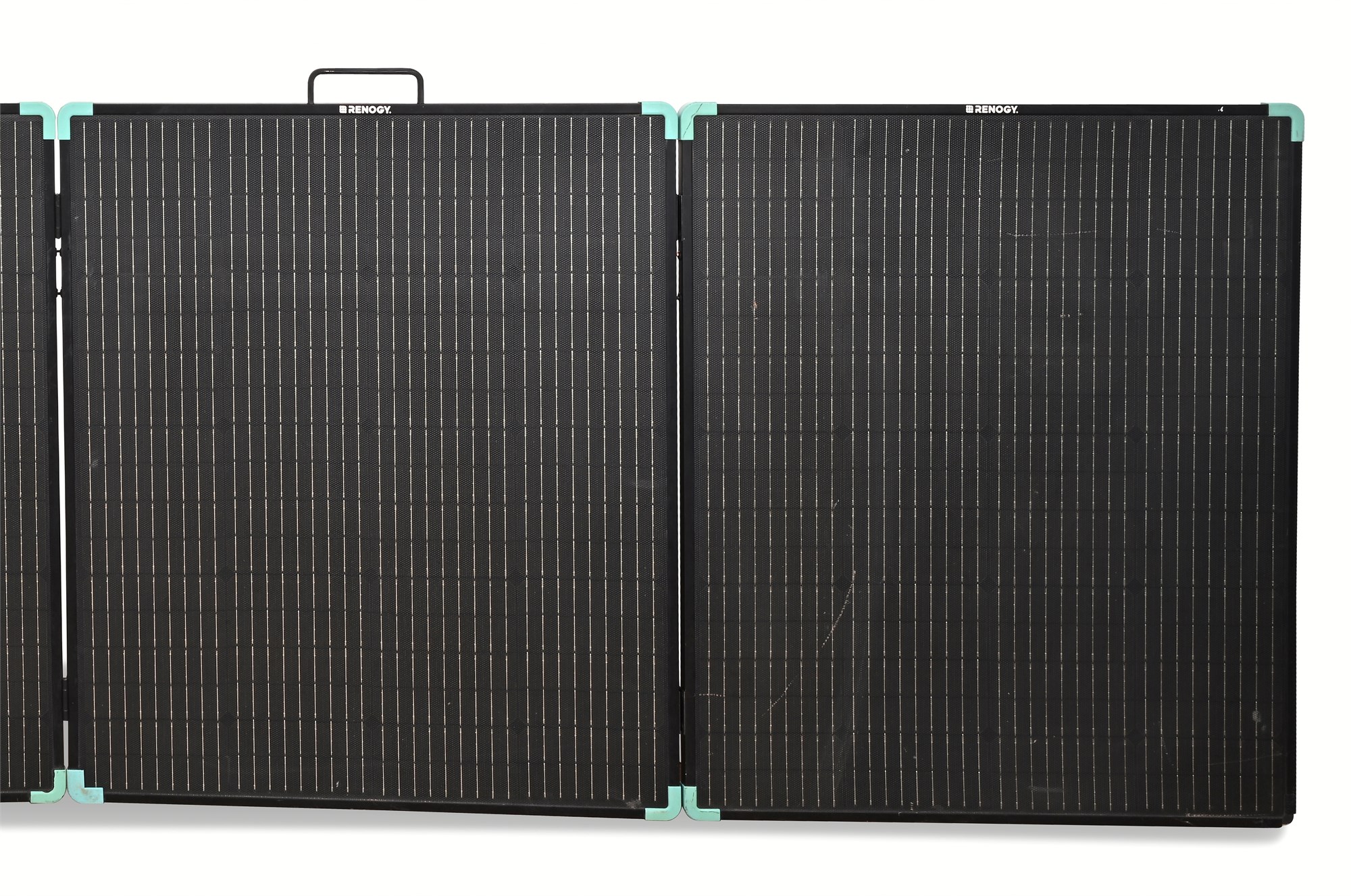

Renogy RSP400LSC 400W portable solar suitcase system featuring four foldable monocrystalline PERC panels in a durable, lightweight frame. Designed for off-grid, RV, camping, and backup power applications, this panel set delivers efficient energy production in a compact, easy-to-carry format. The integrated handle and reinforced corners ensure convenience and durability for outdoor use.

The RSP400LSC provides 400 watts of output power with an optimum operating voltage of 40.0V and current of 10.0A. It offers a high open-circuit voltage of 47.2V and a short-circuit current of 11.0A. Built with ETFE protective film and anodized aluminum framing, the unit withstands outdoor conditions with reliable long-term performance. The internal parallel wiring minimizes losses from partial shading, making it a dependable power source for solar charging stations, batteries, and mobile energy systems.

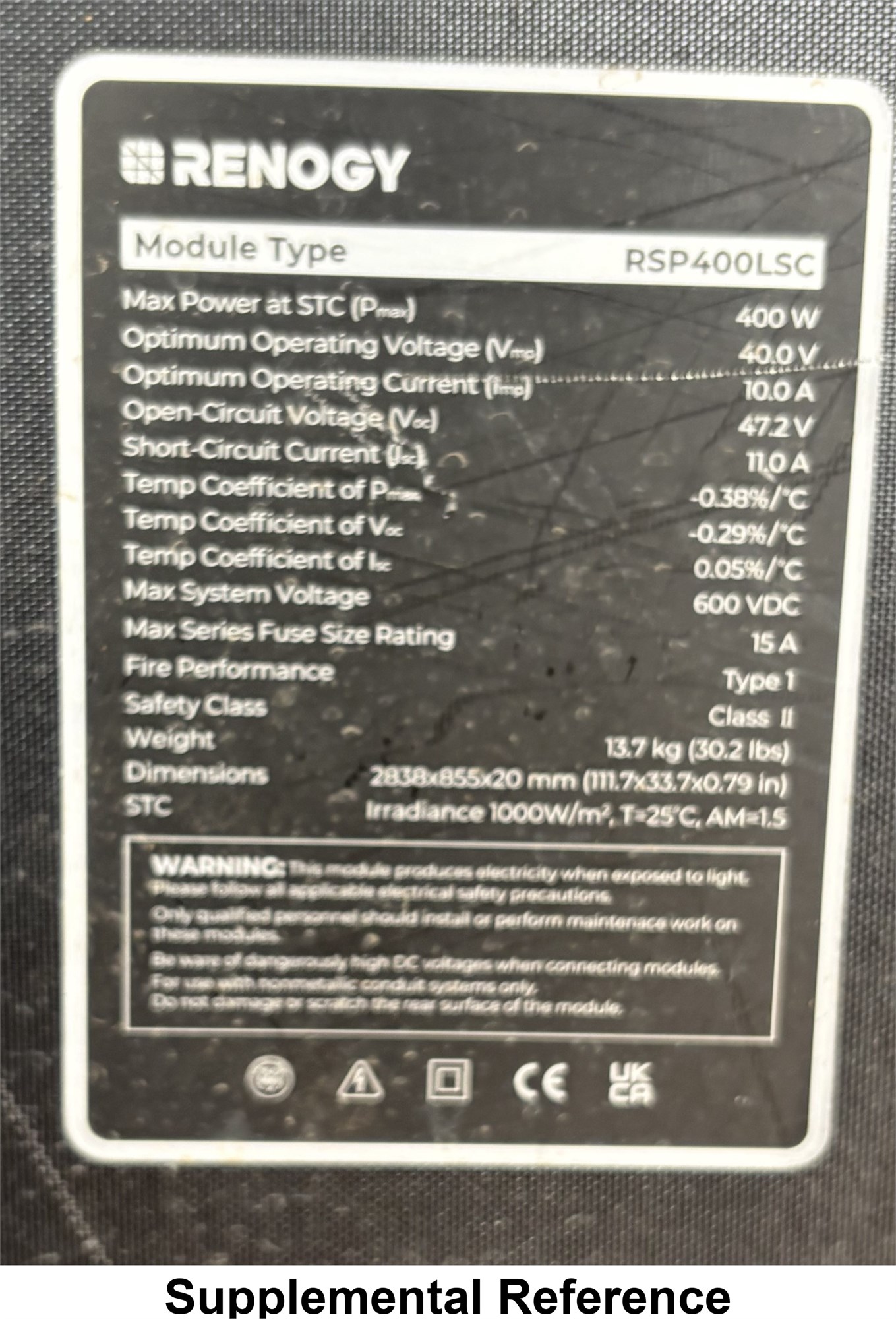

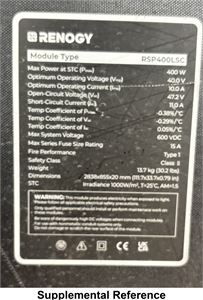

Specifications:
Electrical / Performance

• Maximum Power (Pmax): 400W
• Optimum Operating Voltage (Vmp): 40.0V
• Optimum Operating Current (Imp): 10.0A
• Open-Circuit Voltage (Voc): 47.2V
• Short-Circuit Current (Isc): 11.0A
• Temperature Coefficient of Pmax: –0.38% / °C
• Temperature Coefficient of Voc: –0.29% / °C
• Temperature Coefficient of Isc: +0.05% / °C
• Maximum System Voltage: 600V DC
• Max Series Fuse Rating: 15A
• Operating Temperature: –40°C to +85°C
• Nominal Operating Cell Temperature: 48 ± 2°C
• Efficiency: Approximately 16.5%

Mechanical / Physical

• Panel Type: Monocrystalline PERC cells
• Frame Material: Anodized aluminum with ETFE coating

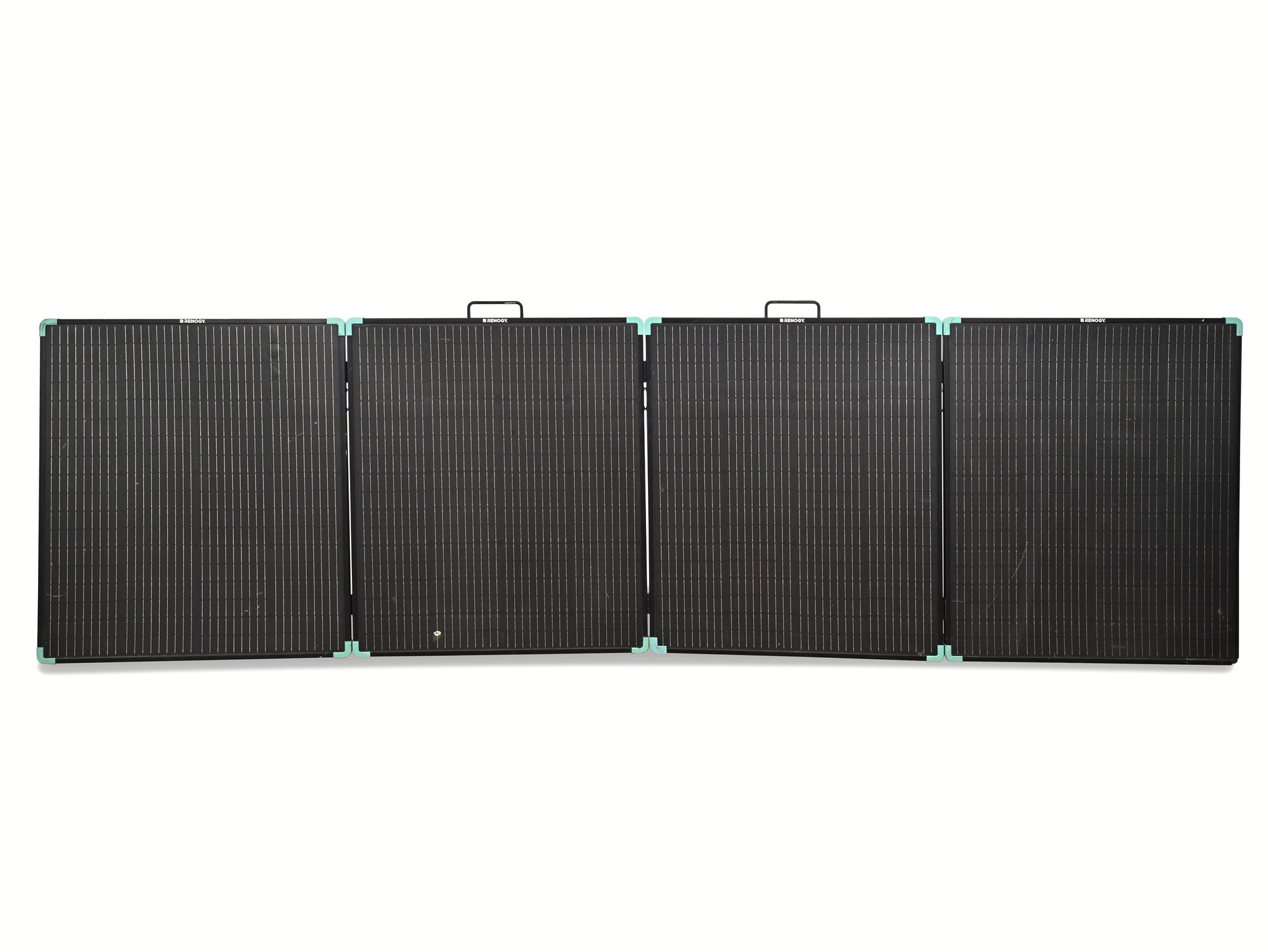

• Unfolded Dimensions: 2838 × 855 × 20 mm (111.7 × 33.7 × 0.79 in)

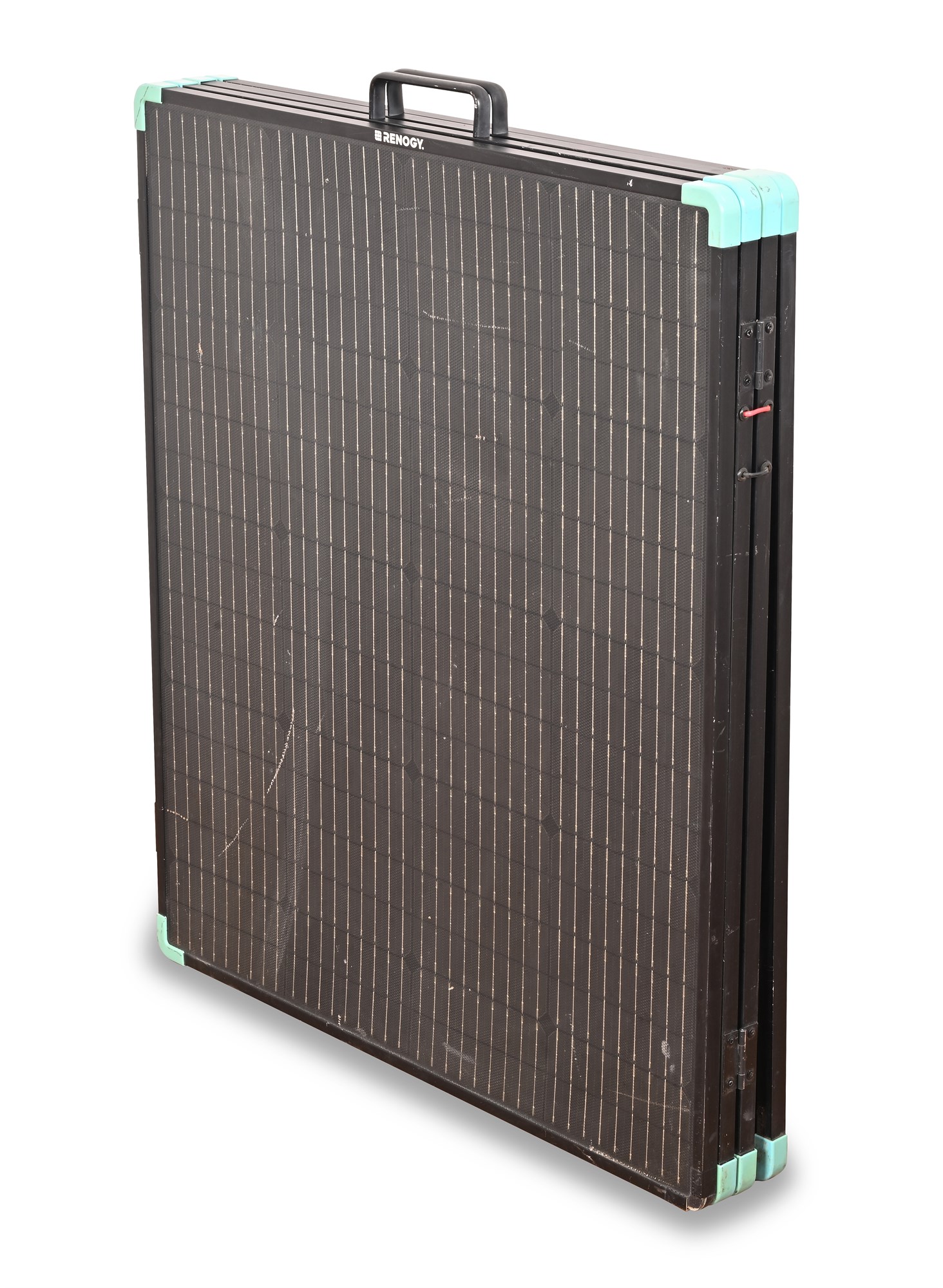

• Folded Dimensions: 708 × 855 × 80 mm (27.9 × 33.7 × 3.15 in)
• Weight: 13.7 kg (30.2 lbs)

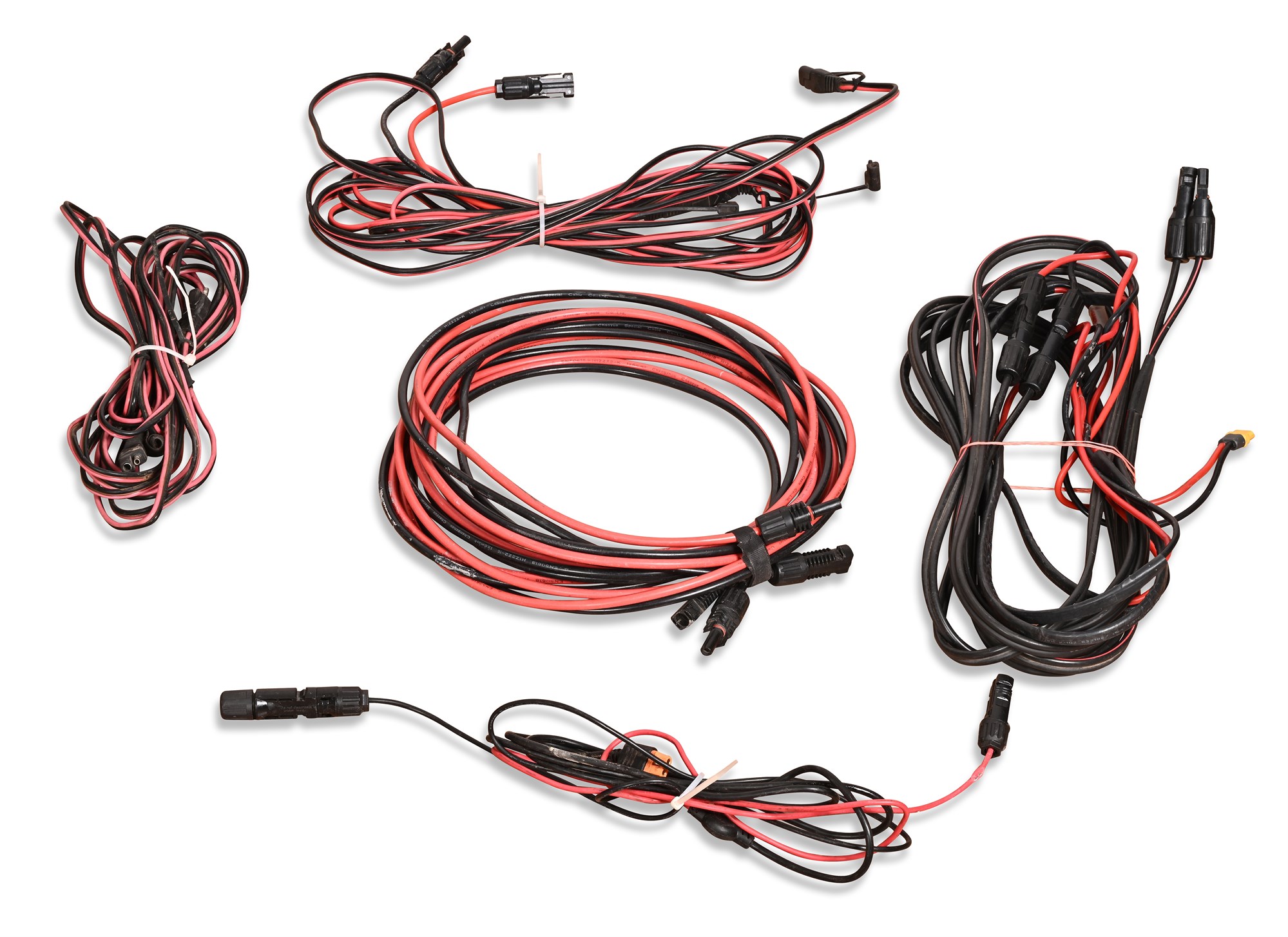

• Connectors: MC4-compatible
• IP Rating: IP67 (connectors and junctions)
• Construction: Reinforced edges, corner guards, and carry handle

Manufacturer Details

• Brand: Renogy
• Model: RSP400LSC
• Origin: Designed by Renogy, California, USA
• Warranty: 5-year materials/workmanship, 25-year power output guarantee

Condition:

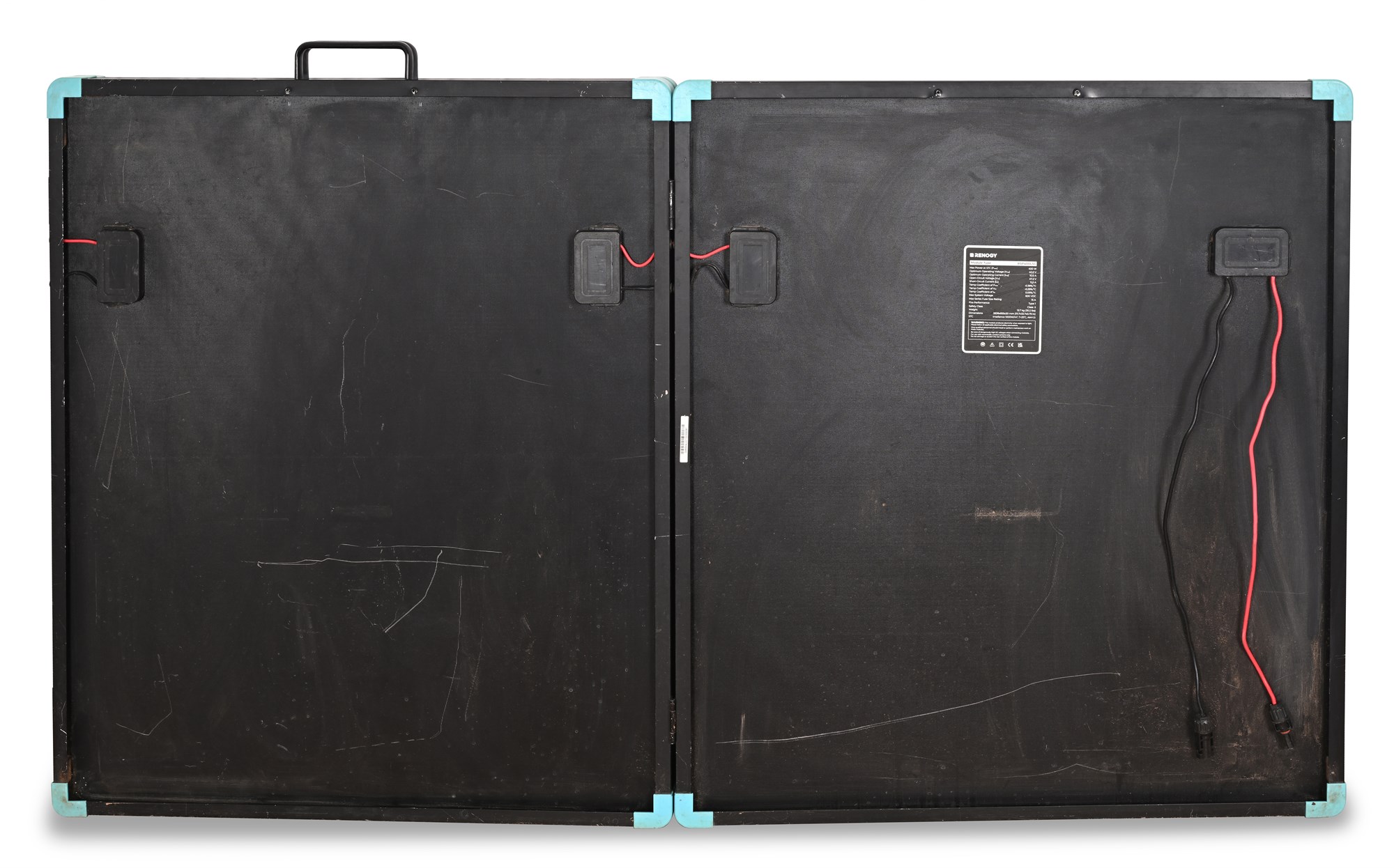

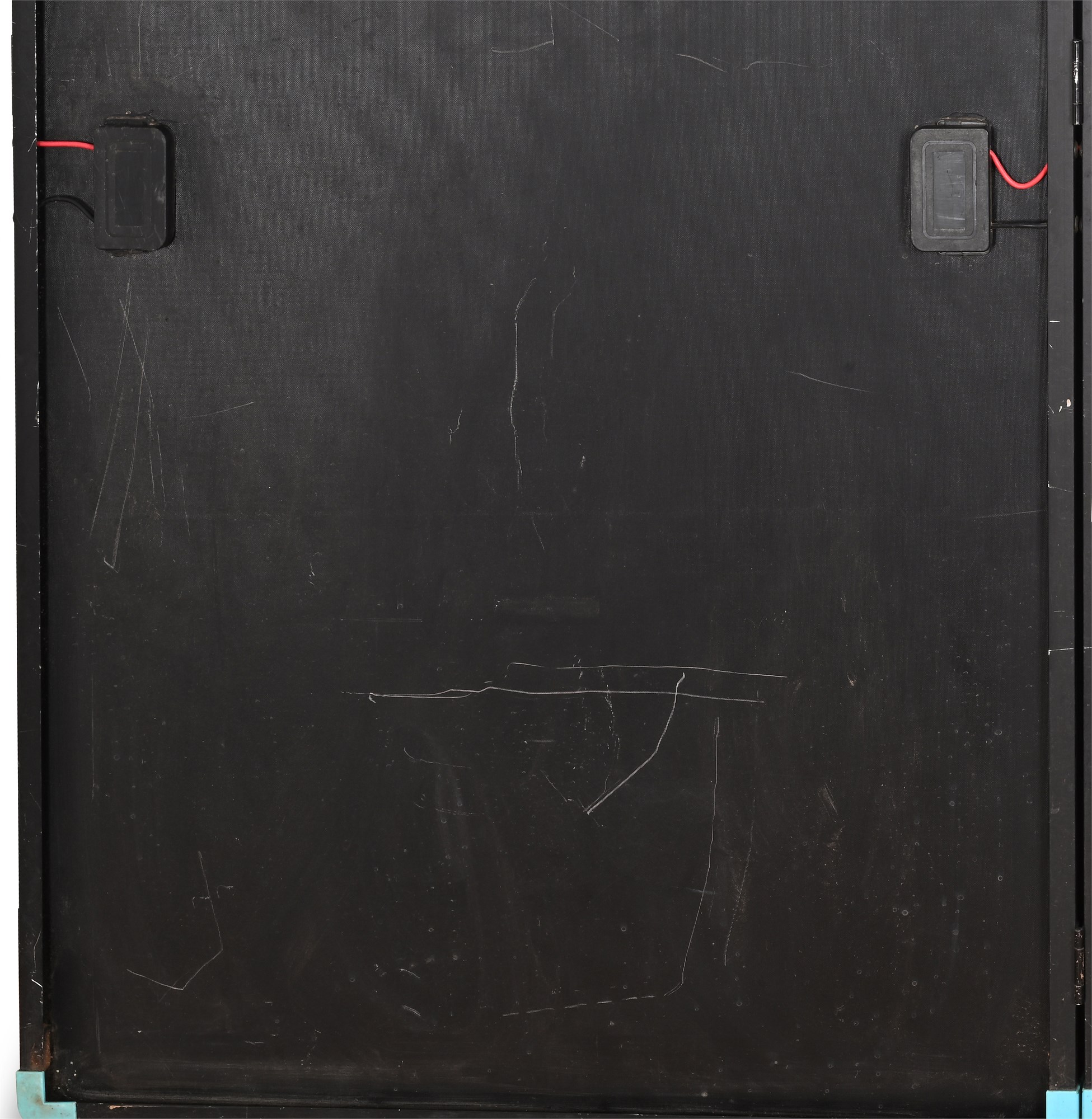

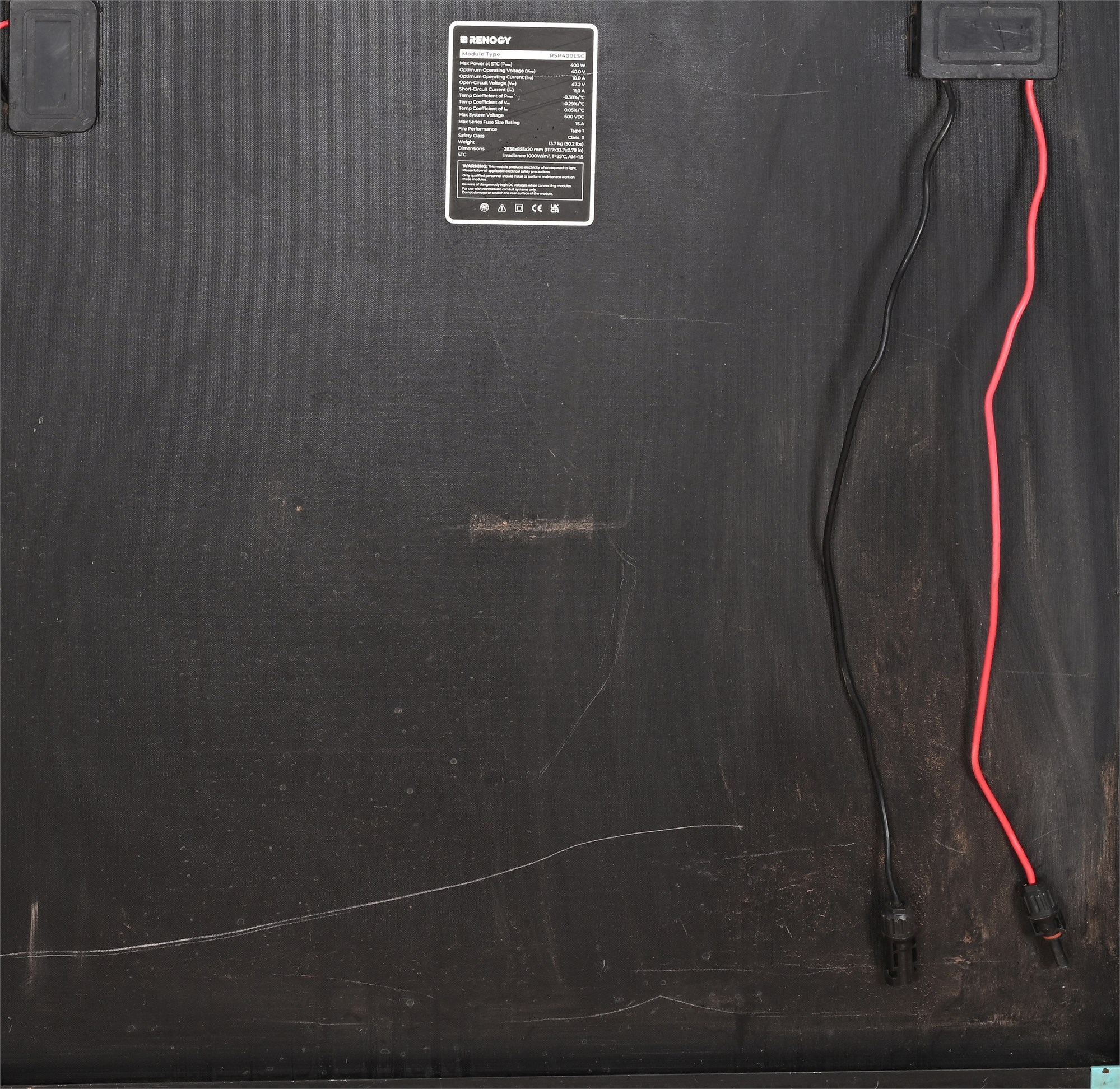

Fair condition overall. Fully functional and tested for power output. Shows some cosmetic imperfections and surface marks consistent with prior outdoor use, as shown. The original stands used to hold the panels at an angle are absent. All hinges, connectors, and panel segments remain intact and operational.

Dimensions:
Width (unfolded): approximately 112 inches
Weight: 30.2 lbs
