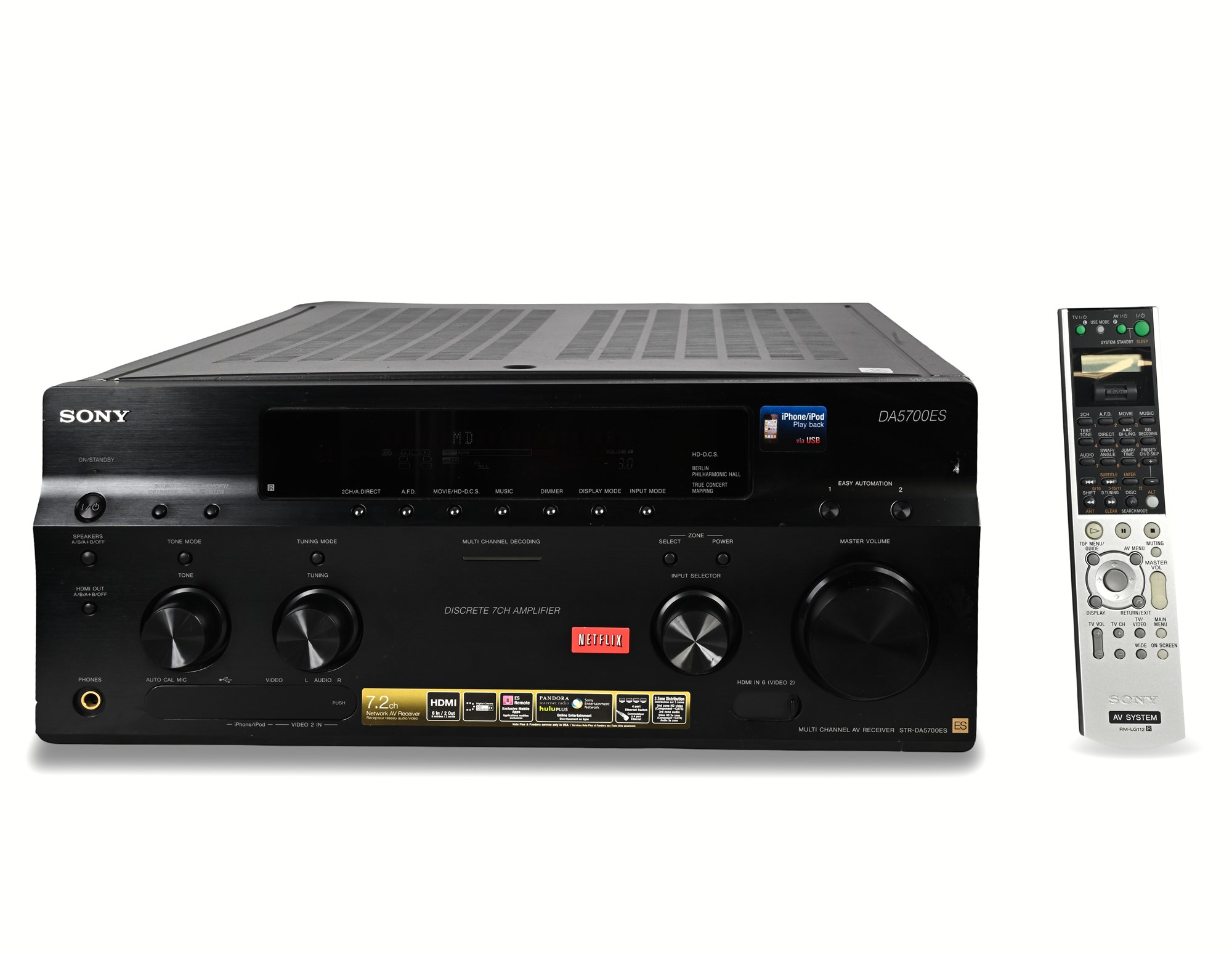

Sony® STR-DA5700ES 7.2 Ch AV Receiver w/ Remote – HDMI, 480W

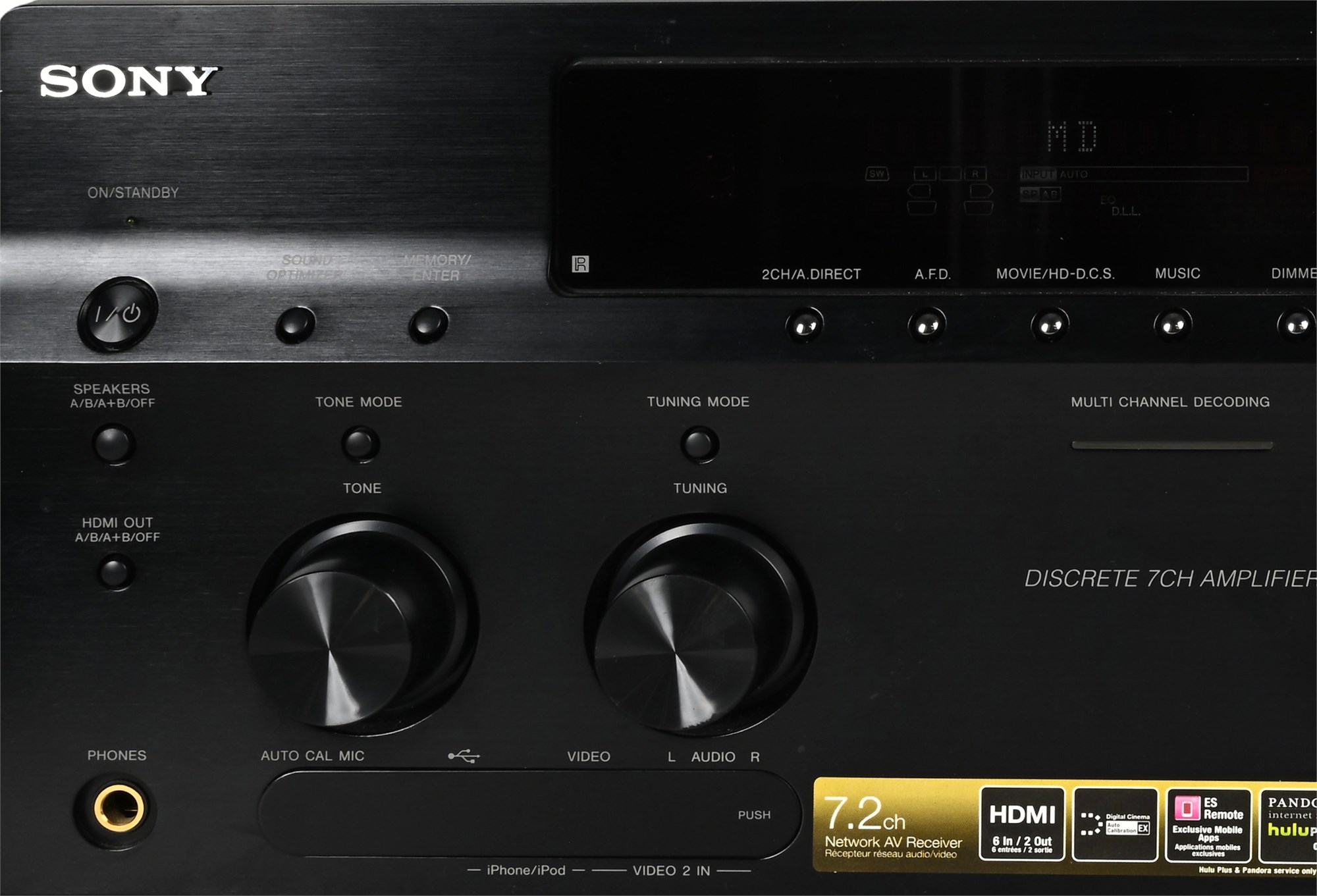

Sony STR-DA5700ES 7.2 Channel AV Receiver, part of Sony’s elite ES (Elevated Standard) series, designed for high-end home theater installations. Offering 7 discrete amplified channels and rated at approximately 130W per channel into 8Ω, it supports full HD audio decoding including Dolby TrueHD, DTS-HD Master Audio, and Sony’s proprietary HD-D.C.S. processing. Video performance is equally robust with Faroudja processing, 1080p upscaling, Deep Color, and 3D pass-through via HDMI.

Connectivity is extensive: 6 HDMI inputs (including a front-panel input), 2 HDMI outputs, component and composite video, optical and coaxial digital audio, phono input, multi-channel analog input, and pre-outs. Networking features include a built-in Ethernet hub with DLNA client support, streaming services (Netflix, Pandora, Hulu Plus, Slacker, internet radio), and smartphone control apps. Auto-calibration is handled by Sony’s DCAC EX system with phase matching and speaker relocation.

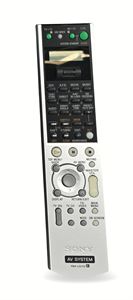

This unit is accompanied by its original Sony remote control and is built in a robust chassis with advanced shielding, making it a sought-after choice for audiophiles and integrators.

Specifications:
Amplification

• Channels: 7.2
• Rated Output: ~130W per channel (8Ω, 20Hz–20kHz, 0.09% THD, 2 channels driven)
• Discrete 7-channel amplifier design
• Impedance: 4–16Ω compatible
• Frequency Response: 10Hz–100kHz
• Signal-to-Noise Ratio: 100dB (line), 90dB (phono)
• THD: 0.0009%

Audio Decoding

• Dolby: TrueHD, Digital Plus, Digital EX, Pro Logic I/II/IIx/IIz
• DTS: DTS-HD Master Audio, DTS-ES Discrete/Matrix, DTS 96/24, DTS Neo:X
• Sony: HD-D.C.S., DSD playback

Video Features

• 6 HDMI inputs / 2 HDMI outputs (ARC supported)
• Component video: 2 in / 1 out
• Composite video: 5 in / 1 out
• Video Processing: Faroudja DCDi Cinema upscaling, 1080p/24p, Deep Color, x.v.Color, 3D pass-through

Networking & Streaming

• Built-in Ethernet switch (4-port hub)
• Supported Services: Netflix, YouTube, Hulu Plus, Pandora, Slacker, internet radio
• DLNA certified – supports MP3, AAC, WMA9, LPCM, FLAC, JPEG, MPEG-1/2/4, WMV9, AVCHD, XviD

Calibration & Control

• Digital Cinema Auto Calibration EX (DCAC EX) with automatic phase matching and speaker relocation
• RS-232C control, 3 × 12V triggers, IR in/out
• Front USB input for iPod/iPhone
• Control apps available for iOS/Android

Tuner

• AM/FM tuner with 30 presets each
• RDS support
• Sirius-ready

Condition:

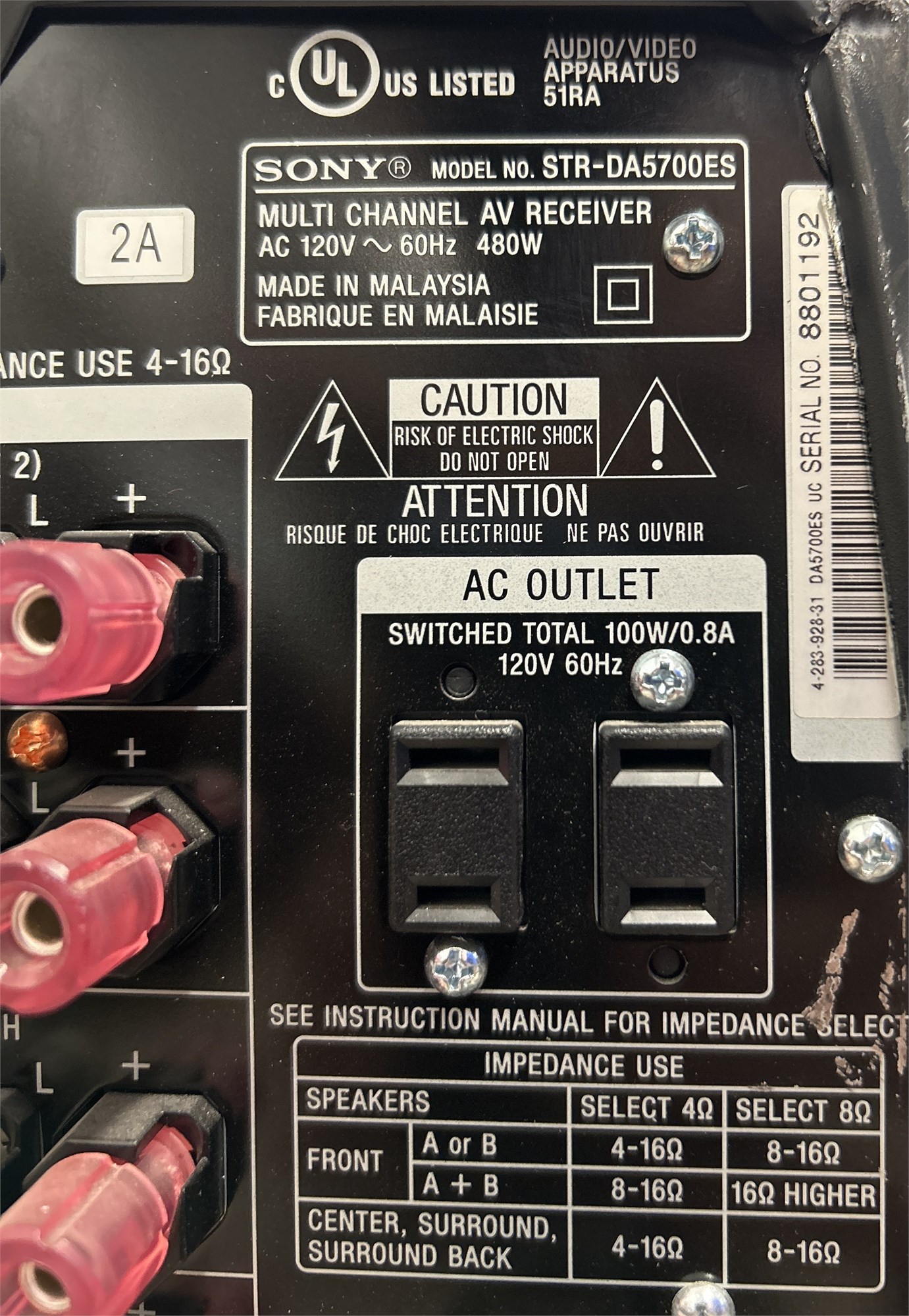

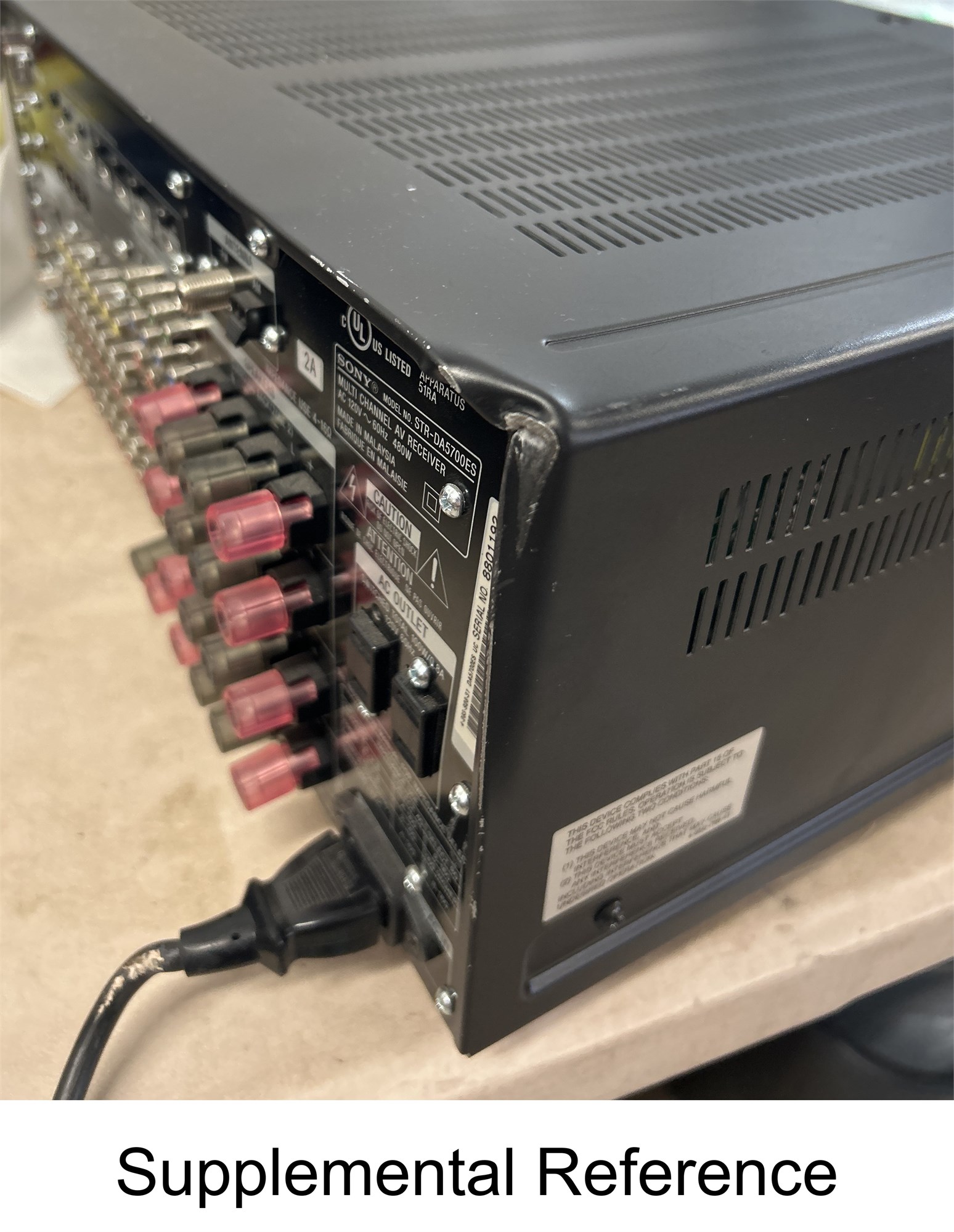

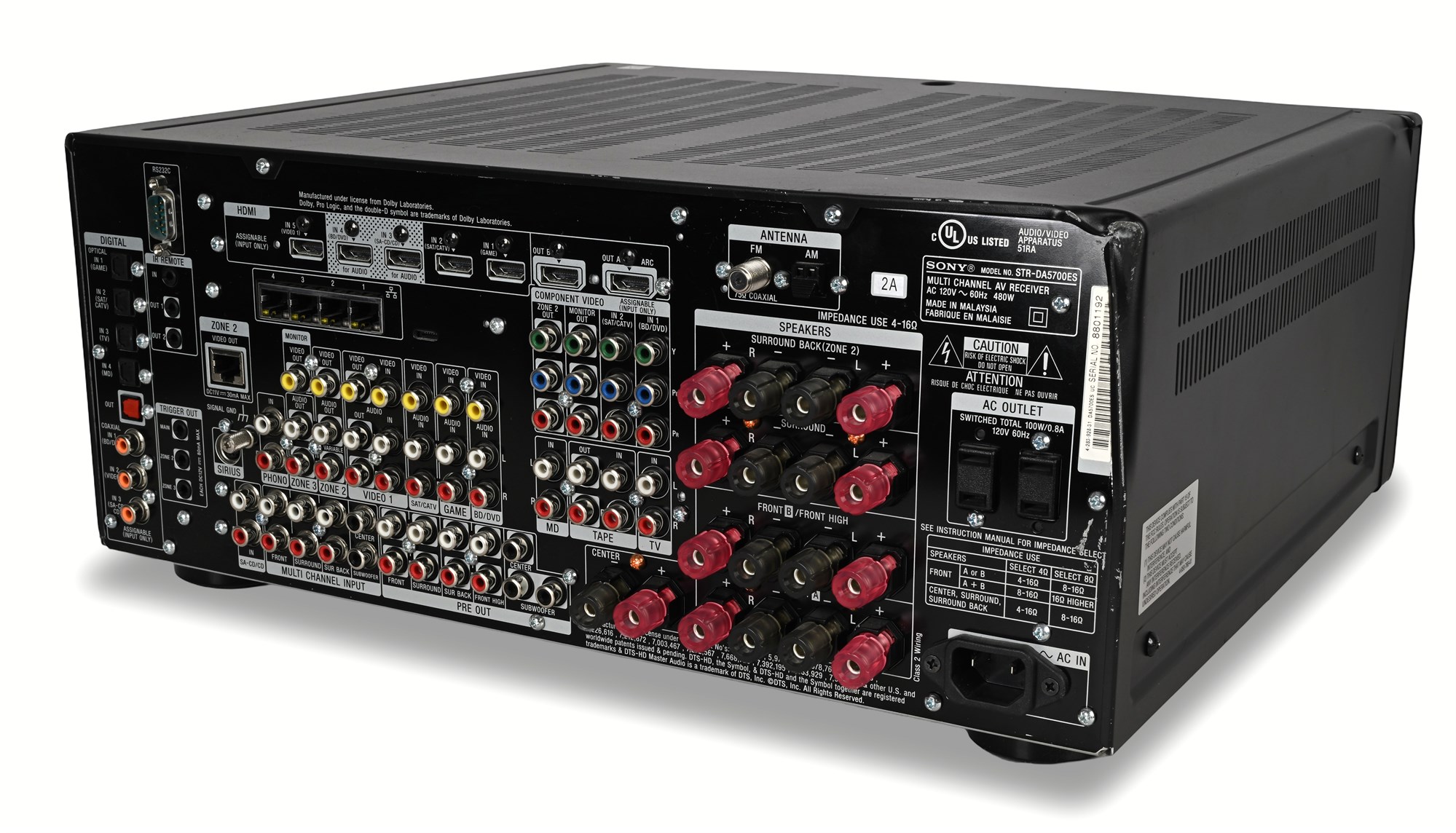

Good overall condition with some cosmetic wear. The left rear corner shows a prominent indentation from prior shipping damage, and there is a minor bump on the exterior. Unit was removed from a working environment and remains functional. Please review photos closely for details.

Dimensions & Weight:
Dimensions: Approx. 7.25 x 17 x 17 in (H × W × D)
Weight: approx. 38 lbs (17.7 kg)
