Craftsman 15½" Drill Press 113.21371 – Belt Drive, Lighted, Adjustable Table

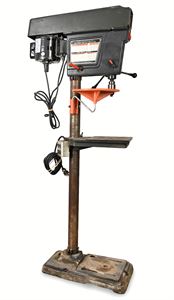

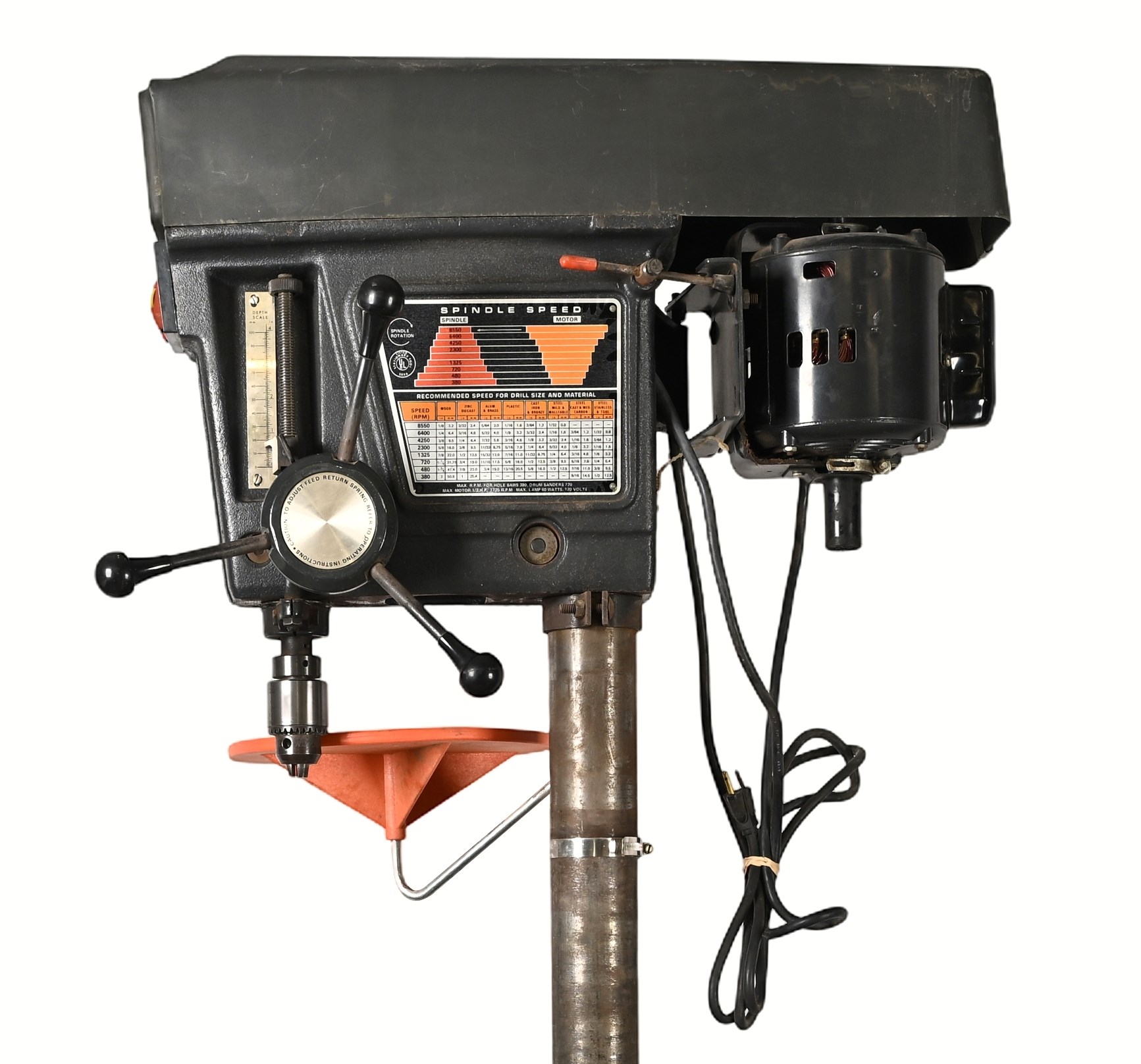

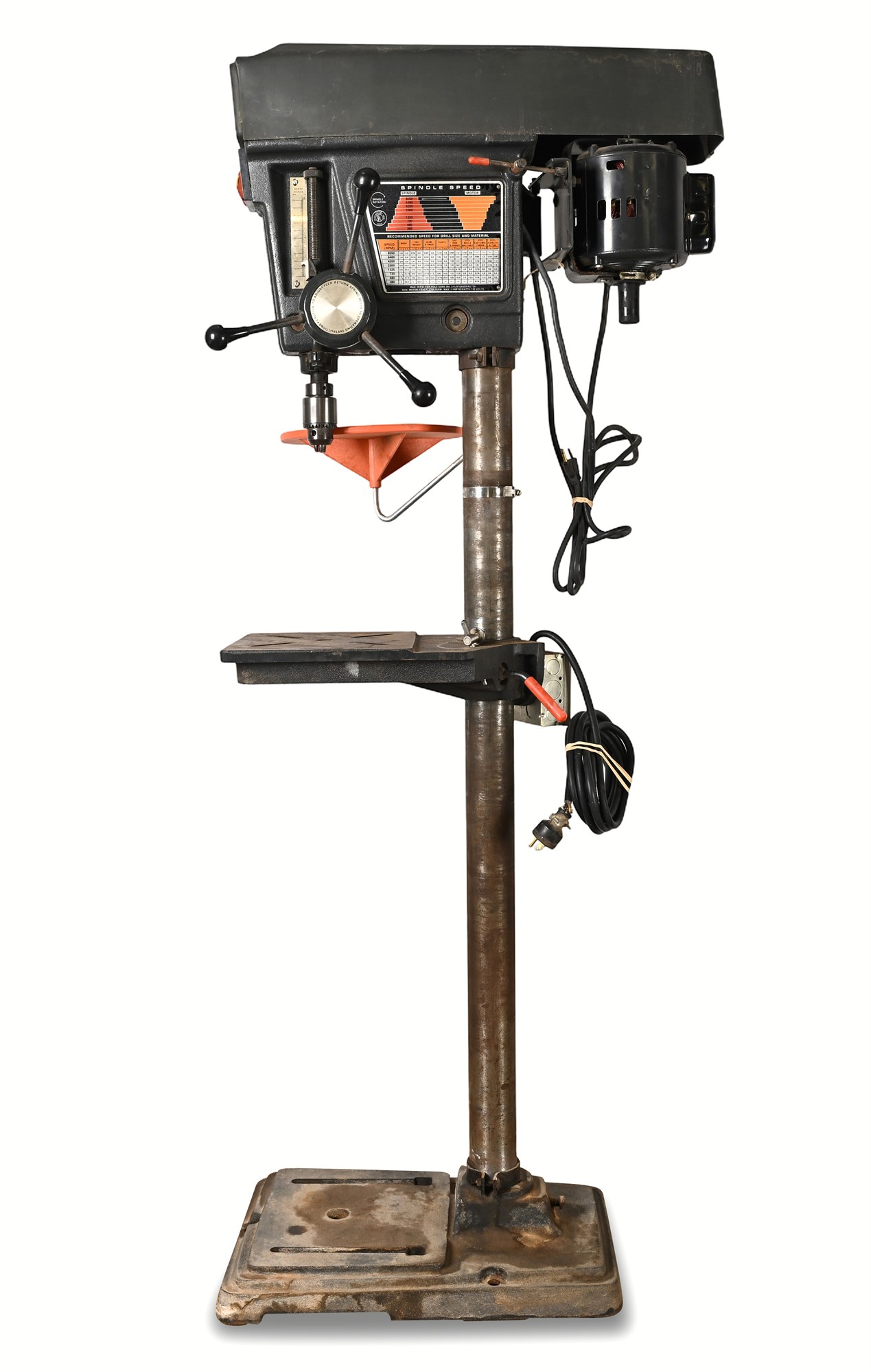

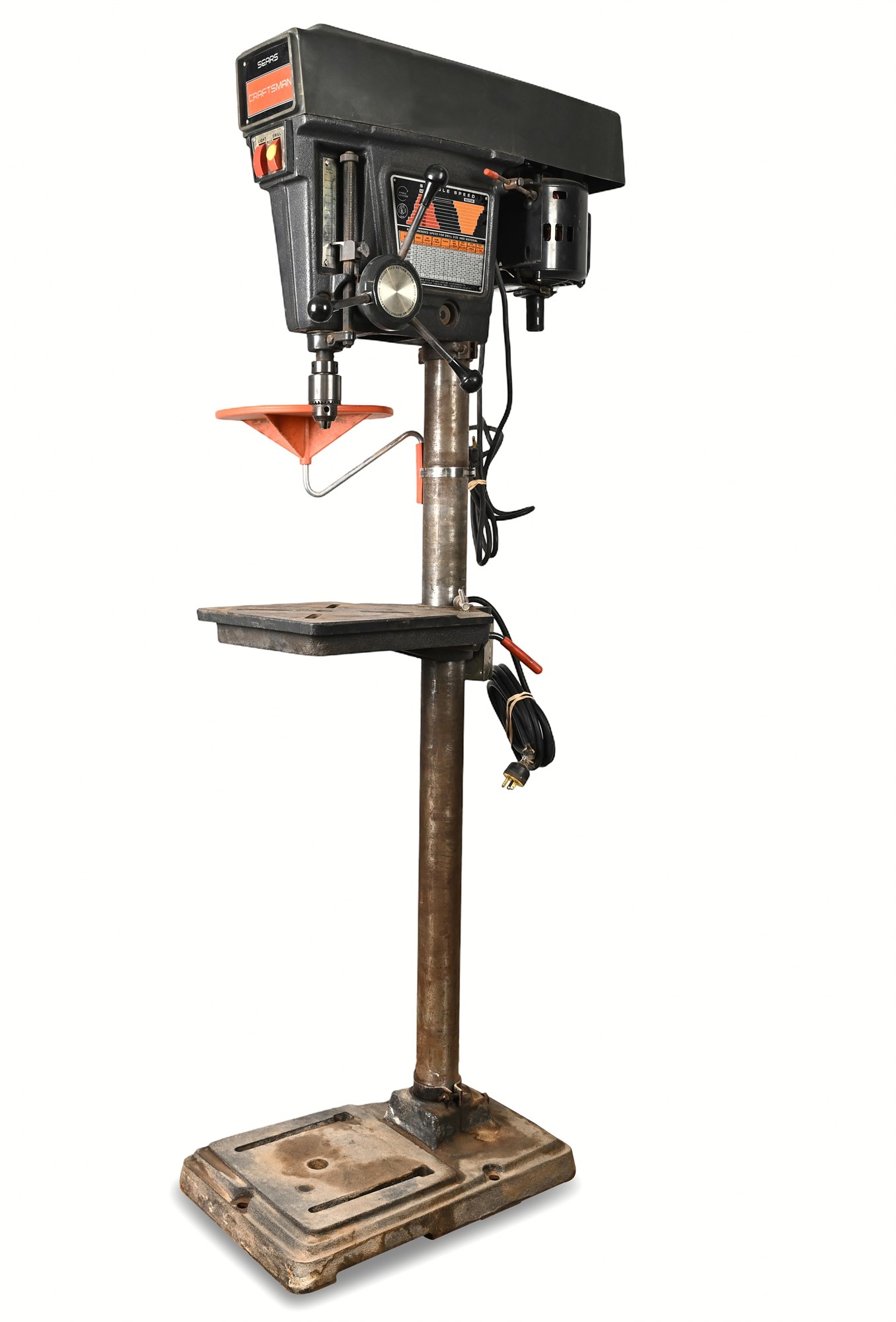

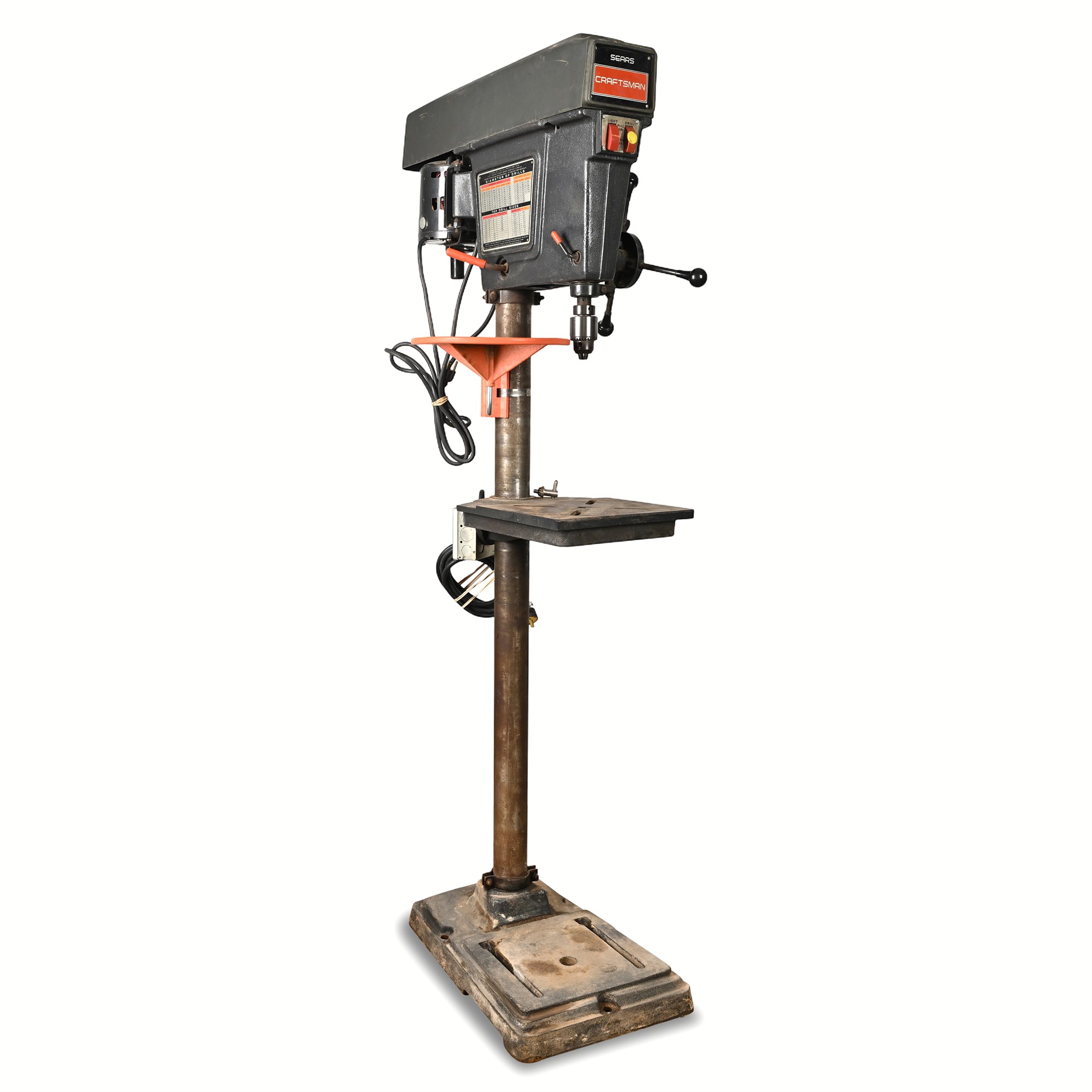

This vintage Craftsman 15½" floor-standing drill press, model 113.21371, is a reliable American-made machine produced by Sears, Roebuck and Co. during the mid-to-late 20th century. Powered by a ½ HP, 1725 RPM capacitor-start motor (model 113.12550), this belt-driven press delivers steady torque across a 12-speed range from 380 to 8550 RPM—ideal for materials ranging from wood and plastic to cast iron and stainless steel.
Built with heavy cast iron components and a steel column, this model features an adjustable-height table, built-in work light, and integrated reference charts for spindle speeds and tap drill sizes. A clearly labeled pulley speed chart aids in fast setup for each material and bit size. The machine includes its original chuck key and operates with a standard 115V power supply. The drill press stands out for its durability, precision, and straightforward mechanics, making it a dependable choice for both home workshops and restoration collectors.\
Specifications & Details:

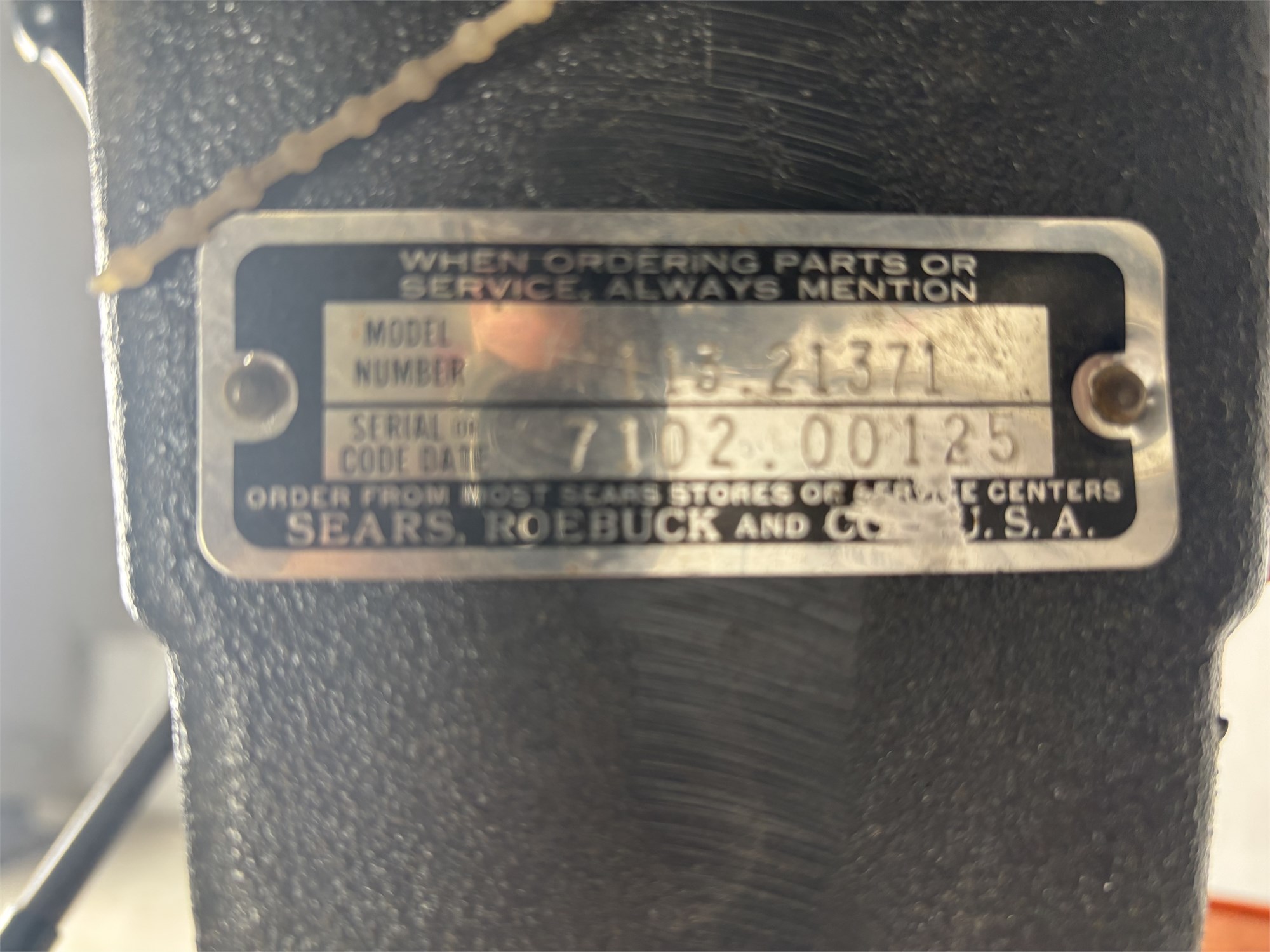

Drill Press Model: 113.21371

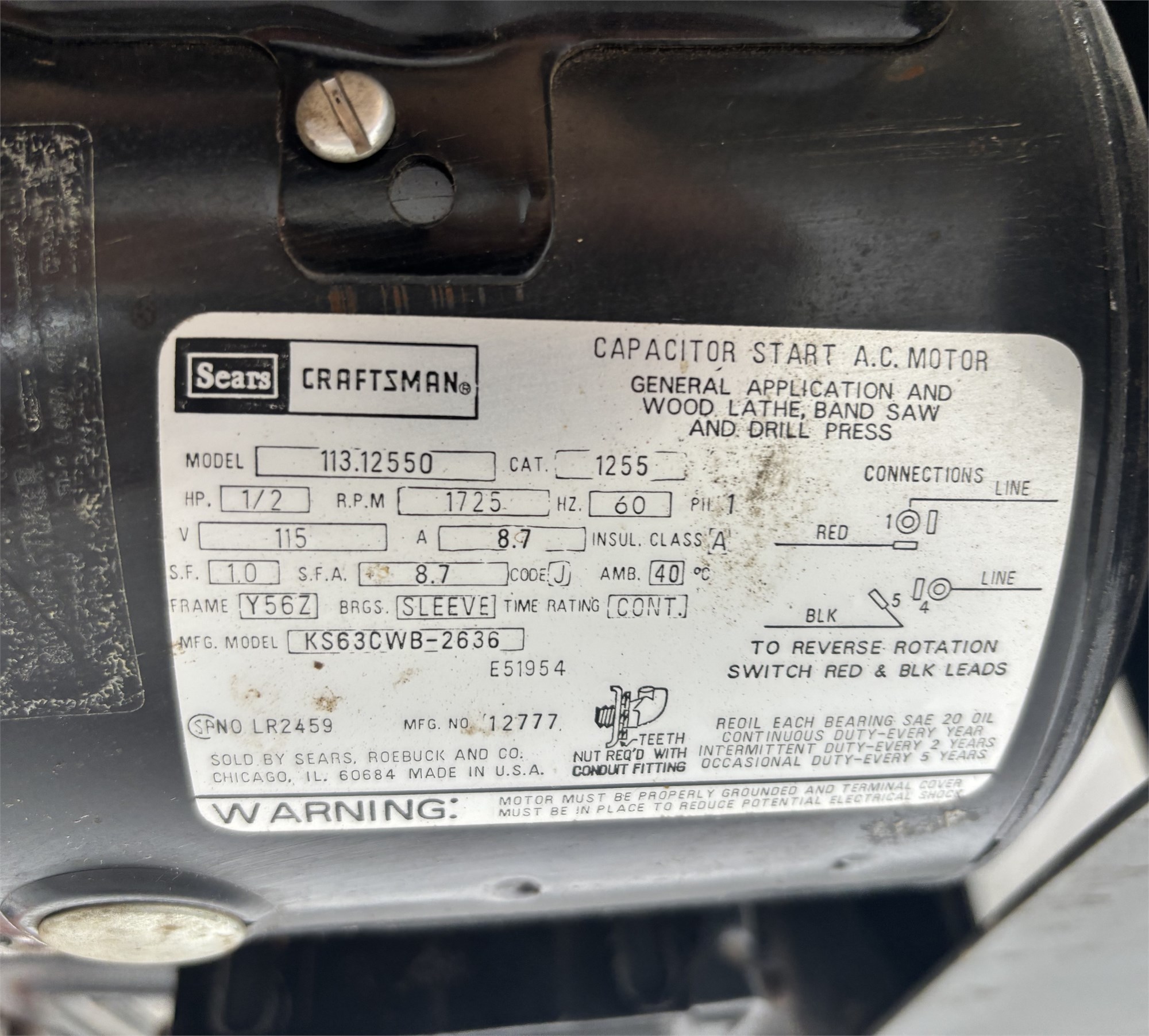

Motor Model: 113.12550
Motor Type: Capacitor-start A.C., ½ HP, 1725 RPM, single phase
Voltage: 115V, 8.7A, 60 Hz

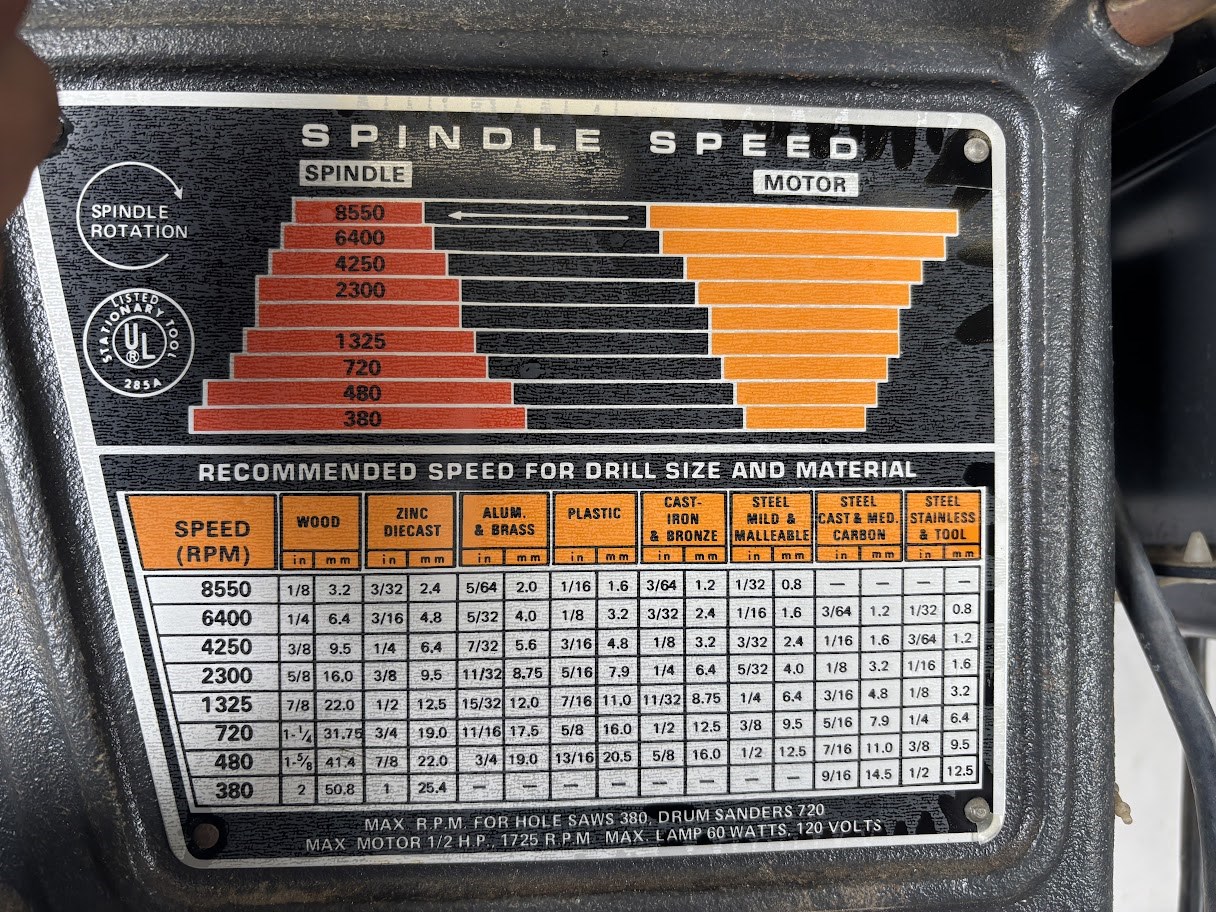

Spindle Speeds: 12 speeds, ranging from 380 to 8550 RPM

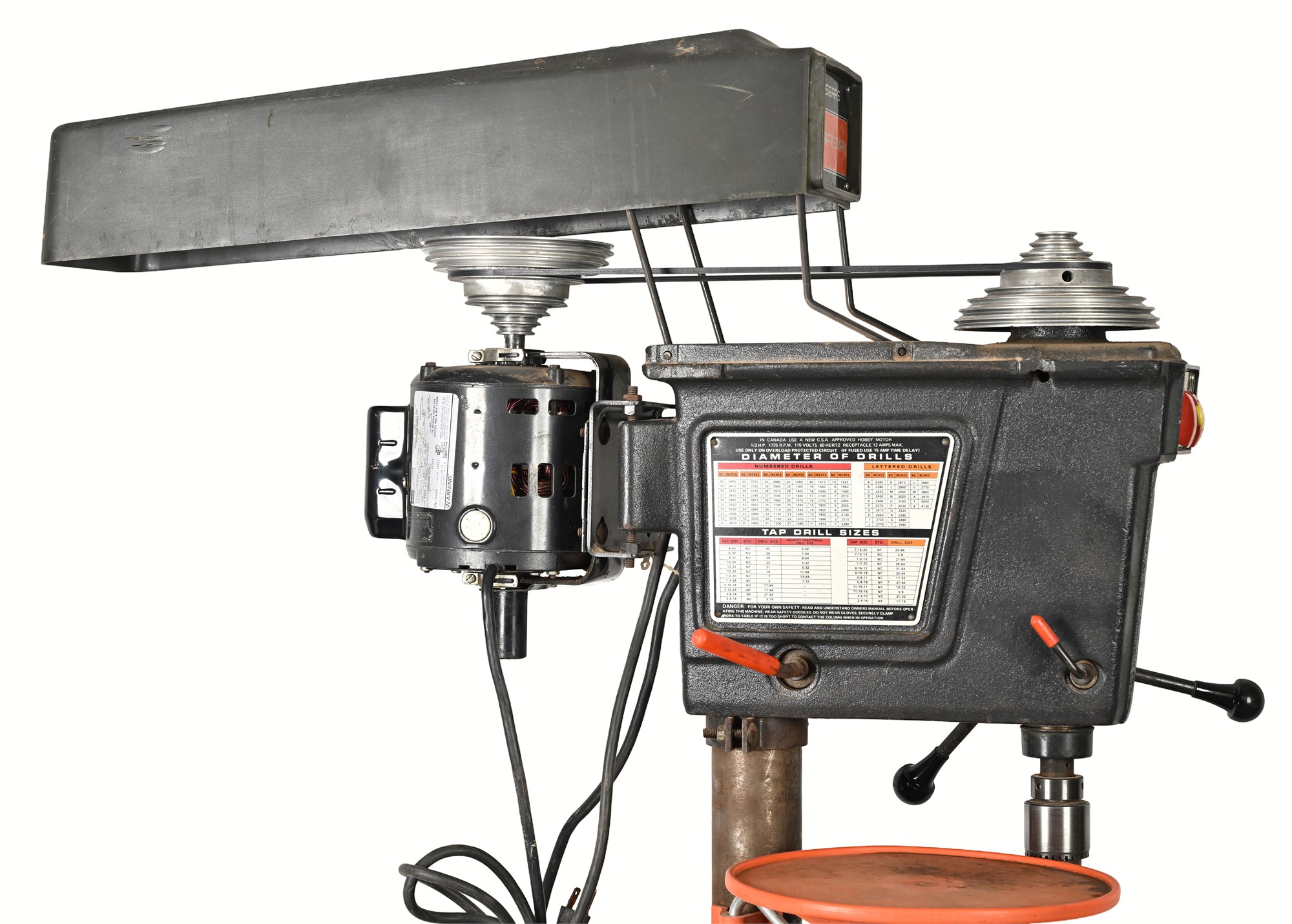

Drive Type: Belt and pulley system
Spindle Travel: Approximately 3¼ inches (not explicitly shown, standard for this type)
Table: Adjustable height, rotates and tilts

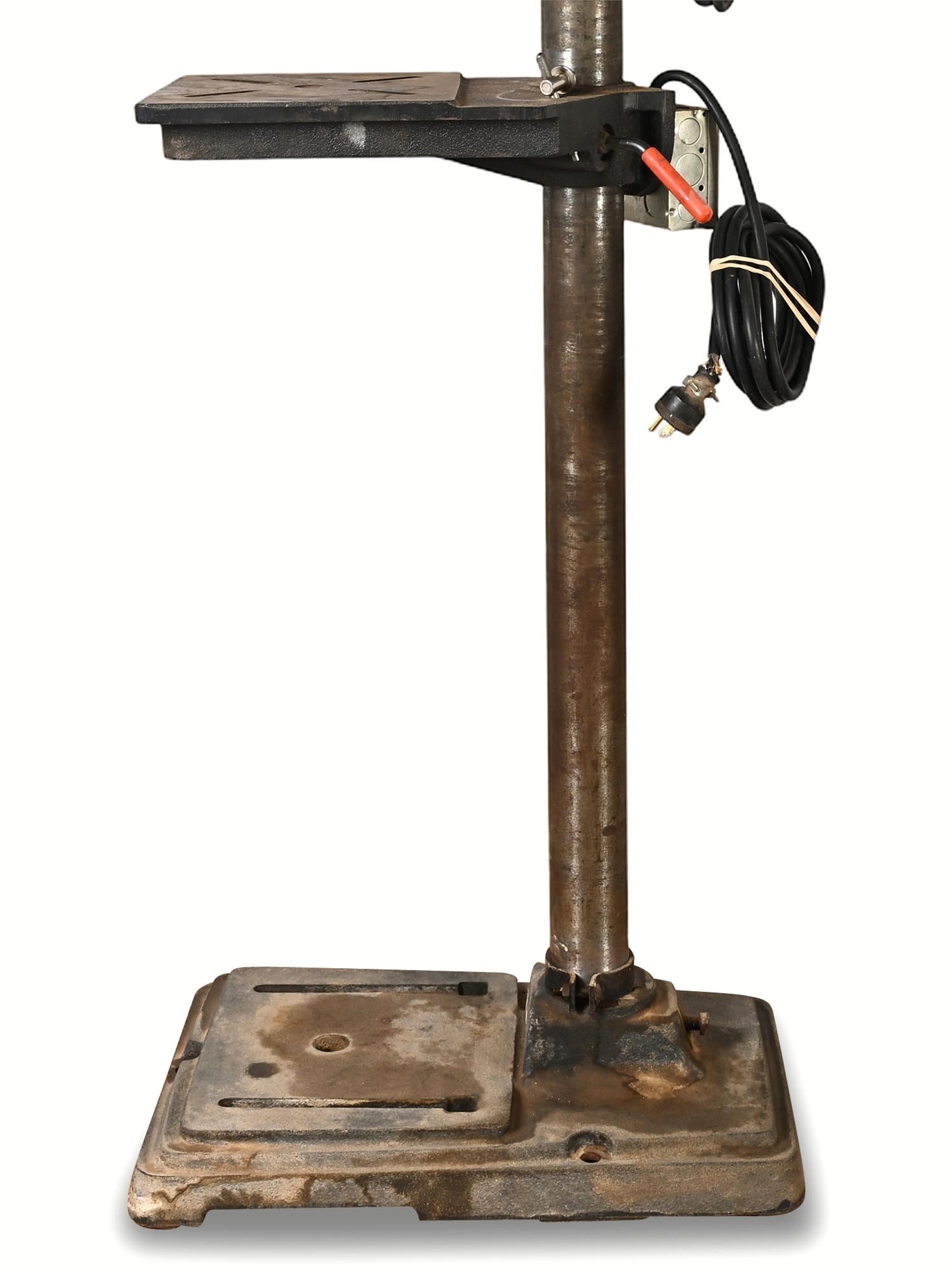

Construction: Cast iron base and table, steel column

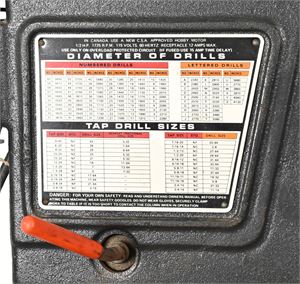

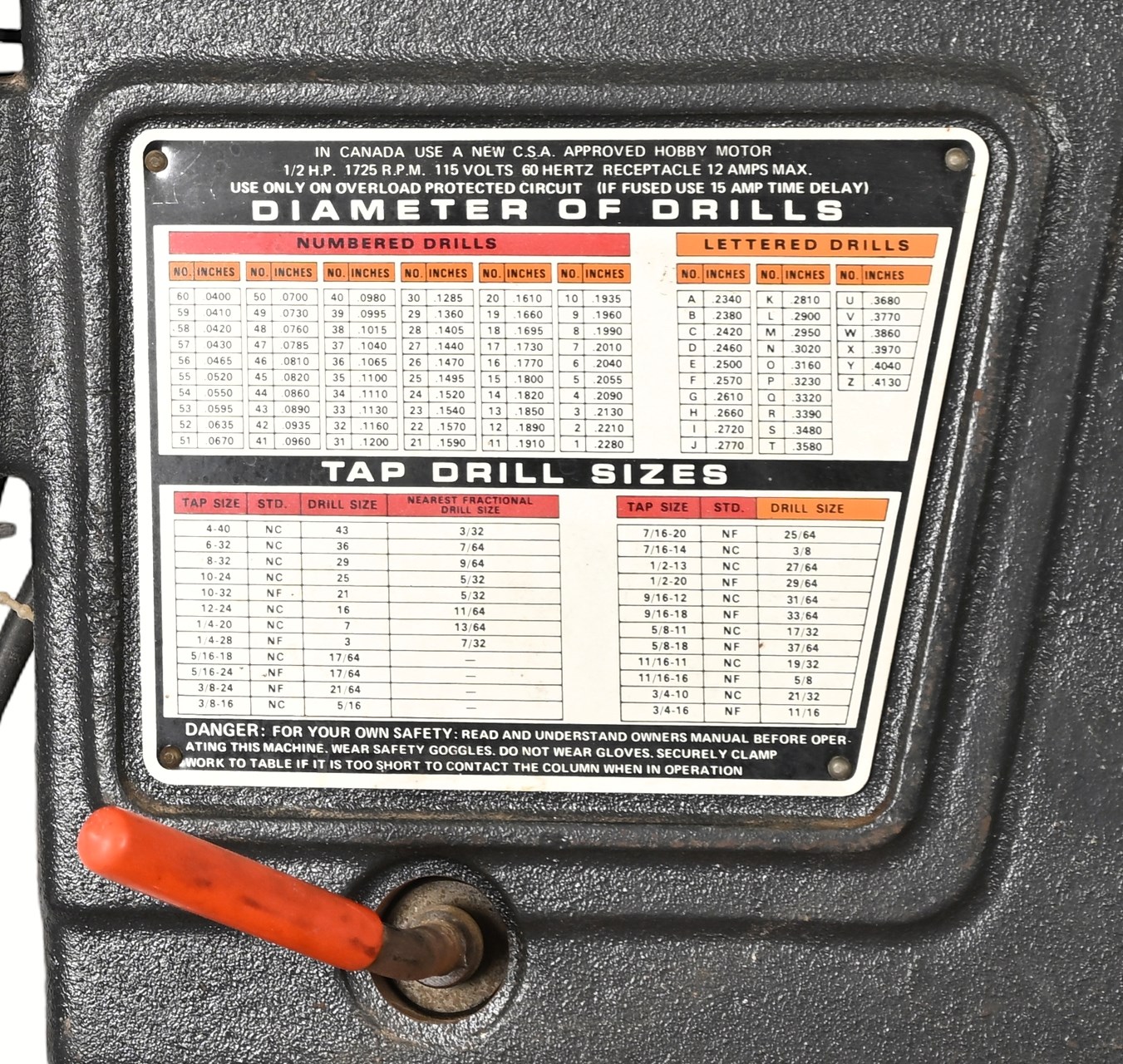

Additional Features: Built-in work light, original chuck key, detailed speed and drill size reference plates
Made in USA by Sears, Roebuck and Co.
Condition:

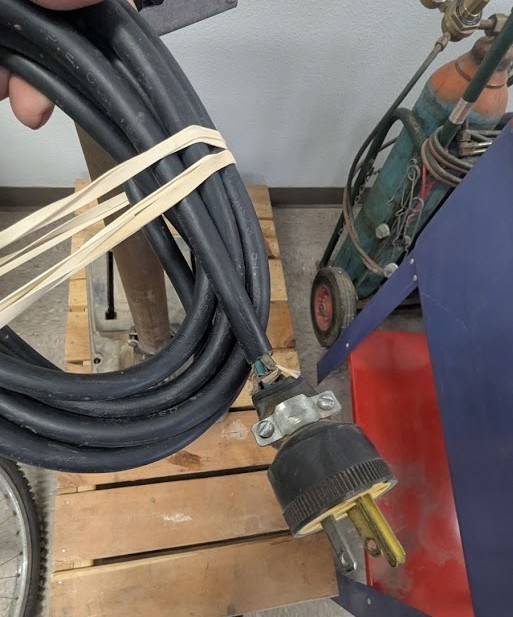

In good, fully functional condition and tested. The machine powers on and operates correctly across all speed settings. Shows normal signs of age and use, including some surface rust on the base and column. The power cord is intact but has fraying near the plug, which may warrant replacement. The built-in work light functions as intended. Chuck key is included.
Dimensions:
67 x 14 x 25 inches (Height x Width x Depth)
